Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2028TXG13-DCSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
2,773 |
|
Datasheet |
M | Box | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2028TXG13-FCSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
3,995 |
|
Datasheet |
M | Box | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

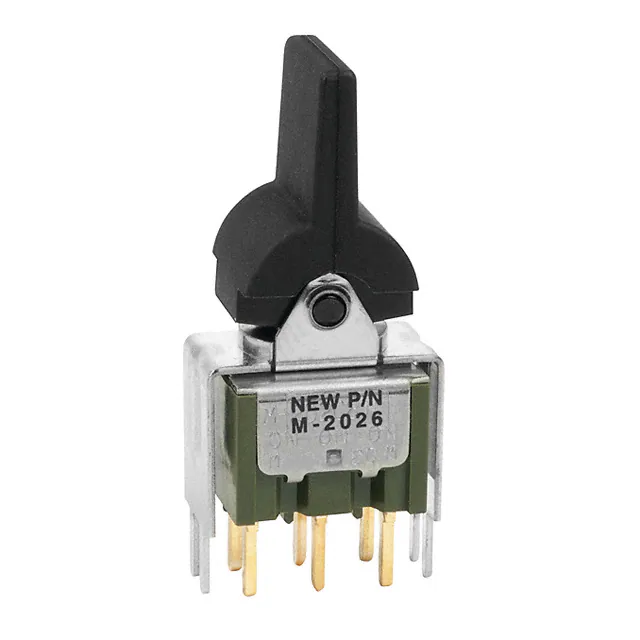

M2026TXG13-GASWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
1,171 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2026TXG13-DASWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
3,845 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
M2027TXG30-DESWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
4,425 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Yellow | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2027TXG30-DASWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
4,415 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2027TXG30-DCSWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
3,797 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2027TXG30-ECSWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
4,744 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
MLW3023SWITCH ROCKER DPDT 5A 125V NKK Switches |
2,713 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3023/CULSWITCH ROCKER DPDT 5A 125V NKK Switches |
1,963 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
