Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2026TXG13SWITCH ROCKER SP3T 0.4VA 28V NKK Switches |
2,448 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
JWL22BCA-ASWITCH ROCKER DPDT 16A 125V NKK Switches |
3,671 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
M2023TJG01-FA-1ASWITCH ROCKER DPDT 0.4VA 20V NKK Switches |
2,012 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2023TJG01-FH-1HSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
4,361 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
WR13BSSWITCH ROCKER SPDT 15A 125V NKK Switches |
2,047 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
M2013TJW01-FA-3A-CCSWITCH ROCKER SPDT 6A 125V NKK Switches |
4,850 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Red | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|
|
M2013TJW01-FA-3A-FFSWITCH ROCKER SPDT 6A 125V NKK Switches |
1,655 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Green | 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.90mm | -30°C ~ 85°C | CSA, UL |
|

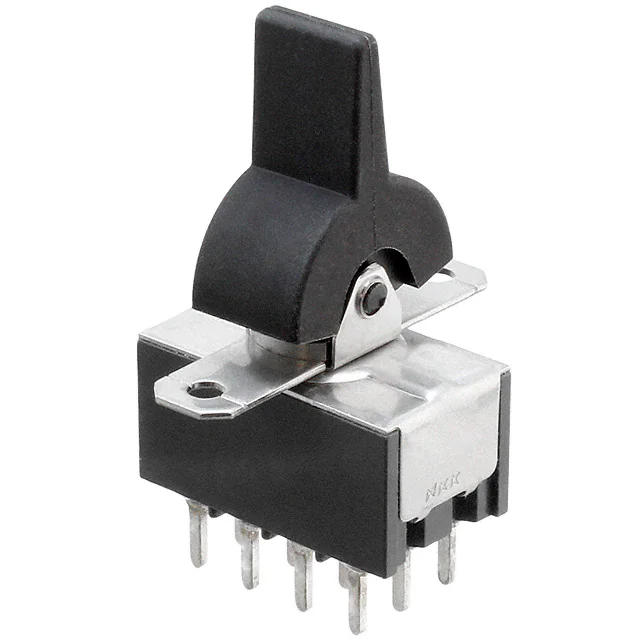

M2043TNW03-EASWITCH ROCKER 4PDT 6A 125V NKK Switches |
2,537 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
WR12AT/CULSWITCH ROCKER SPDT 15A 125V NKK Switches |
4,727 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
M2018TJG02-GA-2A-FSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
1,670 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
