Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLW3022-F-LF-2HSWITCH ROCKER DPDT 5A 125V NKK Switches |
4,359 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
MLW3022-F-SF-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
1,711 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Sculptured - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3023-E-SE-2ASWITCH ROCKER DPDT 5A 125V NKK Switches |
4,590 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Sculptured - Illuminated | Yellow | No Marking | LED, Yellow | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
SW3832/USWITCH ROCKER 3PDT 30A 125V NKK Switches |
1,643 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3832/ASWITCH ROCKER 3PDT 30A 125V NKK Switches |
2,073 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3832/A/CULSWITCH ROCKER 3PDT 30A 125V NKK Switches |
4,437 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
A12K1H-DASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,912 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

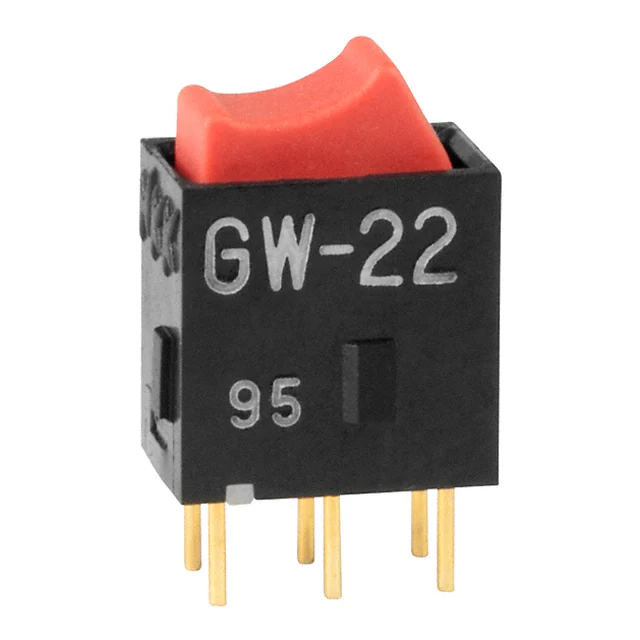

GW22RCPSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
2,692 |
|
Datasheet |
GW | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

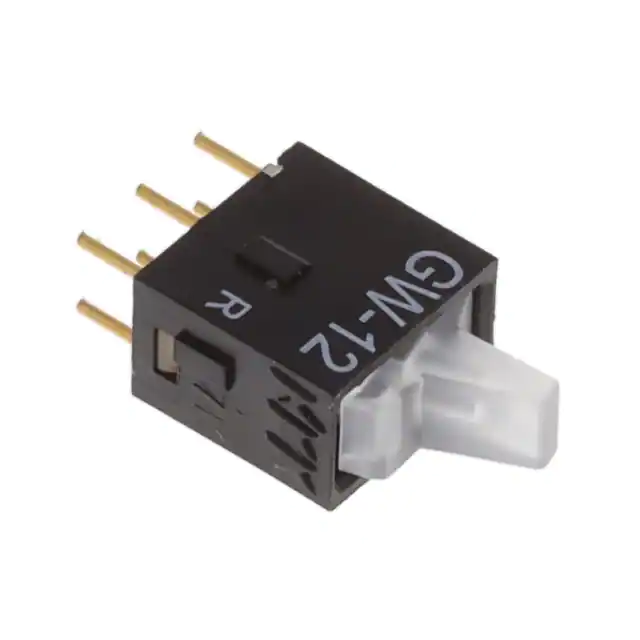

GW12LJPCSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,162 |
|
Datasheet |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Red | 2 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
|
JWM11RA1A/UCV-WLSWITCH ROCKER SPST 10A 125V NKK Switches |
3,379 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Wire Leads | Dust Proof | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
