Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

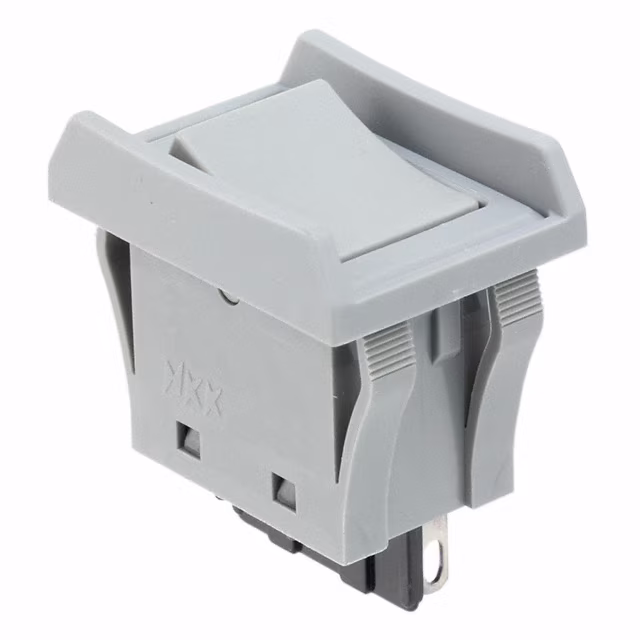

JWM11BHH-HSWITCH ROCKER SPST 10A 125V NKK Switches |
2,537 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Gray | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
MN12TNW01SWITCH ROCKER MINI FLAT FRAME NKK Switches |
4,210 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | No Marking | - | - | Solder Lug | - | - | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | UL |
|
|
MN12TYW01FLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
2,283 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN12TNW01-DASWITCH ROCKER MINI FLAT FRAME NKK Switches |
2,932 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | UL |
|
|
MN12TNW01-DCSWITCH ROCKER MINI FLAT FRAME NKK Switches |
4,239 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | UL |
|
|
MN13TNW01SWITCH ROCKER MINI FLAT FRAME NKK Switches |
1,882 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | No Marking | - | - | Solder Lug | - | - | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | UL |
|
|
MN12TXW13SWITCH ROCKER MINI PC MOUNT NKK Switches |
1,370 |
|
- |
M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
MN12TYW01-JCFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
1,032 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN12TYW01-JAFLAT FRAME MOUNT MINIATURE ROCKE NKK Switches |
1,132 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN13TNW01-EASWITCH ROCKER MINI FLAT FRAME NKK Switches |
3,311 |
|
- |
M | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | UL |
