Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2029TXG15-DASWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
1,317 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

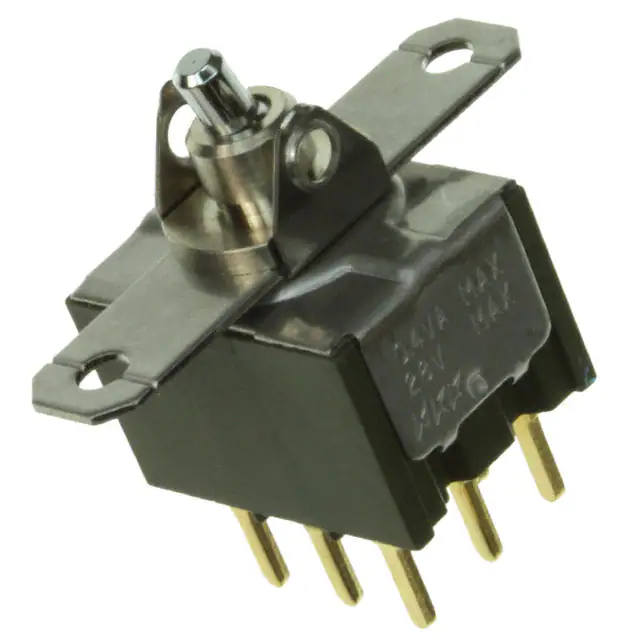

M2032TNG03SWITCH ROCKER 3PDT 0.4VA 28V NKK Switches |
4,523 |
|
- |
M | Bulk | Obsolete | Panel Mount, Flange | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2032TXG30-DCSWITCH ROCKER 3PDT 0.4VA 28V NKK Switches |
1,663 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2043TYW01-JASWITCH ROCKER 4PDT 6A 125V NKK Switches |
1,748 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | 4PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2046TYG01-JASWITCH ROCKER DP3T 0.4VA 28V NKK Switches |
2,751 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | DP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2112NCFW01SWITCH ROCKER SPDT 6A 125V NKK Switches |
3,509 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green/Red | 1.7, 2 VDC | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 55°C | CSA, UL |
|
|
M2112PCW01-CSWITCH ROCKER SPDT 6A 125V NKK Switches |
4,296 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Red | 1.9 VDC | Solder Lug | - | - | Rectangular - 15.90mm x 13.10mm | -25°C ~ 70°C | CSA, UL |
|
|
M2T12TXG13-FESWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
1,952 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Yellow | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2T12TXG30SWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,873 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T12TXW41-FHSWITCH ROCKER SPDT 6A 125V NKK Switches |
4,509 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
