Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLW3022-12-DD-2ASWITCH ROCKER DPDT 5A 125V NKK Switches |
1,232 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Orange | No Marking | Incandescent, Orange | 12 VAC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|

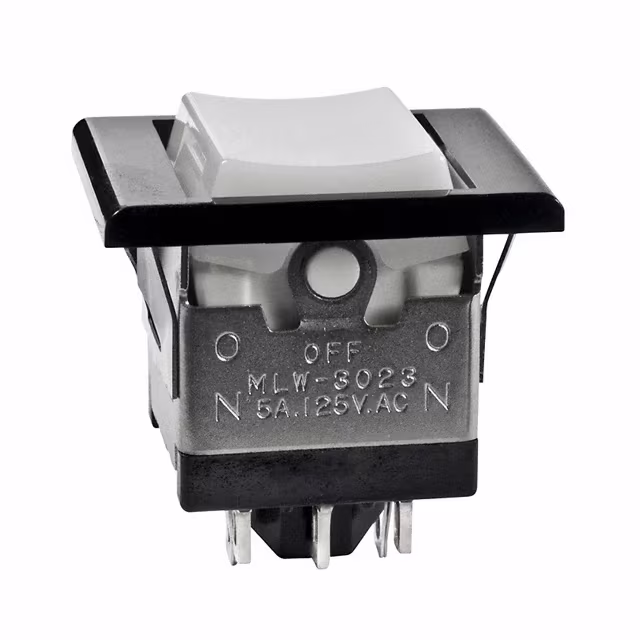

MLW3023-12-RB-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
1,585 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | Incandescent, White | 12 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3023-28-RD-2ASWITCH ROCKER DPDT 5A 125V NKK Switches |
3,231 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Orange | No Marking | Incandescent, Orange | 28 VAC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
MLW3028-00-PC-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
2,402 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
P2011N-DASWITCH ROCKER SPST 10A 125V NKK Switches |
1,314 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 85°C | CSA, UL, VDE |
|
|
P2013NSWITCH ROCKER SPDT 10A 125V NKK Switches |
2,367 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 85°C | CSA, UL, VDE |
|
P2023YSWITCH ROCKER DPDT 10A 125V NKK Switches |
2,892 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 28.50mm x 16.00mm | -10°C ~ 85°C | CSA, UL, VDE |
|
|
P2023Y-JBSWITCH ROCKER DPDT 10A 125V NKK Switches |
2,358 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 28.50mm x 16.00mm | -10°C ~ 85°C | CSA, UL, VDE |
|
|
M2T18TXG13/328-EASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
4,371 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Low Temperature Lubricant | - | -30°C ~ 85°C | CSA, UL |
|
|
LW3122/CULSWITCH ROCKER DPDT 10A 125V NKK Switches |
2,754 |
|
Datasheet |
LW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
