Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

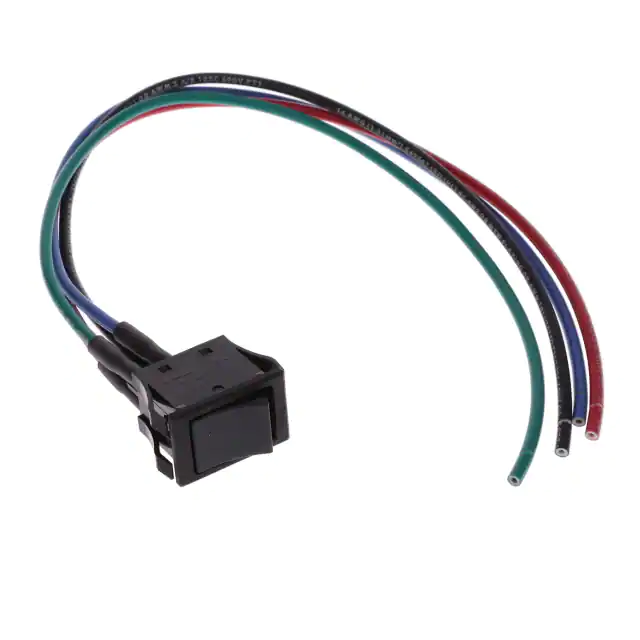

JWM21RAA/UC-WLSWITCH ROCKER DPST 10A 125V NKK Switches |
2,819 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Wire Leads | Dust Proof | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

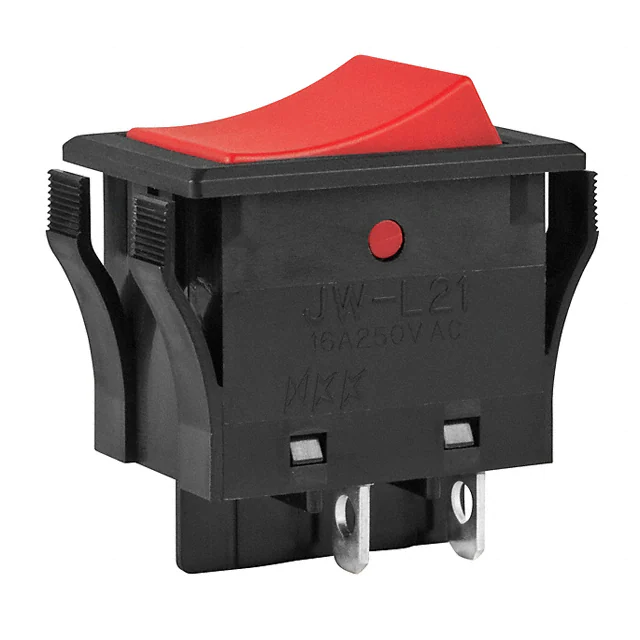

JWL21RCA/UCSWITCH ROCKER DPST 16A 125V NKK Switches |
1,952 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWL21RAA/UC-WLSWITCH ROCKER DPST 16A 125V NKK Switches |
4,638 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

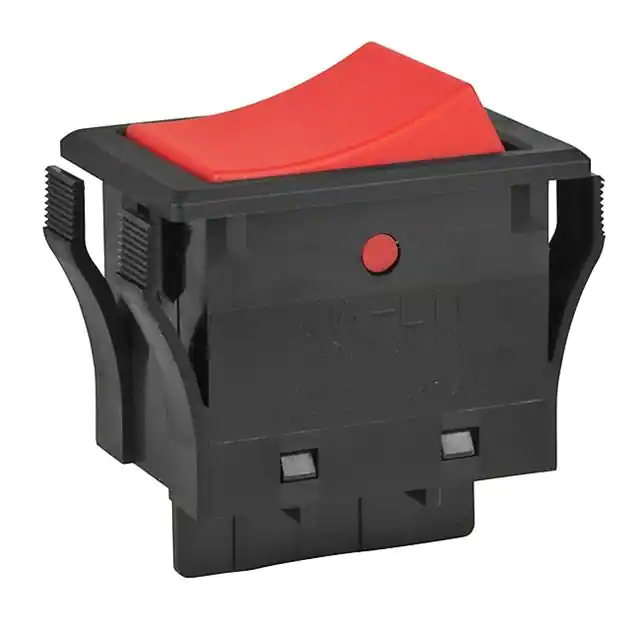

JWL11RCA/UCV-WLSWITCH ROCKER SPST 16A 125V NKK Switches |
1,735 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWL11RC2A/UCV-WLSWITCH ROCKER SPST 16A 125V NKK Switches |
1,369 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWL22RAA/UCV-WLSWITCH ROCKER DPDT 16A 125V NKK Switches |
4,327 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
CWSB21CACF-WLSWITCH ROCKER DPST 9A 125V NKK Switches |
3,075 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Wire Leads | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | cULus |
|
CWSB21FAFF-WLSWITCH ROCKER DPST 9A 125V NKK Switches |
2,310 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Wire Leads | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | cULus |
|
JWL11RAA/UCV-WLSWITCH ROCKER SPST 16A 125V NKK Switches |
1,345 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWM21BA2A/UC-A-WLSWITCH ROCKER DPST 10A 125V NKK Switches |
4,950 |
|
Datasheet |
JW | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Wire Leads | Dust Proof | - | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
