Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

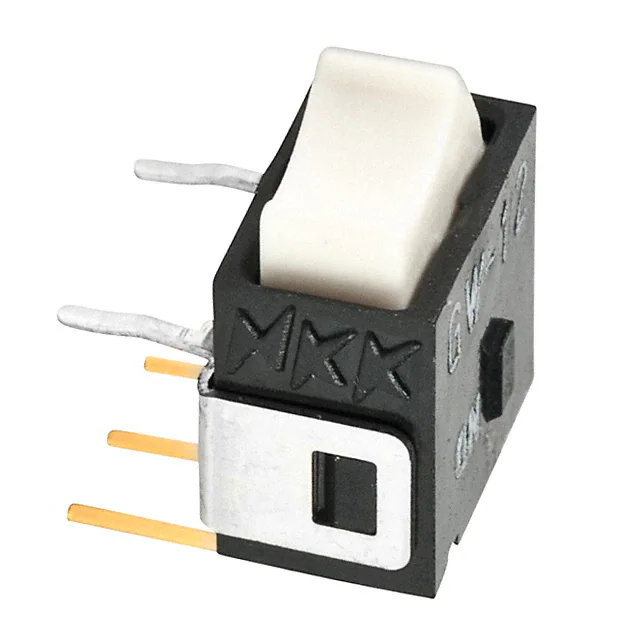

GW12RBHSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
1,410 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

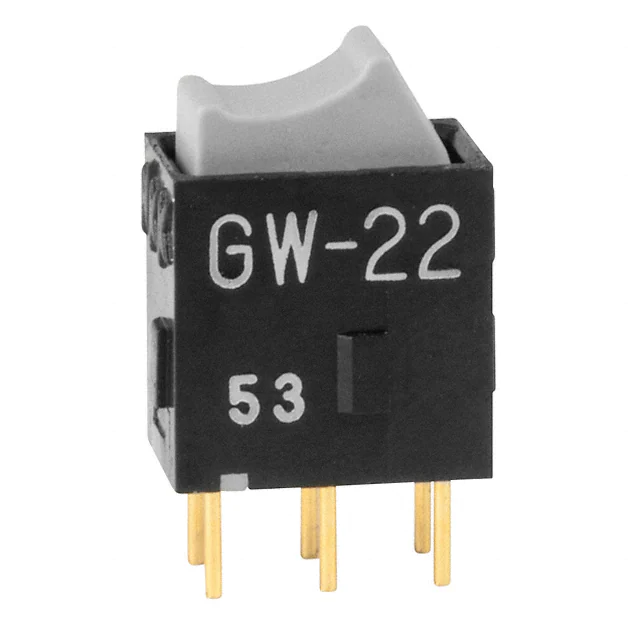

GW22RHPSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
1,780 |
|
Datasheet |
GW | Tray | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

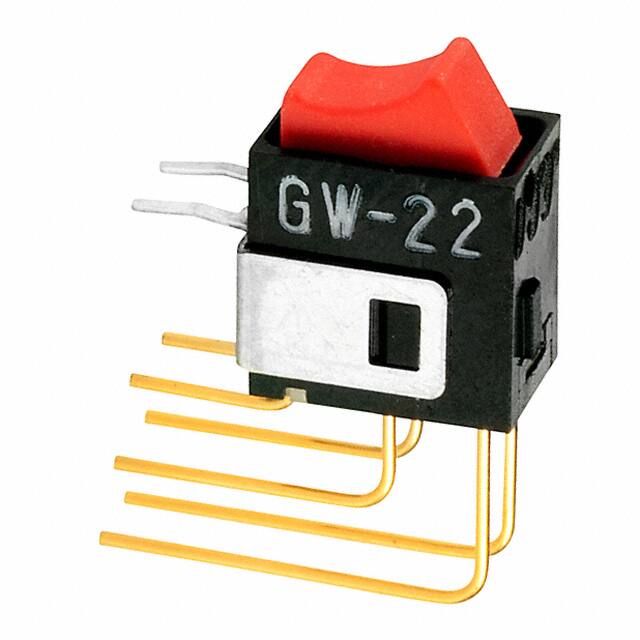

GW22RCVSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
4,185 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
GW22RHHSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
1,486 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

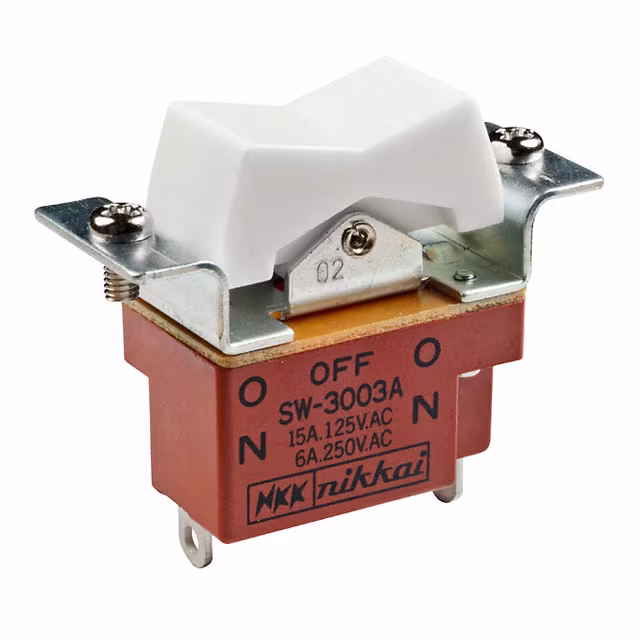

SW3003ASWITCH ROCKER SPDT 15A 125V NKK Switches |
3,178 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | - | -10°C ~ 70°C | CSA, UL |
|
JWM11RA1A/UCVSWITCH ROCKER SPST 10A 125V NKK Switches |
2,634 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
JWM12RAA/UCVSWITCH ROCKER SPDT 10A 125V NKK Switches |
3,850 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
A18KBSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
4,362 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

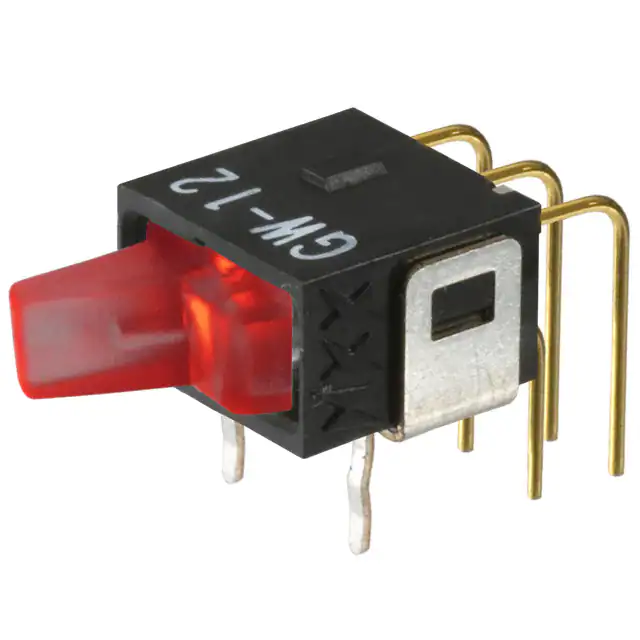

GW12LJHCSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
2,348 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Red | 2 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
|

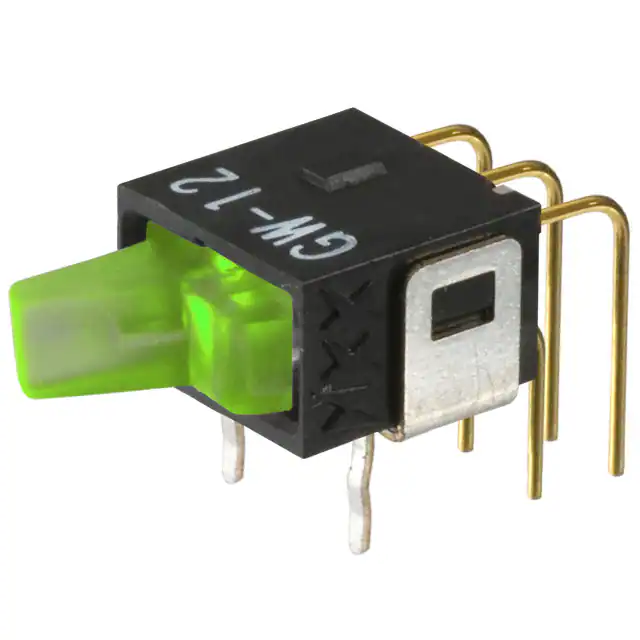

GW12LJHFSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
1,610 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Green | 2.1 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
