Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A13KP-CASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
1,835 |
|
Datasheet |
A | Box | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A13KW-CASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
1,146 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Wire Wrap | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A12KB1-CASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,227 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A12KB-CASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,699 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A12KB1-CGSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,814 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Blue | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2012TYW01-JCSWITCH ROCKER SPDT 6A 125V NKK Switches |
2,975 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
G18KP-YBSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
2,431 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
G18KP-YCSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
2,232 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|
|
G18KP-YASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
2,868 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -25°C ~ 85°C | CSA, UL |
|

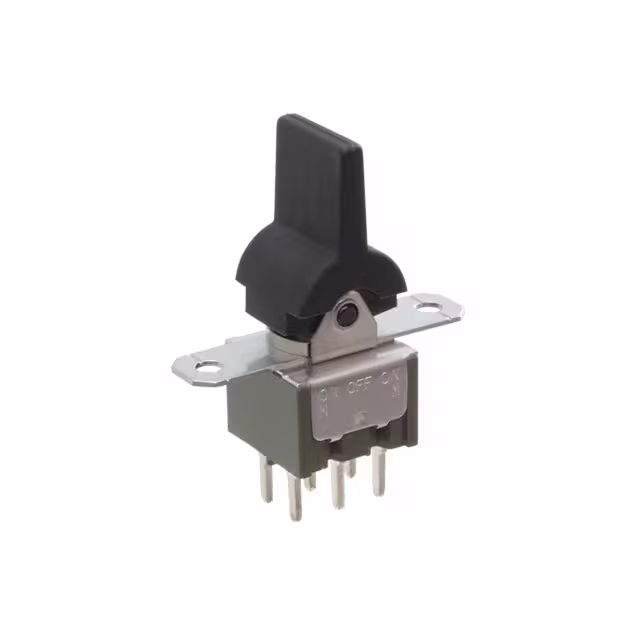

M2028TNW03-GASWITCH ROCKER DPDT 6A 125V NKK Switches |
3,721 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
