Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A13KV-CASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
4,806 |
|
- |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A12K1H-DBSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
1,383 |
|
Datasheet |
A | Box | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

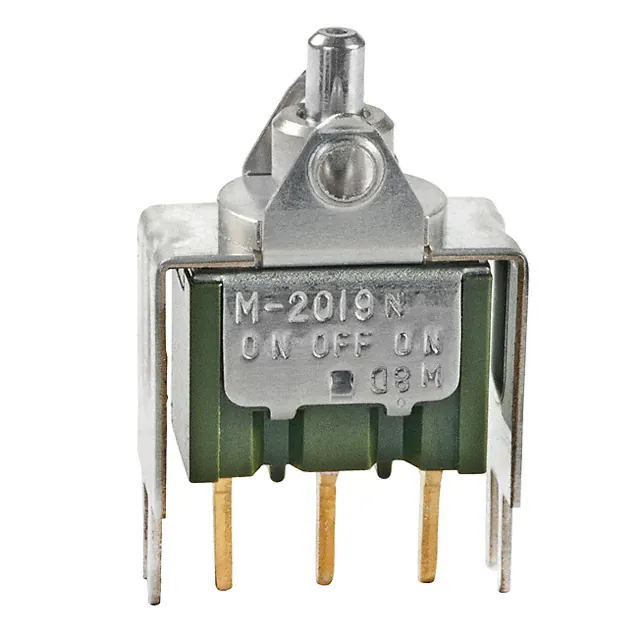

M2019TXG13SWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
4,065 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2019TJW03SWITCH ROCKER SPDT 6A 125V NKK Switches |
4,327 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
M2015TJW01-GA-1ASWITCH ROCKER SPDT 6A 125V NKK Switches |
1,149 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
M2012TJG01SWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
3,661 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|

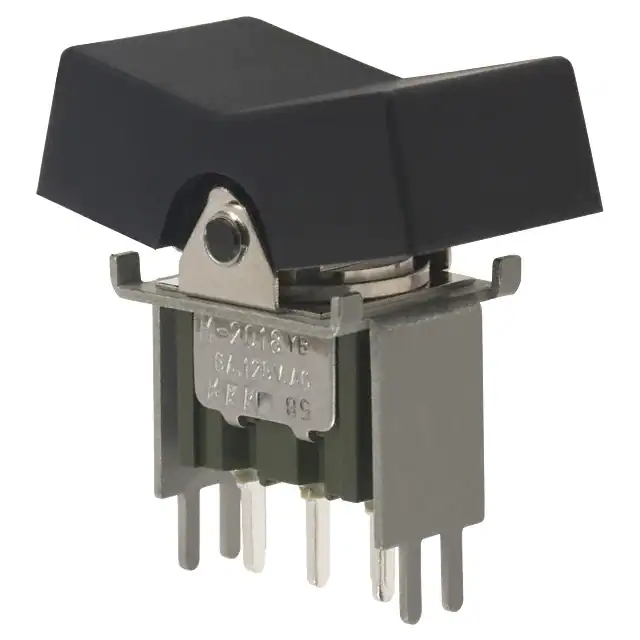

M2018TZW13-JASWITCH ROCKER SPDT 6A 125V NKK Switches |
2,150 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2012TJW03-FA-1ASWITCH ROCKER SPDT 6A 125V NKK Switches |
1,428 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|

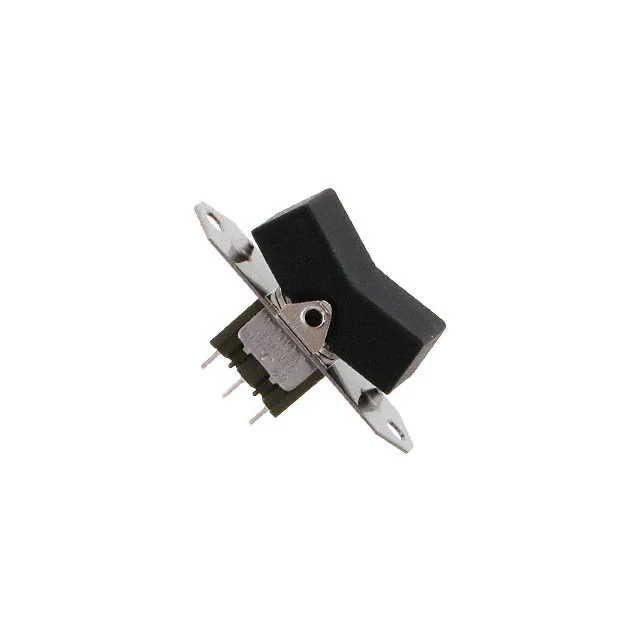

M2013TYW01-JASWITCH ROCKER SPDT 6A 125V NKK Switches |
1,389 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2019TZG13SWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
4,894 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
