Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRAN206-BASWITCH ROTARY NKK Switches |
1,026 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
MRAN403-BASWITCH ROTARY NKK Switches |
3,579 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
MRB12B-C-CSWITCH ROTARY 2POS 0.4VA 28V NKK Switches |
4,674 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 15.80mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | Sealed - Fully | 11.00mm |
|
|
MRK403-BHSWITCH ROTARY 2-3POS 0.4VA 28V NKK Switches |
4,758 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 4 | 4P3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 14.30mm | 30° | Phosphor Bronze | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 10.10mm |
|
|
MRT22/U-ASWITCH ROTARY 2POS 10A 125V NKK Switches |
4,201 |
|
Datasheet |
MR | Bulk | Last Time Buy | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 10A (AC), 4A (DC) | 125 V | 30 V | Knob | 13.05mm | 120° | Silver Alloy | - | Panel Mount, Right Angle | Solder Lug | Sealed - Flux Protection | 11.99mm |
|
|
MRT22/USWITCH ROTARY 2POS 10A 125V NKK Switches |
4,579 |
|
Datasheet |
MR | Bulk | Last Time Buy | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 10A (AC), 4A (DC) | 125 V | 30 V | Flatted (3.17mm Dia) | 20.00mm | 120° | Silver Alloy | - | Panel Mount, Right Angle | Solder Lug | Sealed - Flux Protection | 11.99mm |
|

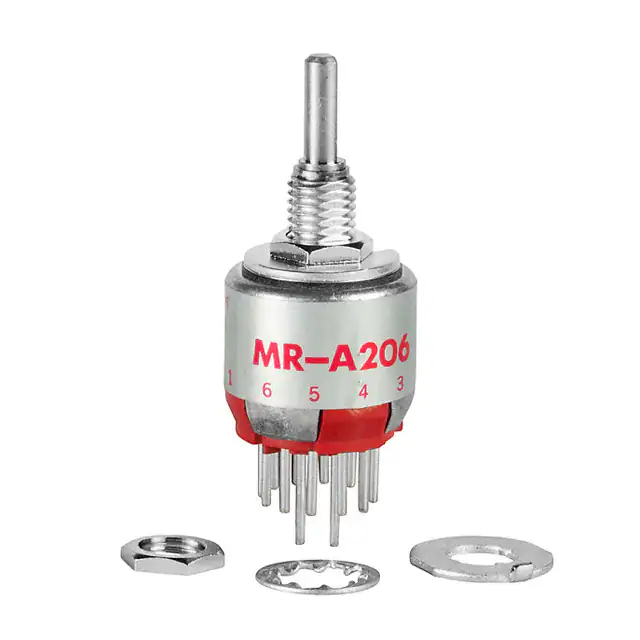

MRA206SWITCH ROTARY 2-6POS 250MA 125V NKK Switches |
1,760 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Flatted (3.17mm Dia) | 10.00mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
HS16-2/328SWITCH ROTARY 2-11POS 12A 125V NKK Switches |
4,791 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 41.50mm |
|
|
MRT23-BESWITCH ROTARY 3POS 5A 125V NKK Switches |
3,130 |
|
Datasheet |
MR | Bulk | Last Time Buy | 3 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 5A (AC), 3A (DC) | 125 V | 30 V | Knob | 14.30mm | 60° | Silver Alloy | - | Panel Mount, Right Angle | Solder Lug | Sealed - Flux Protection | 12.00mm |
|
|
MRT23-BGSWITCH ROTARY 3POS 5A 125V NKK Switches |
1,275 |
|
Datasheet |
MR | Bulk | Last Time Buy | 3 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 5A (AC), 3A (DC) | 125 V | 30 V | Knob | 14.30mm | 60° | Silver Alloy | - | Panel Mount, Right Angle | Solder Lug | Sealed - Flux Protection | 12.00mm |
