Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRX108-CBSWITCH ROTARY 2-8POS 2A 125V NKK Switches |
2,491 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 8 | Adjustable | 1 | 1 | SP8T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|

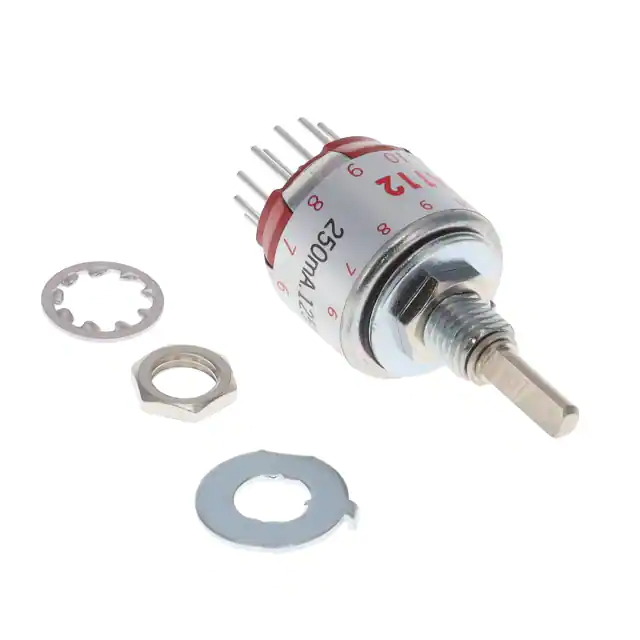

MRA112/208SWITCH ROTARY 2-12POS 250MA 125V NKK Switches |
4,787 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Flatted (3.17mm Dia) | 10.00mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
MRA403-BASWITCH ROTARY 2-3POS 250MA 125V NKK Switches |
1,943 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 3 | Adjustable | 1 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
MRA112/208-BFHALF-INCH DIAMETER PROCESS SEALE NKK Switches |
4,069 |
|
- |
MR | Bulk | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
MRX402-BBSWITCH ROTARY 2POS 2A 125V NKK Switches |
2,507 |
|
Datasheet |
MR | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX402-BCSWITCH ROTARY 2POS 2A 125V NKK Switches |
4,076 |
|
Datasheet |
MR | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX402-BHSWITCH ROTARY 2POS 2A 125V NKK Switches |
3,861 |
|
Datasheet |
MR | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX402-BFSWITCH ROTARY 2POS 2A 125V NKK Switches |
2,077 |
|
Datasheet |
MR | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 14.30mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRX402-CASWITCH ROTARY 2POS 2A 125V NKK Switches |
2,012 |
|
Datasheet |
MR | Box | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|
|
MRA112-BHSWITCH ROTARY 2-12POS 250MA 125V NKK Switches |
4,149 |
|
Datasheet |
MR | Bulk | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
