Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRA206-BCSWITCH ROTARY 2-6POS 250MA 125V NKK Switches |
2,592 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
MRA206-BBSWITCH ROTARY 2-6POS 250MA 125V NKK Switches |
1,677 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 14.30mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
HS16-3SWITCH ROTARY 2-11POS 12A 125V NKK Switches |
4,147 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 3 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 51.50mm |
|
|
HS16-4SSWITCH ROTARY 2-11POS 12A 125V NKK Switches |
1,118 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 61.50mm |
|
|
HS16-5SWITCH ROTARY 2-11POS 12A 125V NKK Switches |
2,564 |
|
Datasheet |
HS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 5 | 1 | SP11T | Non-Shorting (BBM) | 12A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 71.50mm |
|

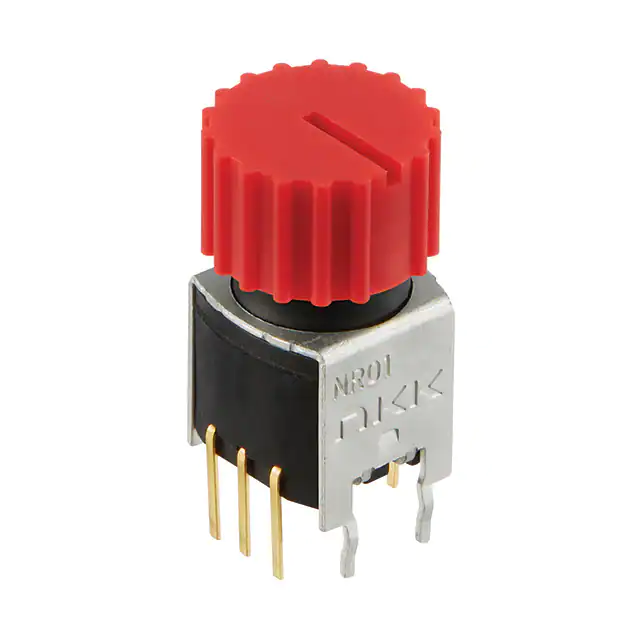

NR01103ANG13-1CSWITCH ROTARY 3POS 0.4VA 28V NKK Switches |
2,786 |
|
Datasheet |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
|
NR01104ANG13-1CSWITCH ROTARY 4POS 0.4VA 28V NKK Switches |
4,744 |
|
Datasheet |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01104ANG13-2ASWITCH ROTARY 4POS 0.4VA 28V NKK Switches |
4,938 |
|
Datasheet |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
MRB24HSWITCH ROTARY 3POS 0.4VA 28V NKK Switches |
2,664 |
|
Datasheet |
MRB | Box | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flatted (3.17mm Dia) | 10.00mm | 45° | Beryllium Copper | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | Sealed - Fully | 15.10mm |
|

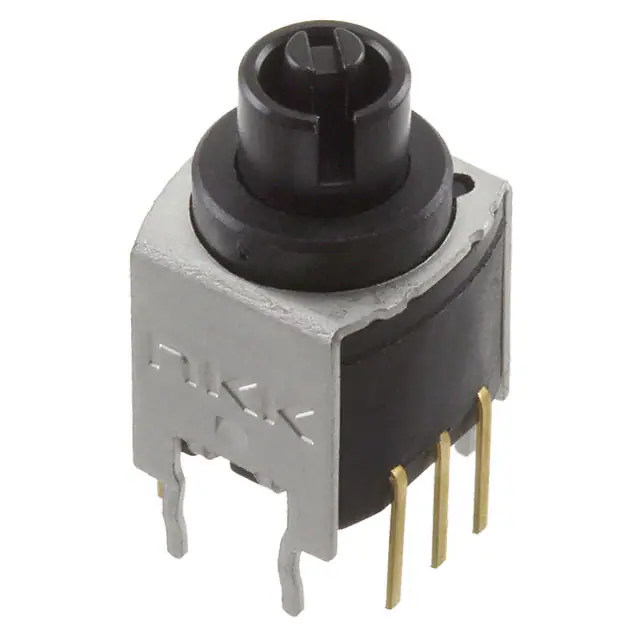

NR01103ANG13SWITCH ROTARY 3POS 0.4VA 28V NKK Switches |
4,938 |
|
Datasheet |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | - | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
