Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NR01103ANG13-2HSWITCH ROTARY 3POS 0.4VA 28V NKK Switches |
3,847 |
|
Datasheet |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|

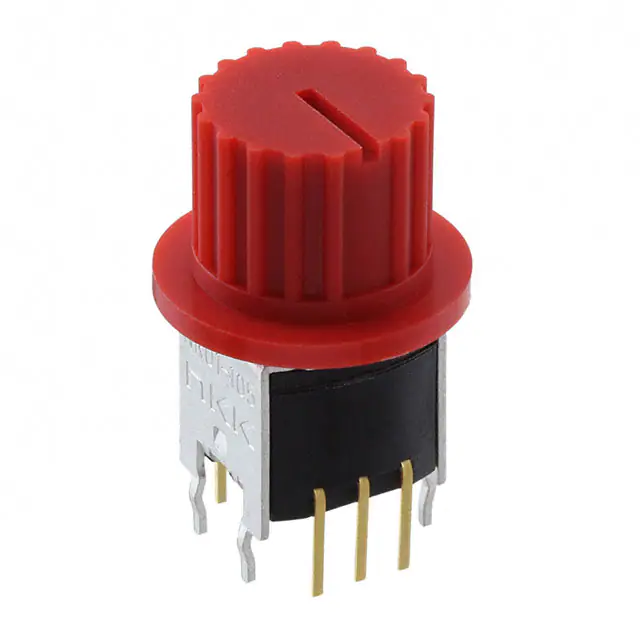

NR01105ANG13-2CSWITCH ROTARY 5POS 0.4VA 28V NKK Switches |
2,083 |
|
Datasheet |
NR01 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01103ANG13-2CSWITCH ROTARY 3POS 0.4VA 28V NKK Switches |
3,477 |
|
Datasheet |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|

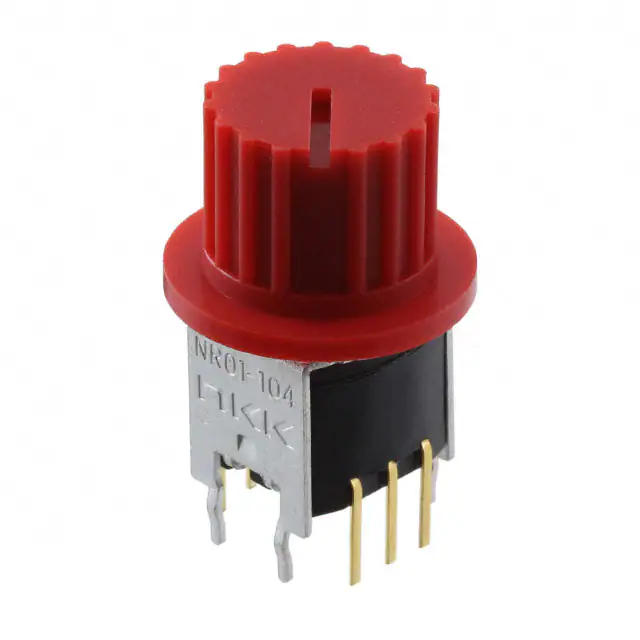

NR01104ANG13-2CSWITCH ROTARY 4POS 0.4VA 28V NKK Switches |
3,636 |
|
Datasheet |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
|
NR01104ANG13-2HSWITCH ROTARY 4POS 0.4VA 28V NKK Switches |
1,230 |
|
Datasheet |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|

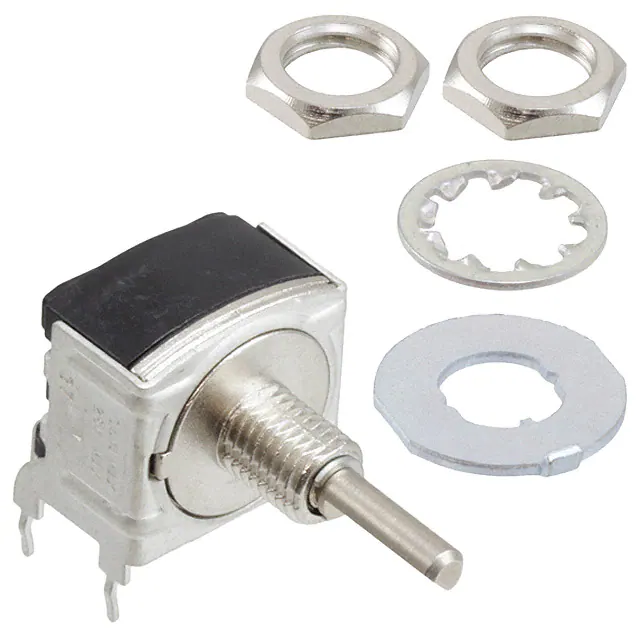

MRB12HSWITCH ROTARY 2POS 0.4VA 28V NKK Switches |
1,583 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flatted (3.17mm Dia) | 10.00mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | Sealed - Fully | 12.56mm |
|
MRB14B-BHSWITCH ROTARY 3POS 0.4VA 28V NKK Switches |
1,595 |
|
Datasheet |
MRB | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 14.30mm | 45° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | Sealed - Fully | 11.00mm |
|
MRB24B-CASWITCH ROTARY 3POS 0.4VA 28V NKK Switches |
2,279 |
|
Datasheet |
MRB | Box | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 15.80mm | 45° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | Sealed - Fully | 11.00mm |
|

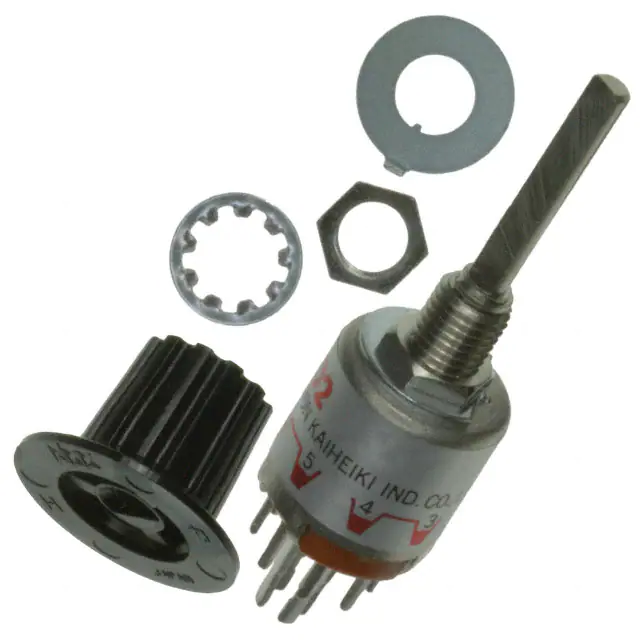

MRX402-ASWITCH ROTARY 2POS 2A 125V NKK Switches |
2,844 |
|
Datasheet |
MR | Box | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 13.00mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
|

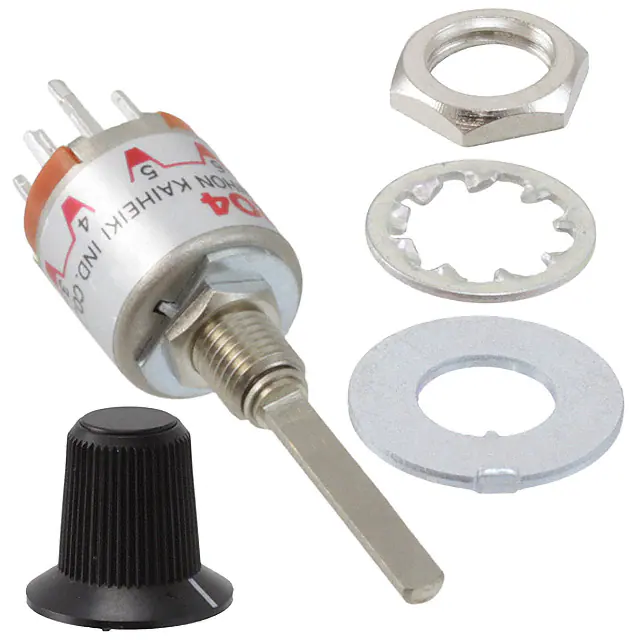

MRX204-CHSWITCH ROTARY 2-4POS 2A 125V NKK Switches |
1,762 |
|
Datasheet |
MR | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 2A (AC), 1A (DC) | 125 V | 30 V | Knob | 15.80mm | 45° | Silver Alloy | - | Panel Mount, Through Hole | PC Pin | Sealed - Flux Protection | 27.30mm |
