Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS12ASW30SWITCH SLIDE SPDT 6A 125V NKK Switches |
2,028 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

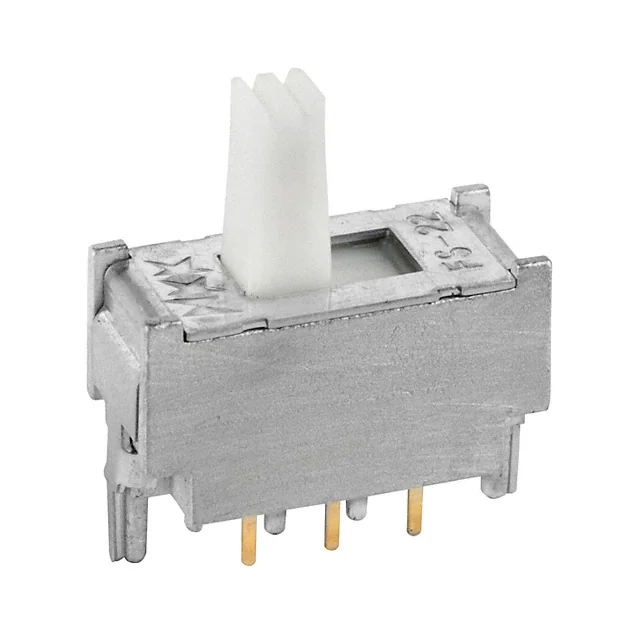

FS22AAPSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
3,978 |
|
Datasheet |
FS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 7.40mm | - | - | Through Hole | PC Pin | High Frequency |
|
AS22CPSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,807 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

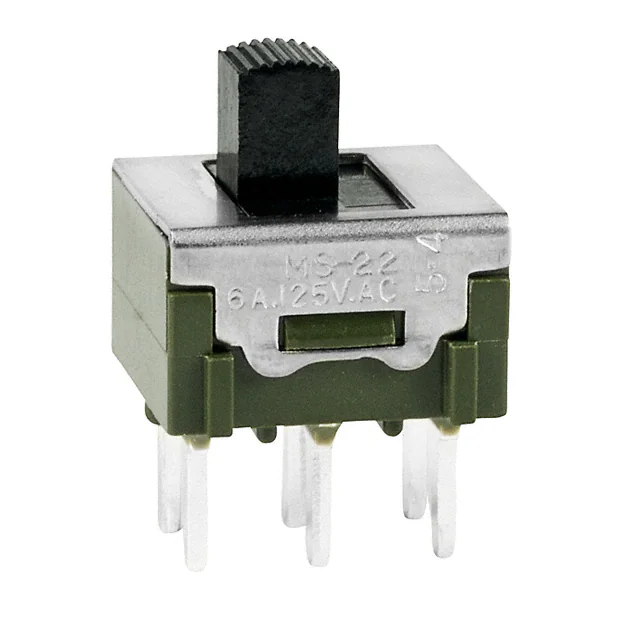

MS22ANW03SWITCH SLIDE DPDT 6A 125V NKK Switches |
2,022 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS22BWSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,184 |
|
Datasheet |
AS | Tube | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

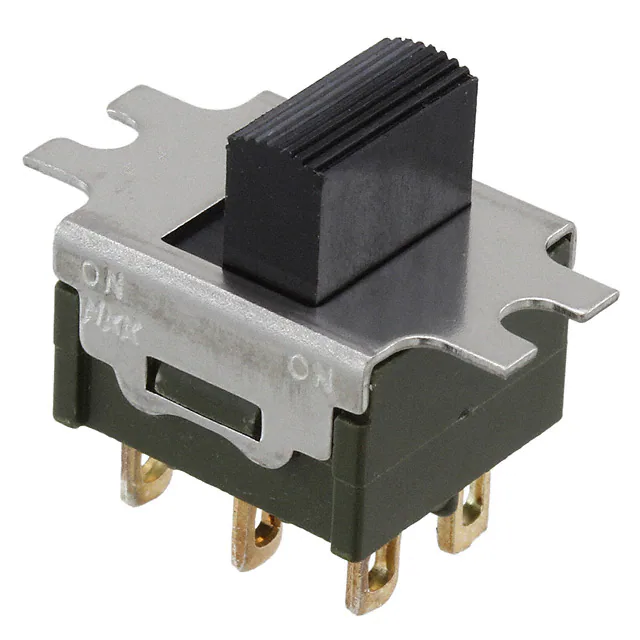

MS22BFW01SWITCH SLIDE DPDT 6A 125V NKK Switches |
1,931 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
MS22AFW01/CULSWITCH SLIDE DPDT 6A 125V NKK Switches |
1,524 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
AS22BBSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
1,294 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS23BPSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
3,255 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSN13ASG13MINIATURE SLIDE NKK Switches |
1,722 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
