Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

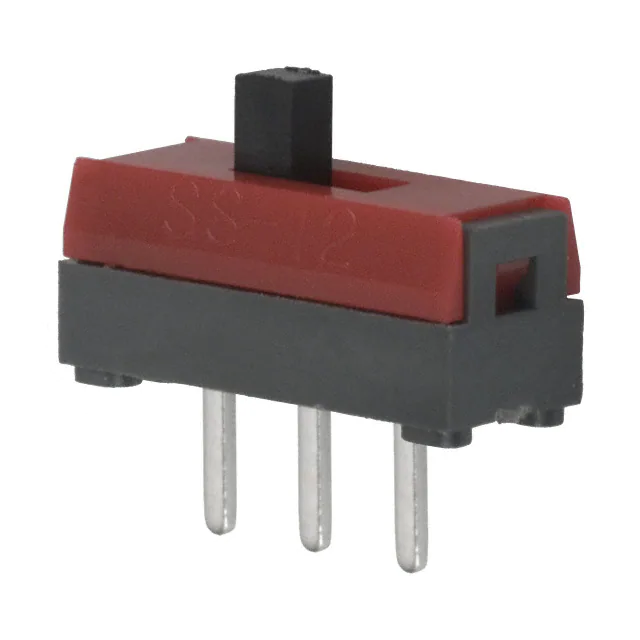

SS12SDP2SWITCH SLIDE SPDT 100MA 30V NKK Switches |
24,643 |
|
Datasheet |
SS | Tray | Active | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
SS12SBP2SWITCH SLIDE SPDT 100MA 30V NKK Switches |
3,846 |
|
Datasheet |
SS | Tray | Active | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
SS22SDP2SWITCH SLIDE DPDT 100MA 30V NKK Switches |
2,772 |
|
Datasheet |
SS | Tray | Active | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

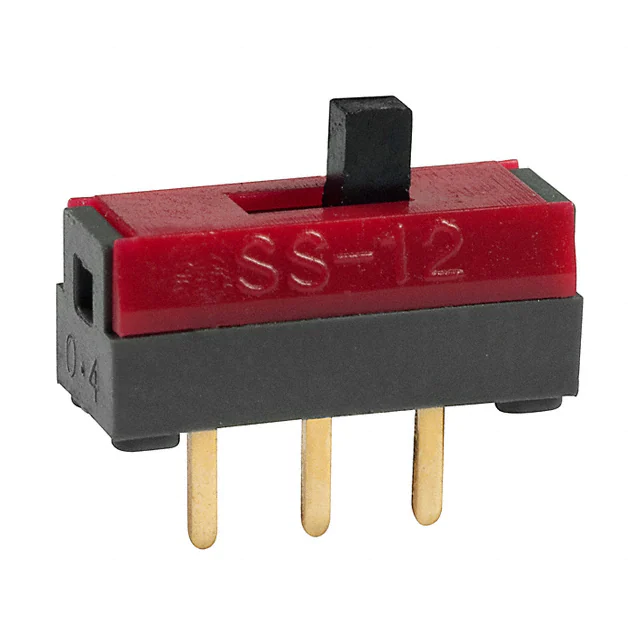

SS12SDP4SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
11,413 |
|
Datasheet |
SS | Tray | Active | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Through Hole | PC Pin | - |
|

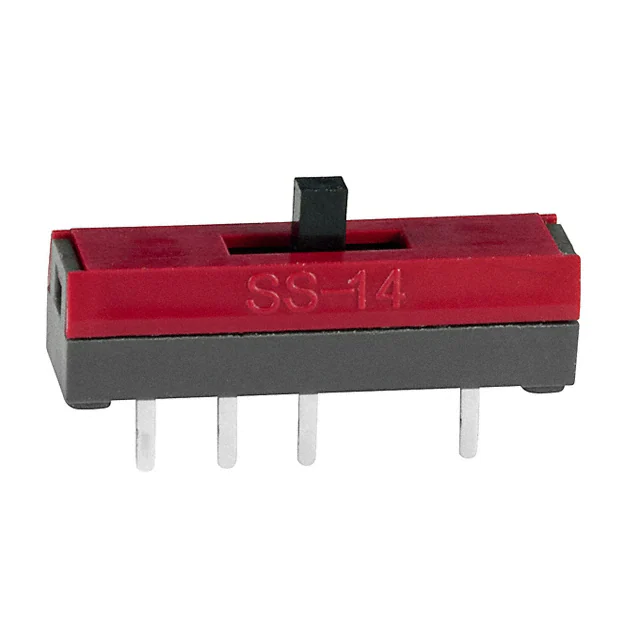

SS14MDP2SWITCH SLIDE SP3T 100MA 30V NKK Switches |
5,667 |
|
Datasheet |
SS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 30 V | Standard | 2.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

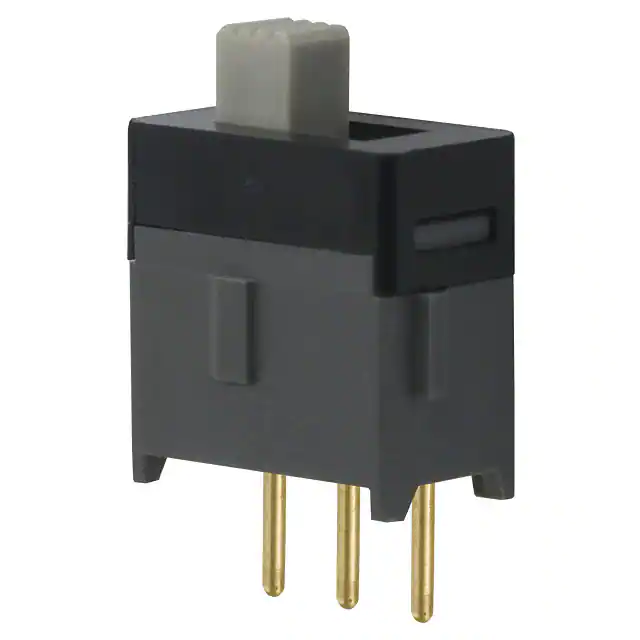

AS12APSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
5,847 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

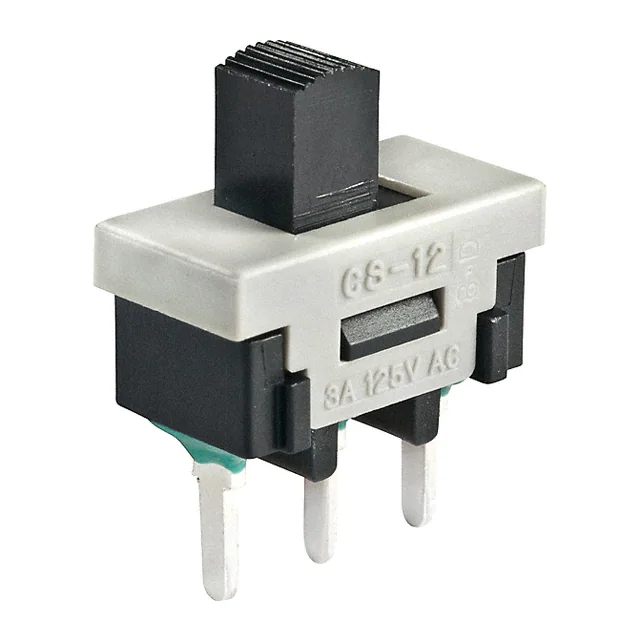

CS12ANW03SWITCH SLIDE SPDT 3A 125V NKK Switches |
38,879 |
|
Datasheet |
CS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.10mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

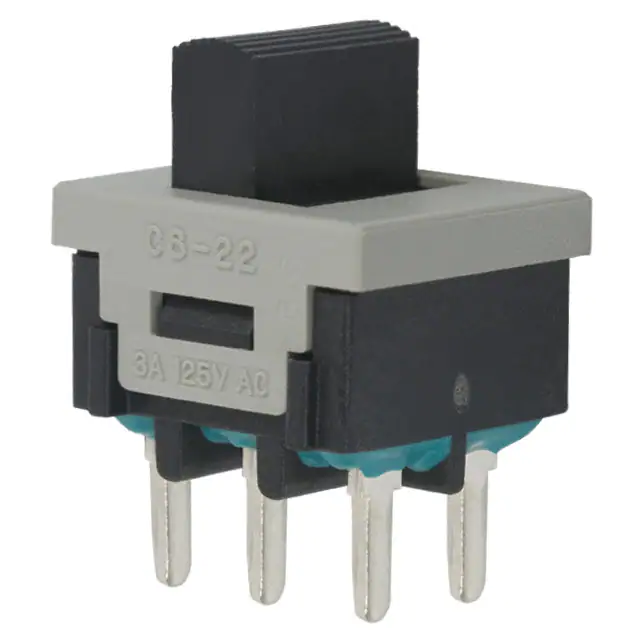

CS22BNW03SWITCH SLIDE DPDT 3A 125V NKK Switches |
10,673 |
|
Datasheet |
CS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.10mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

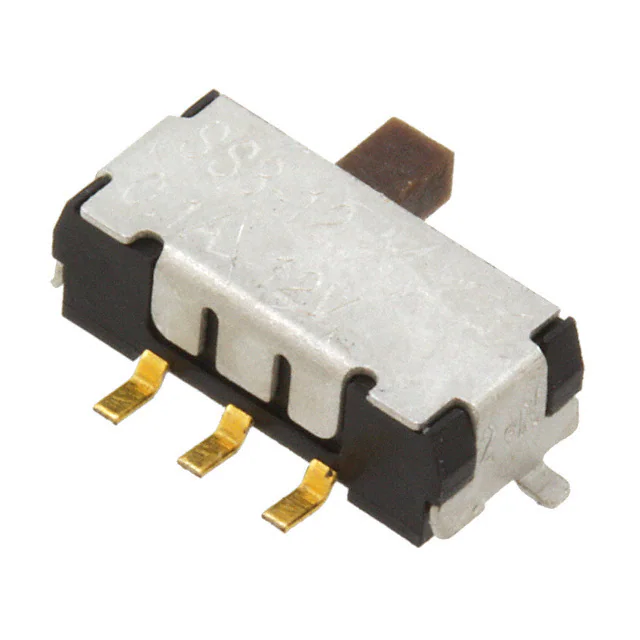

SS312SAH4-RSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
4,041 |
|
Datasheet |
SS3 | Tape & Reel (TR) | Active | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Surface Mount, Right Angle | Gull Wing | - |
|

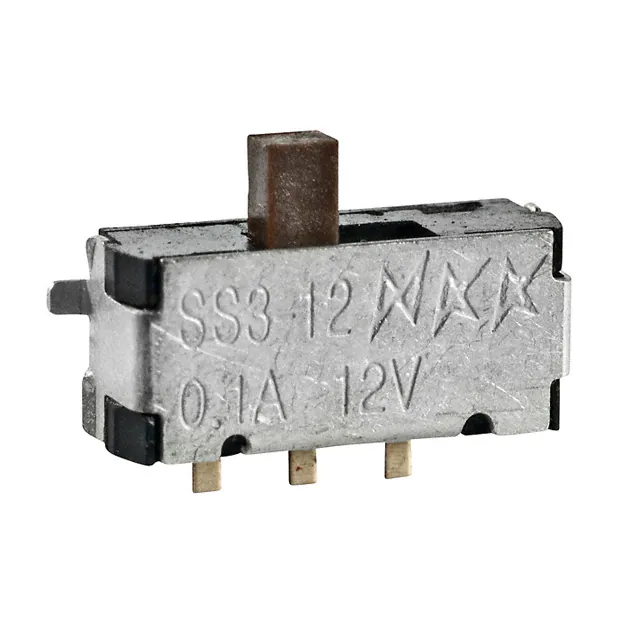

SS312SAH4SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
2,371 |
|
Datasheet |
SS3 | Tray | Active | SPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Surface Mount, Right Angle | Gull Wing | - |
