Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS12LNW03FSWITCH SLIDE SPDT 6A 125V NKK Switches |
2,321 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

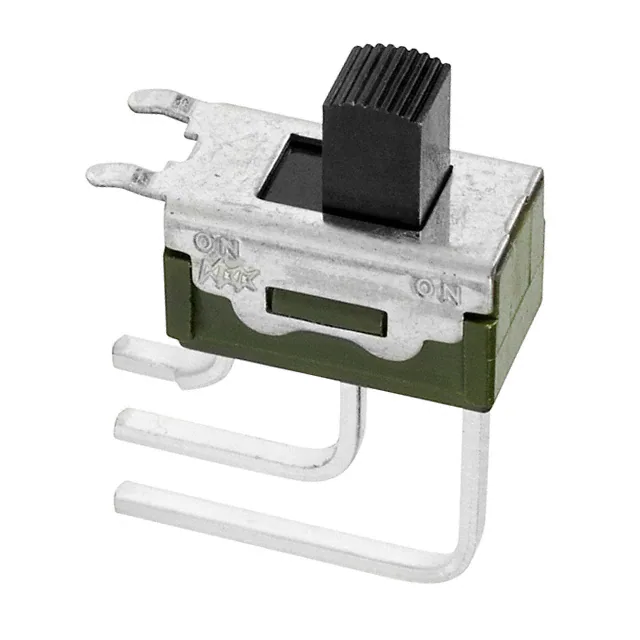

MS12ASW40SWITCH SLIDE SPDT 6A 125V NKK Switches |
4,822 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
MS13ANA03SWITCH SLIDE SPDT 6A 125V NKK Switches |
4,149 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MS12ASG30/USWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
2,802 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

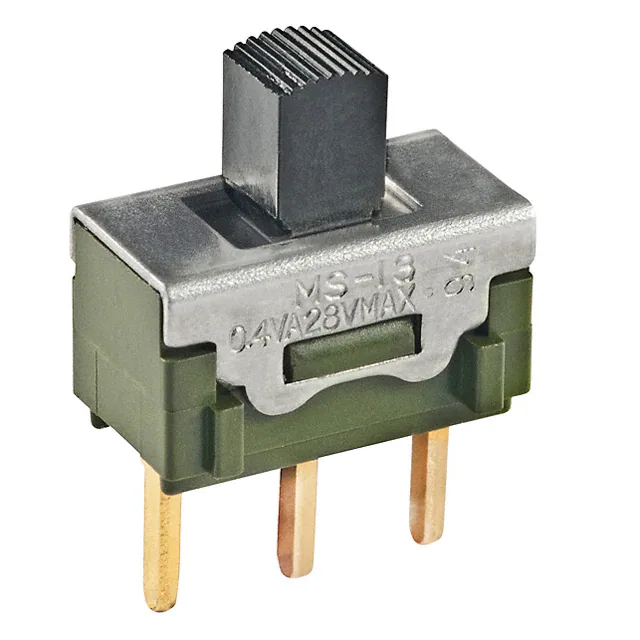

MS13ANG03SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
1,826 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

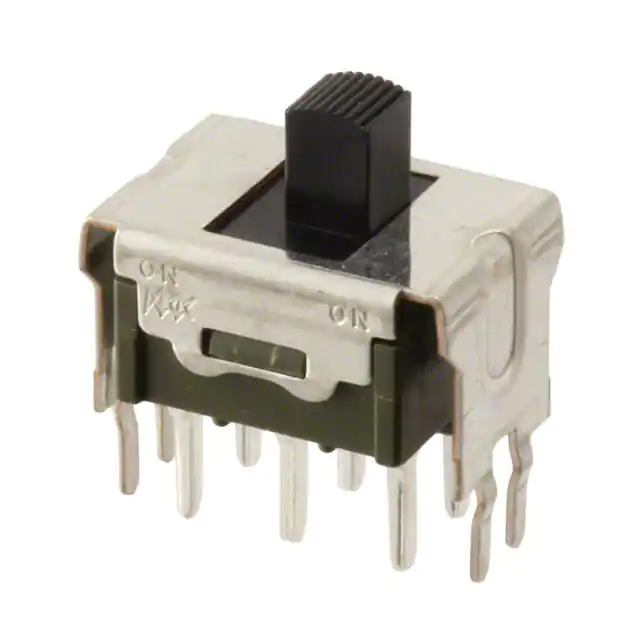

MS22ASW13/CSWITCH SLIDE DPDT 6A 125V NKK Switches |
3,725 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

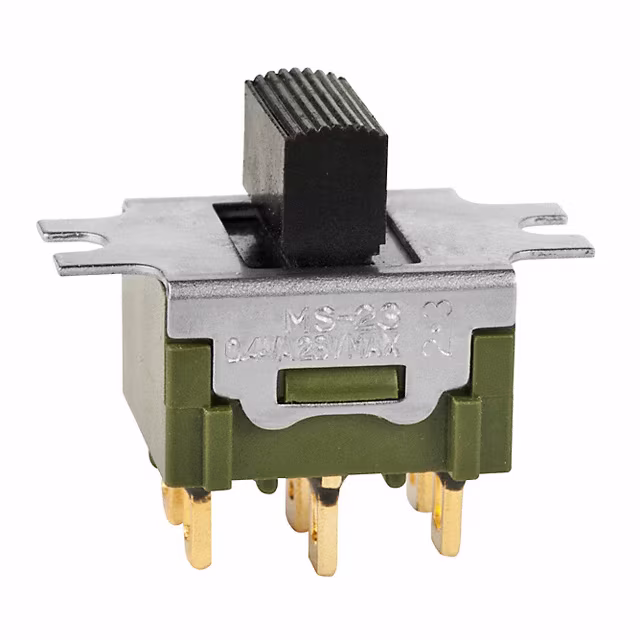

MS23BFG01SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,146 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
AS23BH/328SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
4,821 |
|
Datasheet |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MS12ASW30/USWITCH SLIDE SPDT 6A 125V NKK Switches |
3,796 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MS13ASG13SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
3,520 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
