Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15HBPC-JCSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
2,683 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HBPE-JESWITCH TACT SPST-NO 0.125A 24V NKK Switches |
4,331 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HBPC-BBSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
1,104 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JL15SKSBDP2SWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
2,099 |
|
Datasheet |
JL | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 7.85mm | - | Top Actuated | PC Pin | 22.00mm x 22.00mm | Illuminated | LED, Amber | 4 VDC | 300gf | - | - | -25°C ~ 50°C |
|
|
JB15KP-4HHSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
3,709 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4BBSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
3,055 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

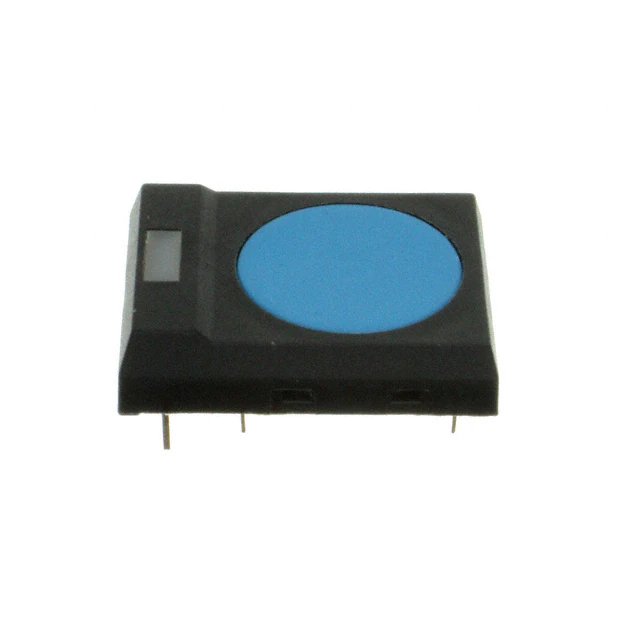

JF15RP2GCSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
3,391 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
JF15RP3HESWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
3,090 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 1.9 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
JF15RP3CFSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
3,085 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Green | 2 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HLPE-JESWITCH TACT SPST-NO 0.125A 24V NKK Switches |
4,426 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
