Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15HBPC-BHSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
1,710 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HLPF-BHSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
4,547 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JF15AP1CCSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
1,104 |
|
Datasheet |
JF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.70mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 1.77 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
JF15AP1EESWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
3,438 |
|
Datasheet |
JF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.70mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 2.1 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
HP0315AFKP4SWITCH TACTILE SPST-NO 0.4VA 28V NKK Switches |
2,645 |
|
Datasheet |
HP03 | Box | Active | SPST-NO | Off-Mom | 0.4VA @ 28VAC/DC | Standard | Surface Mount | 4.40mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
JB15KP-1CSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
2,746 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-1BSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
2,077 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

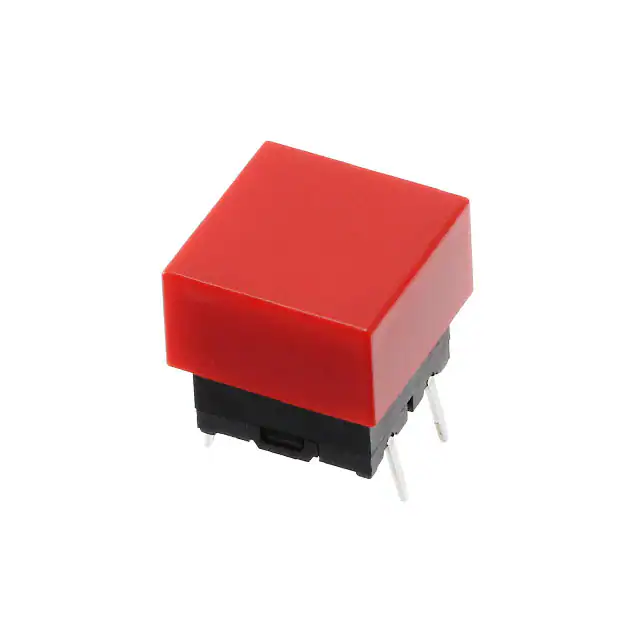

JB15KP-2CSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
1,106 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-4CCSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
3,541 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JF15SP2DSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
100 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
