Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30J150ERES 150 OHM 5% 10W AXIAL Ohmite |
233 |
|
Datasheet |
High Energy Wirewound | Bulk | Active | 150 Ohms | ±5% | 10W | Wirewound | - | - | - | Axial | 0.406" Dia x 1.843" L (10.30mm x 46.80mm) | - | 2 | - |
|
TA203PA200RJERES 200 OHM 5% 3W POWERCHIP Ohmite |
146 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 200 Ohms | ±5% | 3W | Thick Film | - | ±50ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 0.620" (15.75mm) | 2 | - |
|

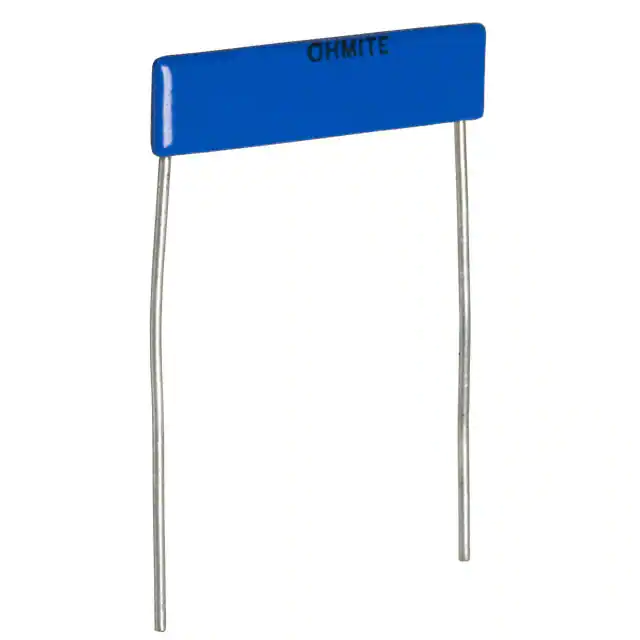

SM104034005FERES 40M OHM 1% 1.5W RADIAL Ohmite |
134 |
|
Datasheet |
Slim-Mox | Bulk | Active | 40 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
40F1R0ERES 1 OHM 1% 10W AXIAL Ohmite |
213 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 Ohms | ±1% | 10W | Wirewound | - | ±50ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
|
30J4R7ERES 4.7 OHM 5% 10W AXIAL Ohmite |
371 |
|
Datasheet |
High Energy Wirewound | Bulk | Active | 4.7 Ohms | ±5% | 10W | Wirewound | - | - | - | Axial | 0.406" Dia x 1.843" L (10.30mm x 46.80mm) | - | 2 | - |
|
20J40KERES 40K OHM 5% 10W AXIAL Ohmite |
203 |
|
Datasheet |
20 | Bulk | Active | 40 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
SM104033004FERES 3M OHM 1% 1.5W RADIAL Ohmite |
107 |
|
Datasheet |
Slim-Mox | Bulk | Active | 3 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

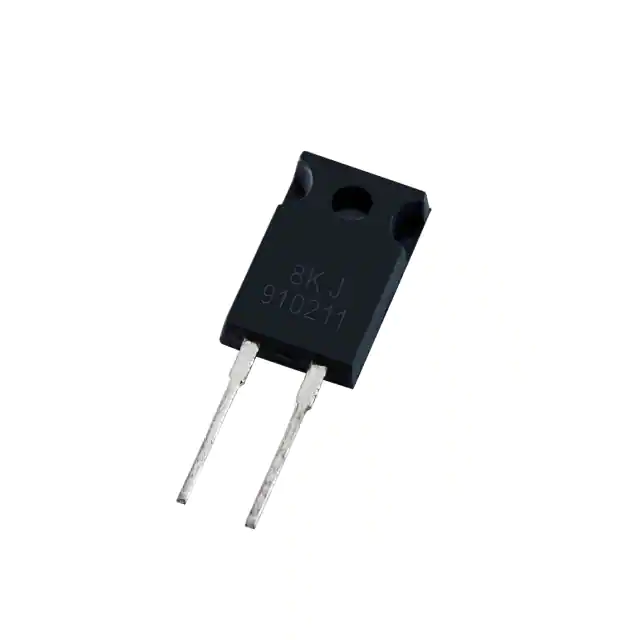

AP830 50R F 50PPMRES 50 OHM 1% 30W TO220 Ohmite |
135 |
|
Datasheet |
ARCOL, AP830 | Tube | Active | 50 Ohms | ±1% | 30W | Thick Film | Non-Inductive | ±50ppm/°C | -65°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.810" (20.58mm) | 2 | - |
|
B8J3K0ERES 3K OHM 5% 8W AXIAL Ohmite |
200 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 3 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
AP830 2R F 300PPMRES 2 OHM 1% 30W TO220 Ohmite |
148 |
|
Datasheet |
ARCOL, AP830 | Tube | Active | 2 Ohms | ±1% | 30W | Thick Film | Non-Inductive | ±300ppm/°C | -65°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.810" (20.58mm) | 2 | - |
