Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OC2K8R2E-TRRES 8.2 OHM 10% 1.7W AXIAL Ohmite |
990 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 8.2 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
|
OC2K680E-TRRES 68 OHM 10% 1.7W AXIAL Ohmite |
975 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 68 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
|
OC1K222ERES 2.2K OHM 10% 1W AXIAL Ohmite |
1,000 |
|
Datasheet |
OC | Bulk | Active | 2.2 kOhms | ±10% | 1W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|
AP830 40R FRES 40 OHM 1% 30W TO220 Ohmite |
239 |
|
Datasheet |
ARCOL, AP830 | Tube | Active | 40 Ohms | ±1% | 30W | Thick Film | Non-Inductive | ±50ppm/°C | -65°C ~ 150°C | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.810" (20.58mm) | 2 | - |
|
40FR10ERES 0.1 OHM 1% 10W AXIAL Ohmite |
176 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 mOhms | ±1% | 10W | Wirewound | - | ±90ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
SM104033007FERES 3 GOHM 1% 1.5W RADIAL Ohmite |
236 |
|
Datasheet |
Slim-Mox | Bulk | Active | 3 GOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
TFSD1K00JERES 1K OHM 5% 1W AXIAL Ohmite |
493 |
|
Datasheet |
TFS | Bulk | Active | 1 kOhms | ±5% | 1W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.315" x 0.035" Rectangular x 0.827" L (8.00mm x 0.90mm x 21.00mm) | - | 2 | - |
|
|
OC2K120E-TRRES 12 OHM 10% 1.7W AXIAL Ohmite |
1,000 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 12 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|

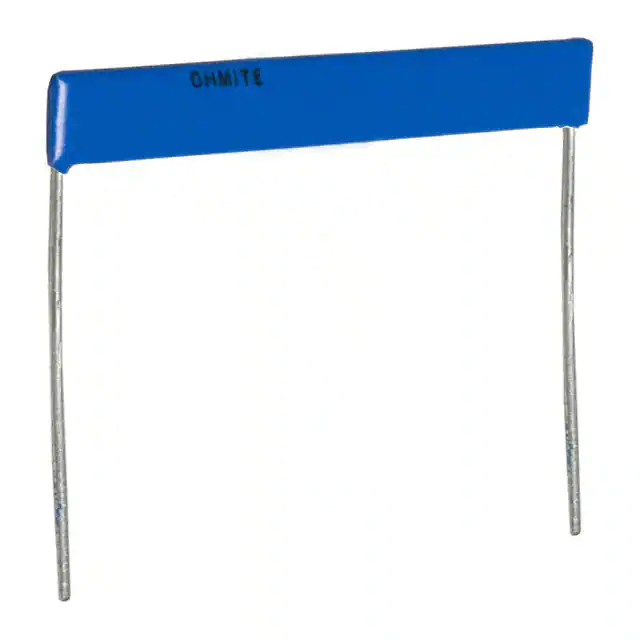

SM108034006FERES 400M OHM 1% 2.5W RADIAL Ohmite |
214 |
|
Datasheet |
Slim-Mox | Bulk | Active | 400 MOhms | ±1% | 2.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 2.080" L x 0.100" W (52.83mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
95J10RERES 10 OHM 5% 5W AXIAL Ohmite |
127 |
|
Datasheet |
90 | Bulk | Active | 10 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
