Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA393KERES 39K OHM 10% 1W AXIAL Ohmite |
1,007 |
|
Datasheet |
Little Demon® OA | Bulk | Obsolete | 39 kOhms | ±10% | 1W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.236" Dia x 0.591" L (6.00mm x 15.00mm) | - | 2 | - |
|
43F6K8ERES 6.8K OHM 1% 3W AXIAL Ohmite |
200 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 6.8 kOhms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
ACS5S10KJTRRES 10K OHM 5% 5W AXIAL Ohmite |
407 |
|
Datasheet |
ACS5S ACS10S | Tape & Reel (TR) | Discontinued at Digi-Key | 10 kOhms | ±5% | 5W | - | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.188" Dia x 0.500" L (4.78mm x 12.70mm) | - | 2 | - |
|
ACS5S2K2JTRRES 2.2K OHM 5% 5W AXIAL Ohmite |
956 |
|
Datasheet |
ACS5S ACS10S | Tape & Reel (TR) | Discontinued at Digi-Key | 2.2 kOhms | ±5% | 5W | - | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.188" Dia x 0.500" L (4.78mm x 12.70mm) | - | 2 | - |
|
OX123KERES 12K OHM 10% 1W AXIAL Ohmite |
3,142 |
|
Datasheet |
OX | Bulk | Active | 12 kOhms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
TK20PR100JERES 0.1 OHM 20W 5% TO220 Ohmite |
751 |
|
Datasheet |
TK | Bulk | Obsolete | 100 mOhms | ±5% | 20W | Thick Film | Current Sense | ±300ppm/°C | - | TO-220 | 0.394" L x 0.181" W (10.00mm x 4.60mm) | 0.701" (17.80mm) | 2 | - |
|
80F301RES 301 OHM 1% 10W AXIAL Ohmite |
235 |
|
Datasheet |
Acrasil® 80 | Bulk | Active | 301 Ohms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.843" L (10.30mm x 46.80mm) | - | 2 | - |
|
|
TK20PR500JERES 0.5 OHM 5% 20W TO220 Ohmite |
3,688 |
|
Datasheet |
TK | Bulk | Obsolete | 500 mOhms | ±5% | 20W | Thick Film | Current Sense | ±200ppm/°C | - | TO-220 | 0.394" L x 0.181" W (10.00mm x 4.60mm) | 0.701" (17.80mm) | 2 | - |
|

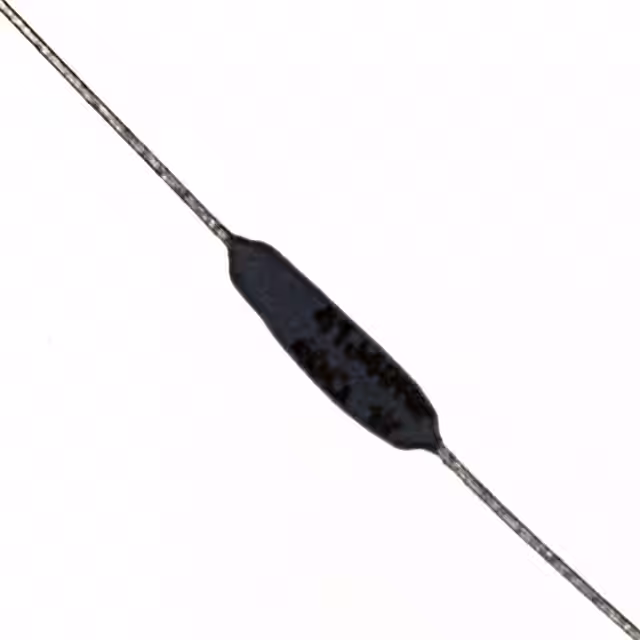

41J40RERES 40 OHM 5% 1W AXIAL Ohmite |
4,013 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 40 Ohms | ±5% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
45J1K2ERES 1.2K OHM 5% 5W AXIAL Ohmite |
4,004 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1.2 kOhms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
