Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
604HR020ERES 0.02 OHM 3% 3/8W AXIAL Ohmite |
195 |
|
Datasheet |
60 | Bulk | Active | 20 mOhms | ±3% | 0.375W, 3/8W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.250" L (6.35mm) | - | 2 | - |
|
25J25KRES 25K OHM 5% 5W AXIAL Ohmite |
1,800 |
|
Datasheet |
20 | Bulk | Active | 25 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
WHB51RFERES 51 OHM 1% 1W AXIAL Ohmite |
825 |
|
Datasheet |
WH | Bulk | Active | 51 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
|
SM101031250DERES 125 OHM 0.5% 1/2W RADIAL Ohmite |
200 |
|
Datasheet |
Slim-Mox | Bulk | Active | 125 Ohms | ±0.5% | 0.5W, 1/2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.330" L x 0.100" W (8.38mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
SM104033303FERES 330K OHM 1% 1.5W RADIAL Ohmite |
290 |
|
Datasheet |
Slim-Mox | Bulk | Active | 330 kOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
MOX200001406FERES 140M OHM 1% 1/4W AXIAL Ohmite |
595 |
|
Datasheet |
Mini-Mox | Bulk | Active | 140 MOhms | ±1% | 0.25W, 1/4W | Thick Film | High Voltage, Moisture Resistant | 200ppm/°C | -55°C ~ 155°C | Axial | 0.087" Dia x 0.256" L (2.20mm x 6.50mm) | - | 2 | - |
|
20JR10E10W 0.1 OHMS VITREOUS 5% Ohmite |
188 |
|
Datasheet |
20 | Bulk | Active | 100 mOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|

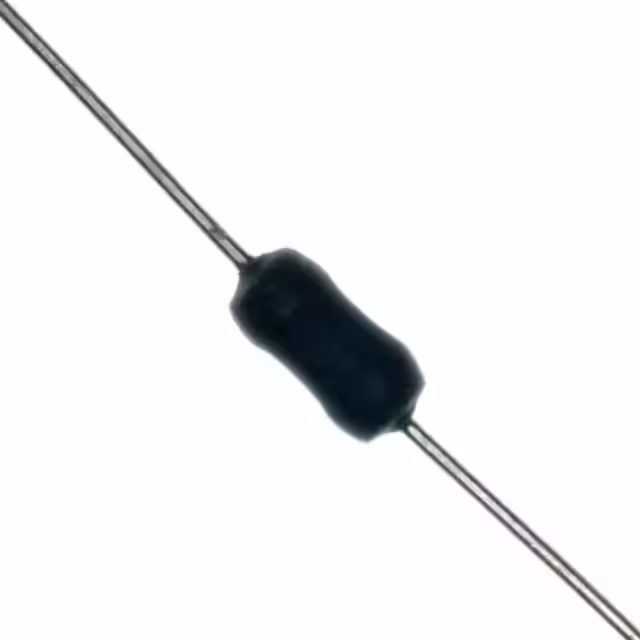

42J200E2W 200 OHMS SILICONE 5% Ohmite |
150 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 200 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
|
20J25RRES 25 OHM 5% 10W AXIAL Ohmite |
219 |
|
- |
20 | Box | Active | 25 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
|
ACS5S2R2J-TRES 2.2 OHM 5% 5W AXIAL Ohmite |
2,781 |
|
Datasheet |
ACS5S ACS10S | Tape & Reel (TR) | Discontinued at Digi-Key | 2.2 Ohms | ±5% | 5W | - | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.188" Dia x 0.500" L (4.78mm x 12.70mm) | - | 2 | - |
