Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21J270E1W 270 OHMS VITREOUS 5% Ohmite |
102 |
|
Datasheet |
20 | Bulk | Active | 27 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.157" Dia x 0.421" L (4.00mm x 10.70mm) | - | 2 | - |
|
TCH35P20R0JERES 20 OHM 5% 35W TO220 Ohmite |
379 |
|
Datasheet |
TCH | Tube | Active | 20 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|

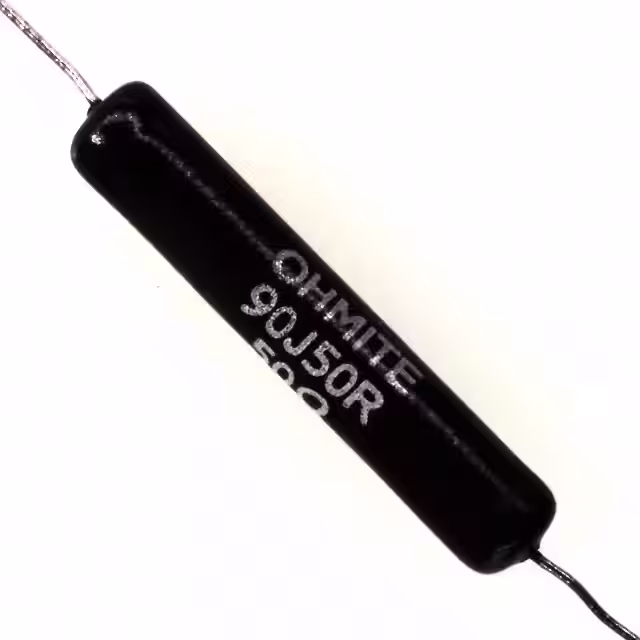

90J5R011W 5 OHMS VIT MOLD 5% Ohmite |
205 |
|
Datasheet |
90 | Bulk | Active | 5 Ohms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±100ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
|
610FPR050E1W 60 SER BR ELMNT 4T 0.050 1% C Ohmite |
175 |
|
Datasheet |
60 | Bulk | Active | 50 mOhms | ±1% | 1W | Metal Element | Current Sense | ±50ppm/°C | -55°C ~ 275°C | - | 1.100" L x 0.200" W (27.94mm x 5.08mm) | 0.215" (5.46mm) | 4 | - |
|
MOX-400233303FERES 330K OHM 1% 3/4W AXIAL Ohmite |
576 |
|
Datasheet |
Mini-Mox | Bulk | Active | 330 kOhms | ±1% | 0.75W, 3/4W | Thick Film | High Voltage | ±25ppm/°C | -55°C ~ 220°C | Axial | 0.165" Dia x 0.582" L (4.19mm x 14.78mm) | - | 2 | - |
|
95J1K2RES 1.2K OHM 5% 5W AXIAL Ohmite |
4,037 |
|
Datasheet |
90 | Bulk | Active | 1.2 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
13FPR040E3W 4 TERM 0.040 OHMS 1% Current Ohmite |
895 |
|
Datasheet |
10 | Bulk | Active | 40 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|
80FR1010w 0.1 Ohms Silicone 1% Ohmite |
371 |
|
Datasheet |
Acrasil® 80 | Bulk | Active | 100 mOhms | ±1% | 10W | Wirewound | - | ±90ppm/°C | - | Axial | 0.406" Dia x 1.843" L (10.30mm x 46.80mm) | - | 2 | - |
|
80F1K0RES 1K OHM 1% 10W AXIAL Ohmite |
108 |
|
Datasheet |
Acrasil® 80 | Bulk | Active | 1 kOhms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.843" L (10.30mm x 46.80mm) | - | 2 | - |
|
TAH20P150RJERES 150 OHM 5% 20W TO220 Ohmite |
130 |
|
Datasheet |
TAH | Tube | Active | 150 Ohms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | ±50ppm/°C | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
