Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

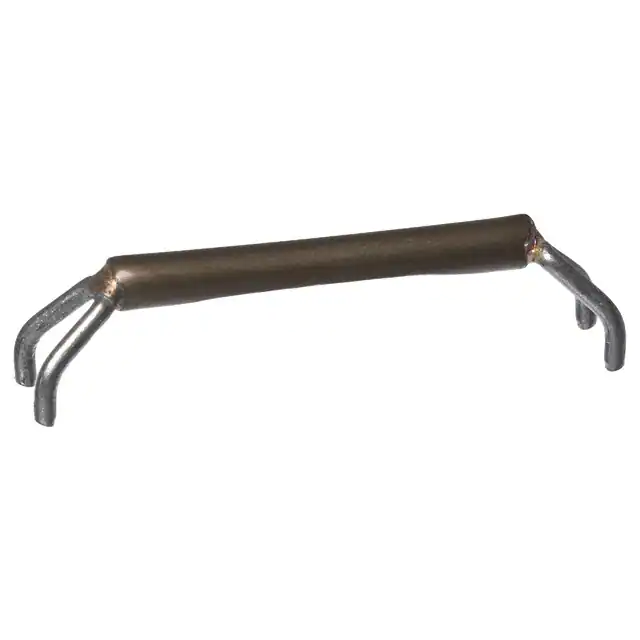

610FPR002ERES 0.002 OHM 1% 1W RADIAL Ohmite |
4,398 |
|
Datasheet |
60 | Bulk | Active | 2 mOhms | ±1% | 1W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 275°C | - | 1.100" L x 0.200" W (27.94mm x 5.08mm) | 0.215" (5.46mm) | 4 | - |
|
TAH20P100RJERES 100 OHM 5% 20W TO220 Ohmite |
942 |
|
Datasheet |
TAH | Bulk | Active | 100 Ohms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | ±50ppm/°C | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
SM204031006JRES 100M OHM 2W 5% RADIAL Ohmite |
2,905 |
|
Datasheet |
Slim-Mox | Bulk | Active | 100 MOhms | ±5% | 2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.590" (14.99mm) | 2 | - |
|
SM101035005JRES 50M OHM 10% 1/2W RADIAL Ohmite |
109 |
|
Datasheet |
Slim-Mox | Bulk | Active | 50 MOhms | ±10% | 0.5W, 1/2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.330" L x 0.100" W (8.38mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
91J470ERES 470 OHM 5% 1.5W AXIAL Ohmite |
4,476 |
|
Datasheet |
90 | Bulk | Active | 470 Ohms | ±5% | 1.5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.142" Dia x 0.453" L (3.60mm x 11.50mm) | - | 2 | - |
|
TEH100MR200JERES 0.2 OHM 5% 100W TO247-2 Ohmite |
114 |
|
Datasheet |
TEH100 | Tube | Active | 200 mOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | ±50ppm/°C | 175°C | TO-247-2 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.51mm) | 2 | - |
|
OC1K391ERES 390 OHM 10% 1.2W AXIAL Ohmite |
1,000 |
|
Datasheet |
OC | Bulk | Active | 390 Ohms | ±10% | 1.2W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|
|
OC2K471E-TRRES 470 OHM 10% 1.7W AXIAL Ohmite |
490 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 470 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
|
TEH100M10R0JERES 10 OHM 5% 100W TO247-2 Ohmite |
385 |
|
Datasheet |
TEH100 | Tube | Active | 10 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | ±50ppm/°C | 175°C | TO-247-2 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.51mm) | 2 | - |
|
90J50K11W 50K OHMS VIT MOLD 5% Ohmite |
750 |
|
Datasheet |
90 | Bulk | Active | 50 kOhms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
