Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
93J10KERES 10K OHM 5% 3.25W AXIAL Ohmite |
100 |
|
Datasheet |
90 | Bulk | Active | 10 kOhms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.233" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|
B20J3K0ERES 3K OHM 5% 20W AXIAL Ohmite |
1,451 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 3 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
95J2K5ERES 2.5K OHM 5% 5W AXIAL Ohmite |
2,118 |
|
Datasheet |
90 | Bulk | Active | 2.5 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
|
B8J100ERES 100 OHM 5% 8W AXIAL Ohmite |
4,898 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 100 Ohms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
|
|
B20J5K0ERES 5K OHM 5% 20W AXIAL Ohmite |
2,082 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 5 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
SM108031007FERESISTOR Ohmite |
2,325 |
|
Datasheet |
Super Mox | Bulk | Active | 1 GOhms | ±1% | 2.5W | Thick Film | Current Sense, High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 2.080" L x 0.100" W (52.83mm x 2.54mm) | - | 2 | - |
|
B20J30KERES 30K OHM 5% 20W AXIAL Ohmite |
1,475 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 30 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
95J5K0ERES 5K OHM 5% 5W AXIAL Ohmite |
3,476 |
|
Datasheet |
90 | Bulk | Active | 5 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
|
B20J75KERES 75K OHM 5% 20W AXIAL Ohmite |
2,393 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 75 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|

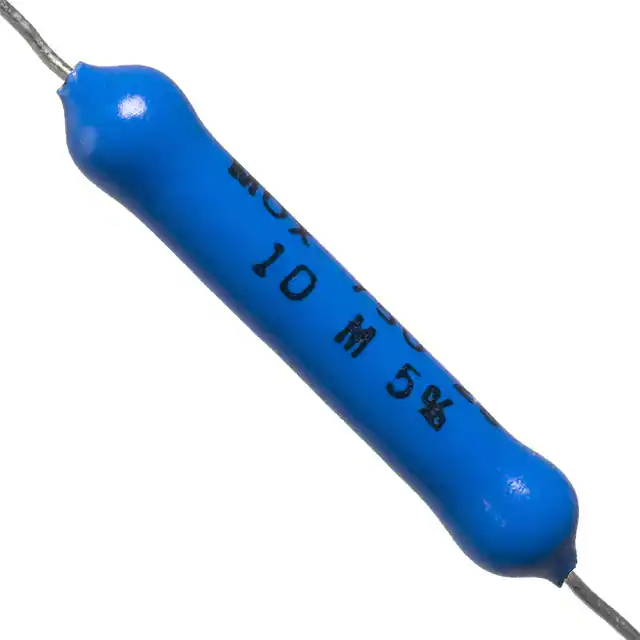

MOX-750231005JERES 10M OHM 5% 1W AXIAL Ohmite |
4,277 |
|
Datasheet |
Mini-Mox | Bulk | Active | 10 MOhms | ±5% | 1W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 220°C | Axial | 0.165" Dia x 0.880" L (4.19mm x 22.35mm) | - | 2 | - |
