Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TAH20PR100JERES 0.1 OHM 5% 20W TO220 Ohmite |
1,439 |
|
Datasheet |
TAH | Tube | Active | 100 mOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | - | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|
MOX-1-121007FERES 1 GOHM 1% 2.5W AXIAL Ohmite |
100 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 1 GOhms | ±1% | 2.5W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 210°C | Axial | 0.310" Dia x 1.120" L (7.87mm x 28.45mm) | - | 2 | - |
|
MOX-2N-131005FERES 10M OHM 1% 3W AXIAL Ohmite |
2,612 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 10 MOhms | ±1% | 3W | Thick Film | High Voltage, Non-Inductive | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.345" Dia x 2.140" L (8.76mm x 54.36mm) | - | 2 | - |
|

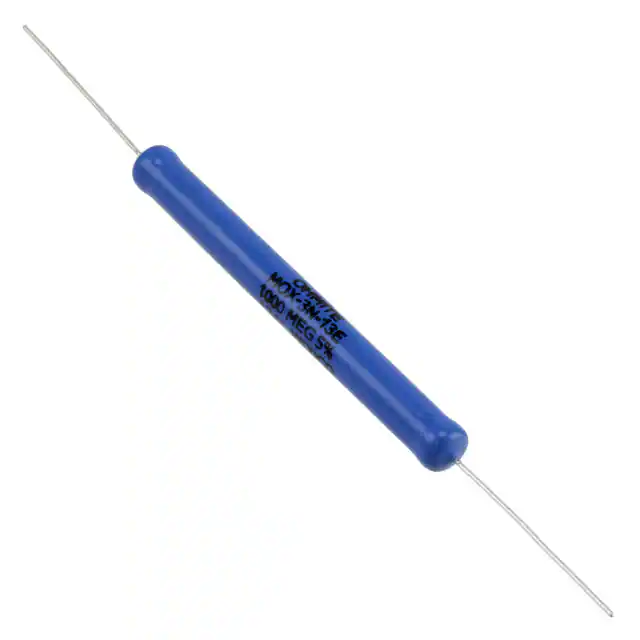

MOX-3N-131007JERES 1 GOHM 5% 4W AXIAL Ohmite |
1,333 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 1 GOhms | ±5% | 4W | Thick Film | High Voltage, Non-Inductive | ±50ppm/°C | -55°C ~ 210°C | Axial | 0.345" Dia x 3.140" L (8.76mm x 79.76mm) | - | 2 | - |
|

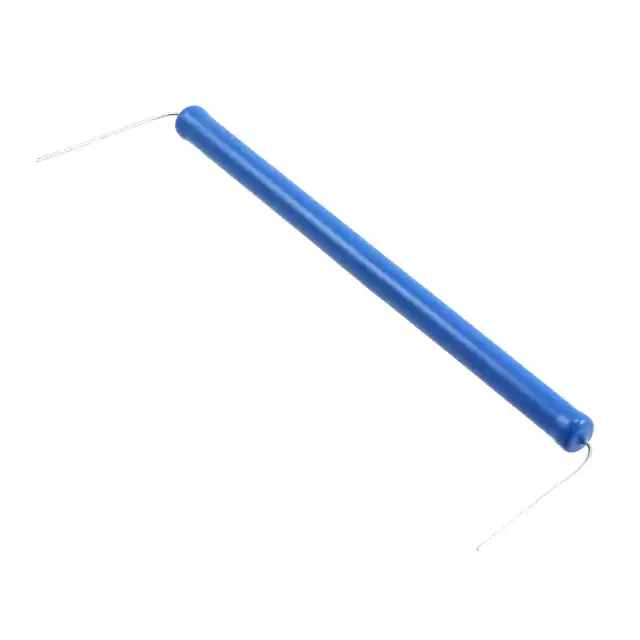

MOX-5N-131006FERES 100M OHM 1% 6W AXIAL Ohmite |
1,368 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 100 MOhms | ±1% | 6W | Thick Film | High Voltage, Non-Inductive | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.345" Dia x 5.140" L (8.76mm x 130.56mm) | - | 2 | - |
|
MOX-4N-131005FERES 10M OHM 1% 5W AXIAL Ohmite |
2,770 |
|
Datasheet |
Maxi-Mox | Bulk | Active | 10 MOhms | ±1% | 5W | Thick Film | High Voltage, Non-Inductive | ±25ppm/°C | -55°C ~ 210°C | Axial | 0.345" Dia x 4.140" L (8.76mm x 105.16mm) | - | 2 | - |
|
HSX-2W1004FE1 MEG HERMETICALLY SEALED Ohmite |
2,045 |
|
Datasheet |
HSX | Box | Active | 1 MOhms | ±1% | 2W | Ceramic | Moisture Resistant | ±25ppm/°C | -30°C ~ 75°C | Axial | 0.256" Dia x 1.063" L (6.50mm x 27.00mm) | - | 2 | - |
|
HSX-2W1005FE10 MEG HERMETICALLY SEALED Ohmite |
1,870 |
|
Datasheet |
HSX | Box | Active | 10 MOhms | ±1% | 2W | Ceramic | Moisture Resistant | ±25ppm/°C | -30°C ~ 75°C | Axial | 0.256" Dia x 1.063" L (6.50mm x 27.00mm) | - | 2 | - |
|
TUM3J200ERES 200 OHM 5% 3W AXIAL Ohmite |
910 |
|
Datasheet |
TUM | Bulk | Active | 200 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | - | Axial | 0.866" L x 0.315" W (22.00mm x 8.00mm) | 0.354" (9.00mm) | 2 | - |
|
|
TUW3J75RERES 75 OHM 5% 3W AXIAL Ohmite |
870 |
|
Datasheet |
TUW | Bulk | Active | 75 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±350ppm/°C | 275°C | Axial | 0.866" L x 0.315" W (22.00mm x 8.00mm) | 0.354" (9.00mm) | 2 | - |
