Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25J2R0RES 2 OHM 5% 5W AXIAL Ohmite |
1,465 |
|
Datasheet |
20 | Bulk | Active | 2 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±50ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
25J3R05W 3 OHMS VITREOUS 5% Ohmite |
3,714 |
|
Datasheet |
20 | Box | Active | 3 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±50ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
43J5R0E3W 5 OHMS SILICONE 5% Ohmite |
1,125 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 5 Ohms | ±5% | 3W | Wirewound | - | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
45J800ERES 800 OHM 5% 5W AXIAL Ohmite |
4,666 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 800 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|

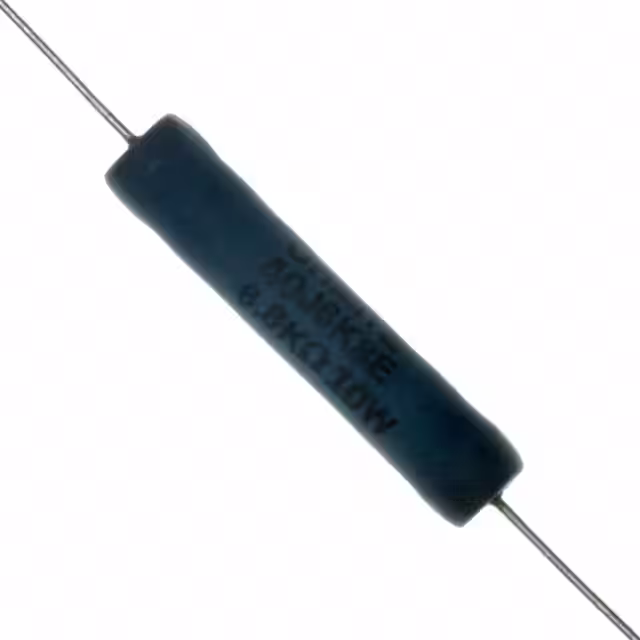

40J6K8ERES 6.8K OHM 5% 10W AXIAL Ohmite |
4,547 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 6.8 kOhms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
40F1K2ERES 1.2K OHM 1% 10W AXIAL Ohmite |
3,737 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1.2 kOhms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
40F900ERES 900 OHM 1% 10W AXIAL Ohmite |
4,044 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 900 Ohms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
22J25RERES 25 OHM 5% 2W AXIAL Ohmite |
4,320 |
|
Datasheet |
20 | Bulk | Active | 25 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.421" L (5.60mm x 10.70mm) | - | 2 | - |
|
22J200E2W 200 OHMS VITREOUS 5% Ohmite |
1,131 |
|
Datasheet |
20 | Box | Active | 200 Ohms | ±5% | 2W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.421" L (5.60mm x 10.70mm) | - | 2 | - |
|
23J7K0E3W 7K0 OHMS VITREOUS 5% Ohmite |
3,697 |
|
Datasheet |
20 | Box | Active | 7 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
