Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23J6K8E3W 6K8 OHMS VITREOUS 5% Ohmite |
2,091 |
|
Datasheet |
20 | Box | Active | 6.8 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
23J5K6E3W 5K6 OHMS VITREOUS 5% Ohmite |
2,365 |
|
Datasheet |
20 | Box | Active | 5.6 kOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
45F30RE5W 30 OHMS SILICONE 1% Ohmite |
4,458 |
|
Datasheet |
40 | Bulk | Active | 30 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
15FR015E-TRES 0.015 OHM 1% 5W AXIAL Ohmite |
2,610 |
|
Datasheet |
10 | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.331" Dia x 0.937" L (8.40mm x 23.80mm) | - | 2 | - |
|
40J3K5ERES 3.5K OHM 5% 10W AXIAL Ohmite |
3,939 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 3.5 kOhms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|

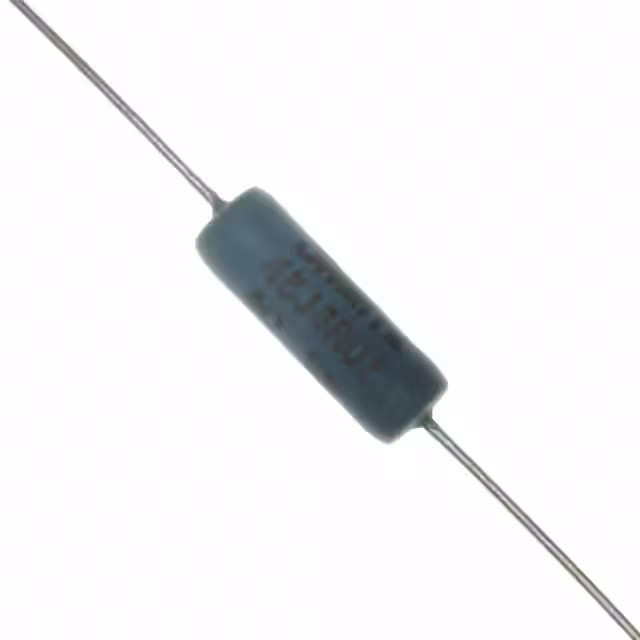

45J4R0ERES 4 OHM 5% 5W AXIAL Ohmite |
1,111 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 4 Ohms | ±5% | 5W | Wirewound | - | ±50ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
40F39RERES 39 OHM 1% 10W AXIAL Ohmite |
4,740 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 39 Ohms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
43J22RE3W 22 OHMS SILICONE 5% Ohmite |
2,309 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 22 Ohms | ±5% | 3W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
45JR15E5W 0.15 OHMS SILICONE 5% Ohmite |
1,756 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 150 mOhms | ±5% | 5W | Wirewound | - | ±90ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
43J20RE3W 20 OHMS SILICONE 5% Ohmite |
4,855 |
|
Datasheet |
Ohmicone® 40 | Box | Active | 20 Ohms | ±5% | 3W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
