Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
615HR010ERES 0.01 OHM 3% 1.5W AXIAL Ohmite |
9,442 |
|
Datasheet |
60 | Bulk | Active | 10 mOhms | ±3% | 1.5W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.750" L (19.05mm) | - | 2 | - |
|
43J56RERES 56 OHM 5% 3W AXIAL Ohmite |
200 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 56 Ohms | ±5% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
WHB560FETRES 560 OHM 1% 1W AXIAL Ohmite |
3,846 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 560 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
WHA100FETRES 100 OHM 1% 1/2W AXIAL Ohmite |
5,432 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 100 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|

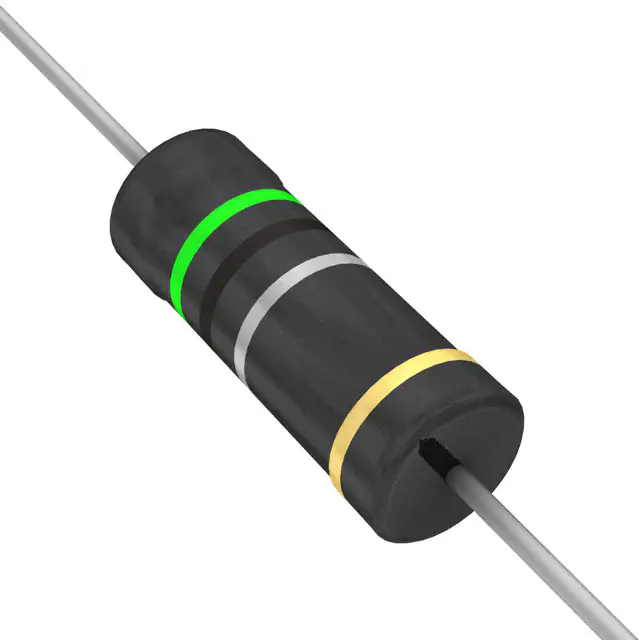

53JR50ERES 0.5 OHM 5% 3W AXIAL Ohmite |
990 |
|
Datasheet |
50 | Bulk | Active | 500 mOhms | ±5% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.551" L (5.60mm x 14.00mm) | - | 2 | - |
|

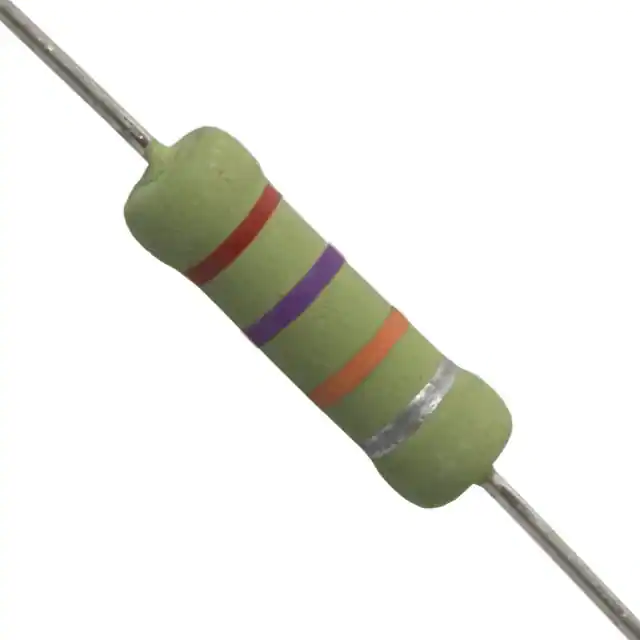

OX273KERES 27K OHM 10% 1W AXIAL Ohmite |
1,684 |
|
Datasheet |
OX | Bulk | Active | 27 kOhms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
630HR050ERES 0.05 OHM 3% 3W AXIAL Ohmite |
10,308 |
|
Datasheet |
60 | Bulk | Active | 50 mOhms | ±3% | 3W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 1.664" L (42.27mm) | - | 2 | - |
|
53J25RERES 25 OHM 5% 3W AXIAL Ohmite |
187 |
|
Datasheet |
50 | Bulk | Active | 25 Ohms | ±5% | 3W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.551" L (5.60mm x 14.00mm) | - | 2 | - |
|
WHA51RFETRES 51 OHM 1% 1/2W AXIAL Ohmite |
824 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 51 Ohms | ±1% | 0.5W, 1/2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
TWW5JR30ERES 0.3 OHM 5% 5W RADIAL Ohmite |
3,551 |
|
Datasheet |
TWW | Bulk | Active | 300 mOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
