Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

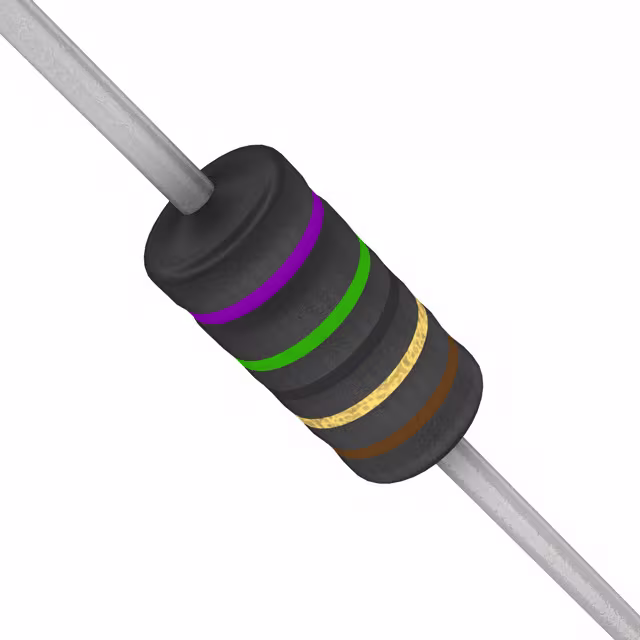

WNA75RFETRES 75 OHM 1% 1/2W AXIAL Ohmite |
3,262 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 75 Ohms | ±1% | 0.5W, 1/2W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|

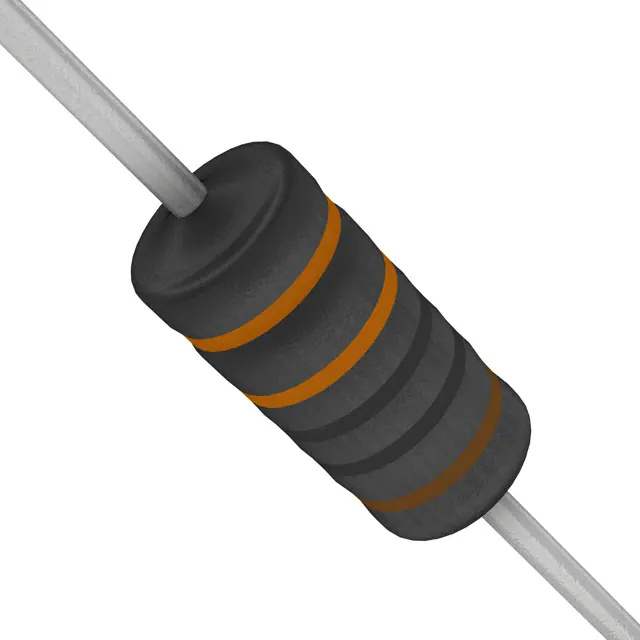

WNB330FETRES 330 OHM 1% 1W AXIAL Ohmite |
802 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 330 Ohms | ±1% | 1W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
610HR010ERES 0.01 OHM 3% 1W AXIAL Ohmite |
302 |
|
Datasheet |
60 | Bulk | Active | 10 mOhms | ±3% | 1W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.630" L (16.00mm) | - | 2 | - |
|

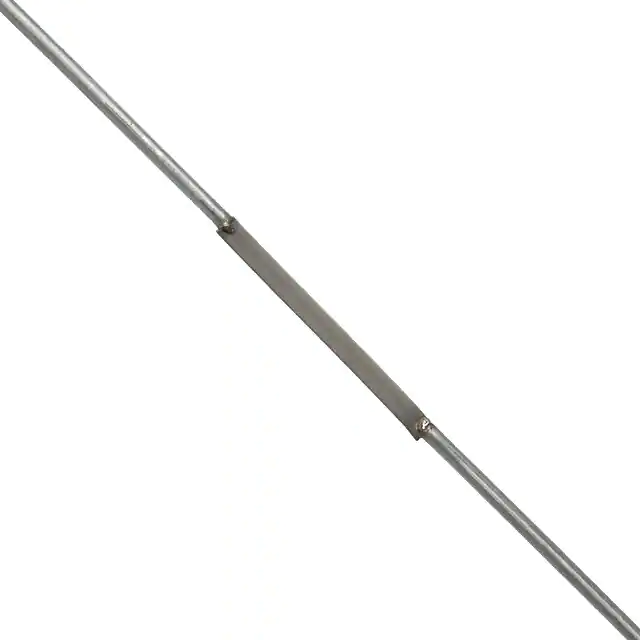

605HR100ERES 0.1 OHM 3% 1/2W AXIAL Ohmite |
117 |
|
Datasheet |
60 | Bulk | Active | 100 mOhms | ±3% | 0.5W, 1/2W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.750" L (19.05mm) | - | 2 | - |
|
630HR010ERES 0.01 OHM 3% 3W AXIAL Ohmite |
250 |
|
Datasheet |
60 | Bulk | Active | 10 mOhms | ±3% | 3W | Metal Element | Current Sense, Flame Proof, Non-Inductive, Safety | - | - | Axial | 0.781" L (19.84mm) | - | 2 | - |
|
23J68RERES 68 OHM 5% 3W AXIAL Ohmite |
124 |
|
Datasheet |
20 | Bulk | Active | 68 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
23JR50ERES 0.5 OHM 5% 3W AXIAL Ohmite |
6,659 |
|
Datasheet |
20 | Bulk | Active | 500 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|

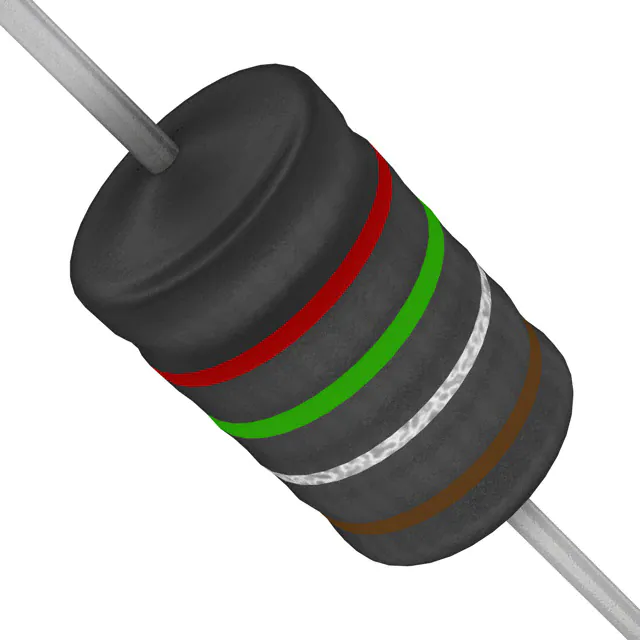

WHCR25FETRES 0.25 OHM 1% 2W AXIAL Ohmite |
5,762 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 250 mOhms | ±1% | 2W | Wirewound | - | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|

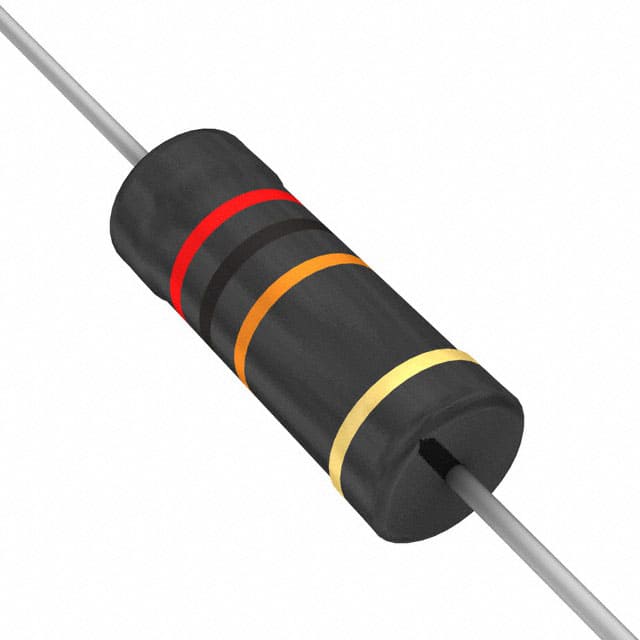

55J20KERES 20K OHM 5% 5W AXIAL Ohmite |
391 |
|
Datasheet |
50 | Bulk | Active | 20 kOhms | ±5% | 5W | Wirewound | - | ±30ppm/°C | - | Axial | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | - | 2 | - |
|
33J10RERES 10 OHM 5% 3W AXIAL Ohmite |
2,375 |
|
Datasheet |
High Energy Wirewound | Bulk | Active | 10 Ohms | ±5% | 3W | Wirewound | - | - | - | Axial | 0.217" Dia x 0.594" L (5.50mm x 15.10mm) | - | 2 | - |
