Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

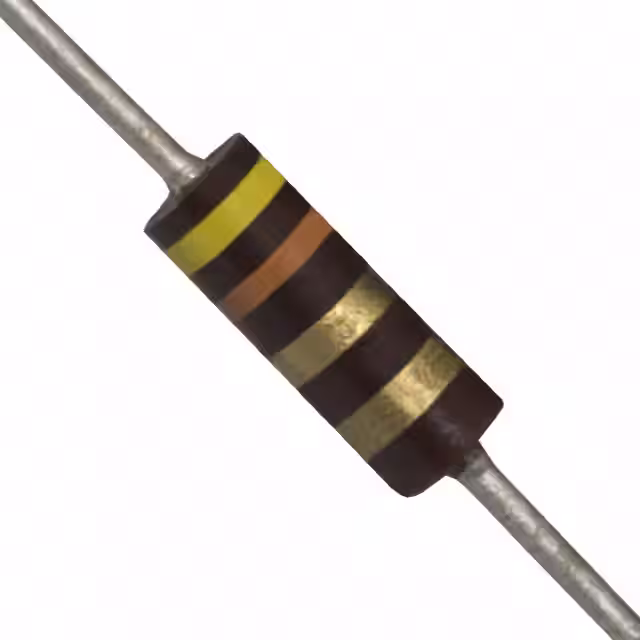

OD43GJE1/4 WATT CARBON COMP RESIST.5% Ohmite |
1,490 |
|
Datasheet |
Little Demon® OD | Strip | Active | 4.3 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
TWW3JR15ERES 0.15 OHM 5% 3W RADIAL Ohmite |
1,400 |
|
Datasheet |
TWW | Bulk | Active | 150 mOhms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
OF561JERES 560 OHM 5% 1/2W AXIAL Ohmite |
1,169 |
|
Datasheet |
Little Demon® OF | Bulk | Active | 560 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
TWM3J1K5ERES 1.5K OHM 5% 3W RADIAL Ohmite |
1,000 |
|
Datasheet |
TWM | Bulk | Active | 1.5 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
WHC4R0FETRES 4 OHM 1% 2W AXIAL Ohmite |
980 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 4 Ohms | ±1% | 2W | Wirewound | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
AP836 100R J35 Watts TO-220 Thick Film100 Oh Ohmite |
877 |
|
Datasheet |
35 Watts TO-220 High Power Resistors | Tube | Active | 100 Ohms | ±5% | 35W | Thick Film | Non-Inductive | ±100ppm/°C | -65°C ~ 150°C | TO-220-2 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.748" (19.00mm) | 2 | - |
|
13FPR015E3W 4 TERM 0.015 OHMS 1% Current Ohmite |
700 |
|
Datasheet |
10 | Bulk | Active | 15 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|
MOX5002703GSERES 270K OHM 2% 2W AXIAL Ohmite |
663 |
|
Datasheet |
MOX500 | Bulk | Active | 270 kOhms | ±2% | 2W | Metal Oxide Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
|
TWM10J3K9ERES 3.9K OHM 5% 10W RADIAL LEAD Ohmite |
650 |
|
Datasheet |
TWM | Bulk | Active | 3.9 kOhms | ±5% | 10W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial Lead | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 2.008" (51.00mm) | 2 | - |
|
|
TWW10J27RERES 27 OHM 5% 10W RADIAL Ohmite |
600 |
|
Datasheet |
TWW | Bulk | Active | 27 Ohms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 2.008" (51.00mm) | 2 | - |
