Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX1125232004JRES 2M OHM 5% 1.5W AXIAL Ohmite |
100 |
|
Datasheet |
Mini-Mox | Bulk | Active | 2 MOhms | ±5% | 1.5W | Thick Film | High Voltage | ±25ppm/°C | -55°C ~ 220°C | Axial | 0.165" Dia x 1.270" L (4.19mm x 32.26mm) | - | 2 | - |
|
90J1K5ERES 1.5K OHM 5% 11W AXIAL Ohmite |
100 |
|
Datasheet |
90 | Bulk | Active | 1.5 kOhms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
|
41F330E1W 330 OHMS SILICONE 1% Ohmite |
1,726 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 330 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
93J300E3.25W 300 OHMS VIT MOLD 5% Ohmite |
4,799 |
|
Datasheet |
90 | Bulk | Active | 300 Ohms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.233" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|
14AFR004E0.004 OHM 1% ALUMINA CS AXIAL Cu Ohmite |
3,001 |
|
Datasheet |
14A | Bulk | Active | 4 mOhms | ±1% | 4W | Metal Element | Current Sense | - | -55°C ~ 275°C | Axial | 0.252" Dia x 0.709" L (6.40mm x 18.00mm) | - | 2 | - |
|
WHB250FERES 250 OHM 1% 1W AXIAL Ohmite |
1,322 |
|
Datasheet |
WH | Bulk | Active | 250 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|

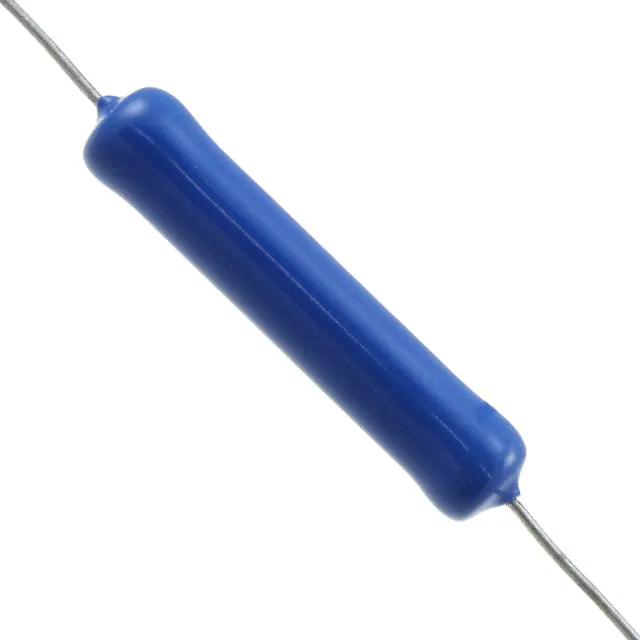

EY153KERES 15K OHM 10% 2.5W AXIAL Ohmite |
2,279 |
|
Datasheet |
EY | Bulk | Active | 15 kOhms | ±10% | 2.5W | Ceramic | Moisture Resistant | -1500/ -900ppm/°C | -40°C ~ 110°C | - | 0.370" Dia x 1.819" L (9.40mm x 46.20mm) | - | 2 | - |
|
|
MOX-400239006FERES 900M OHM 1% 3/4W AXIAL Ohmite |
1,629 |
|
Datasheet |
Mini-Mox | Bulk | Active | 900 MOhms | ±1% | 0.75W, 3/4W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 220°C | Axial | 0.165" Dia x 0.582" L (4.19mm x 14.78mm) | - | 2 | - |
|
TEH100MR100JERES 0.1 OHM 5% 100W TO247-2 Ohmite |
1,387 |
|
Datasheet |
TEH100 | Tube | Active | 100 mOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | ±50ppm/°C | - | TO-247-2 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.51mm) | 2 | - |
|
|
40F6K0E10W 6K0 OHMS SILICONE 1% Ohmite |
2,820 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 6 kOhms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
