Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25J10R5W 10 OHMS VITREOUS 5% NON ROHS Ohmite |
1,419 |
|
Datasheet |
20 | Bulk | Active | 10 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
27J12K7W 12K OHMS VITREOUS 5% NON ROHS Ohmite |
4,970 |
|
Datasheet |
20 | Bulk | Active | 12 kOhms | ±5% | 7W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.264" L (10.00mm x 32.10mm) | - | 2 | - |
|
OD333JERES 33K OHM 5% 1/4W AXIAL Ohmite |
3,594 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 33 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
OD183JERES 18K OHM 5% 1/4W AXIAL Ohmite |
2,059 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 18 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
SM204031002JERES 10K OHM 5% 2W RADIAL Ohmite |
2,513 |
|
Datasheet |
Slim-Mox | Bulk | Active | 10 kOhms | ±5% | 2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.590" (14.99mm) | 2 | - |
|
B5J51R5.25W 51 OHMS VIT 5% Ohmite |
4,874 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 51 Ohms | ±5% | 5.25W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | - | 2 | - |
|
43F2R0E3W 2 OHMS SILICONE 1% Ohmite |
3,234 |
|
Datasheet |
40 | Bulk | Active | 2 Ohms | ±1% | 3W | Wirewound | - | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
TCH35P750RJERES 750 OHM 5% 35W TO220 Ohmite |
3,341 |
|
Datasheet |
TCH | Tube | Active | 750 Ohms | ±5% | 35W | Thick Film | Moisture Resistant | ±50ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|

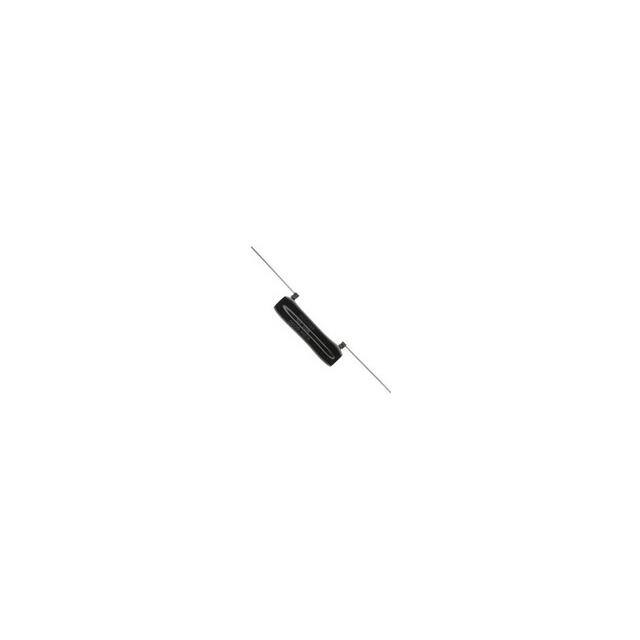

B5J1R0E5.25W 1 OHMS VIT 5% Ohmite |
3,107 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 1 Ohms | ±5% | 5.25W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | Axial | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | - | 2 | - |
|
|
B8J12K5E8W 12500 OHMS VIT 5% Ohmite |
4,512 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 12.5 kOhms | ±5% | 8W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | Axial | 0.313" Dia x 1.000" L (7.94mm x 25.40mm) | - | 2 | - |
