Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
43FR753W 0.75 OHMS SILICONE 1% NON ROH Ohmite |
1,429 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 750 mOhms | ±1% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
SM104035003FRES 500K OHM 1.5W 1% RADIAL Ohmite |
4,831 |
|
Datasheet |
Slim-Mox | Bulk | Active | 500 kOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

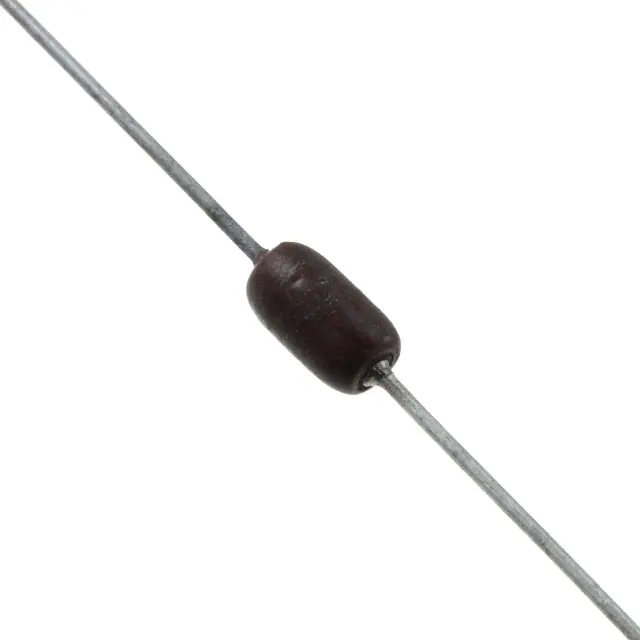

22J2K22W 2K2 OHMS VITREOUS 5% NON ROHS Ohmite |
4,012 |
|
Datasheet |
20 | Bulk | Active | 2.2 kOhms | ±5% | 2W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.421" L (5.60mm x 10.70mm) | - | 2 | - |
|
40F600E10W 600 OHMS SILICONE 1% Ohmite |
3,860 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 600 Ohms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
95J1K4E5W 1K4 OHMS VIT MOLD 5% Ohmite |
2,264 |
|
Datasheet |
90 | Bulk | Active | 1.4 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
25J10K5W 10K OHMS VITREOUS 5% NON ROHS Ohmite |
3,251 |
|
Datasheet |
20 | Bulk | Active | 10 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
43J68RE3W 68 OHMS SILICONE 5% Ohmite |
3,790 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 68 Ohms | ±5% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
43F4K03W 4K OHMS SILICONE 1% NON ROHS Ohmite |
2,477 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 4 kOhms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
92J3302.25W 330 OHMS VIT MOLD 5% Ohmite |
1,879 |
|
Datasheet |
90 | Bulk | Active | 330 Ohms | ±5% | 2.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
|
25J18KE5W 18K OHMS VITREOUS 5% Ohmite |
4,462 |
|
Datasheet |
20 | Bulk | Active | 18 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
