Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEH100MR050JERES 0.05 OHM 5% 100W TO247 Ohmite |
109 |
|
Datasheet |
TEH100 | Tube | Active | 50 mOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | - | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
TEH100M3R00JERES 3 OHM 5% 100W TO247 Ohmite |
255 |
|
Datasheet |
TEH100 | Tube | Active | 3 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 100ppm/°C | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
B20J3K0RES 3K OHM 5% 20W AXIAL Ohmite |
149 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 3 kOhms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
TA025PW51R0JERES 51 OHM 5% 25W POWERCHIP Ohmite |
111 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 51 Ohms | ±5% | 25W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 2.220" L x 0.240" W (56.39mm x 6.10mm) | 1.189" (30.21mm) | 4 | - |
|
TCH35PR330JERES 0.33 OHM 5% 35W TO220 Ohmite |
112 |
|
Datasheet |
TCH | Tube | Active | 330 mOhms | ±5% | 35W | Thick Film | Moisture Resistant | ±700ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
|
TEH100M20R0JERES 20 OHM 5% 100W TO247 Ohmite |
313 |
|
Datasheet |
TEH100 | Tube | Active | 20 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 50ppm/°C | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|

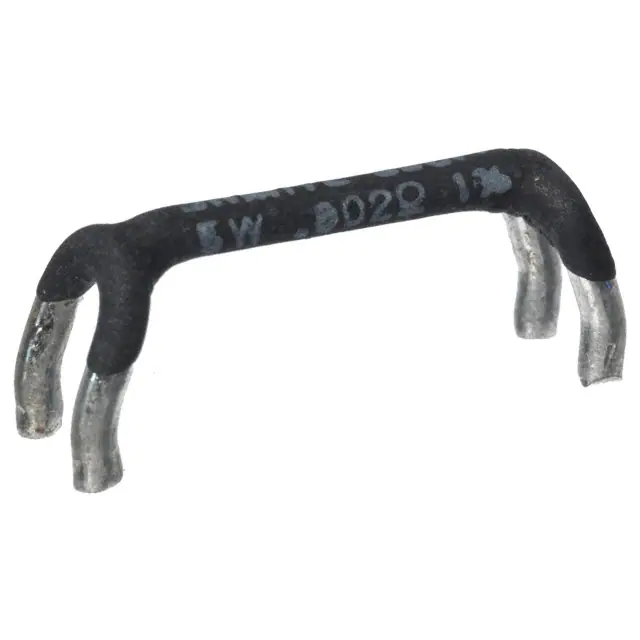

650FPR002ERES 0.002 OHM 1% 5W RADIAL Ohmite |
176 |
|
Datasheet |
60 | Bulk | Active | 2 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 275°C | Radial Lead | 1.400" L x 0.250" W (35.56mm x 6.35mm) | 0.450" (11.43mm) | 4 | - |
|

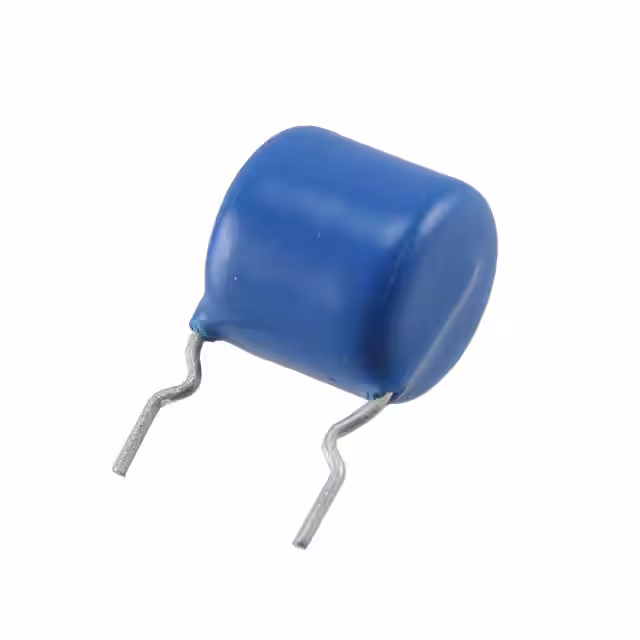

AV33GKERES 3.3 OHM 10% 2W RADIAL Ohmite |
417 |
|
Datasheet |
PulsEater® A | Bulk | Active | 3.3 Ohms | ±10% | 2W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | - | 0.591" L x 0.512" W (15.00mm x 13.00mm) | 0.866" (22.00mm) | 2 | - |
|
AX101KERES 100 OHM 10% 3.5W RADIAL Ohmite |
167 |
|
Datasheet |
PulsEater® A | Bulk | Active | 100 Ohms | ±10% | 3.5W | Ceramic | Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety | - | -55°C ~ 150°C | Radial Lead | 0.591" L x 0.827" W (15.00mm x 21.00mm) | 1.102" (28.00mm) | 2 | - |
|
252AS101KDSRES 100 OHM 10% 6W AXIAL Ohmite |
1,549 |
|
Datasheet |
200 | Box | Active | 100 Ohms | ±10% | 6W | Ceramic | Moisture Resistant, Non-Inductive, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.437" Dia x 2.126" L (11.10mm x 54.00mm) | - | 2 | - |
