Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OC2K151E-TRRES 150 OHM 10% 1.7W AXIAL Ohmite |
200 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 150 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
|
OC2K181E-TRRES 180 OHM 10% 1.7W AXIAL Ohmite |
245 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 180 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
TA205PA10R0JERES 10 OHM 5% 5W POWERCHIP Ohmite |
138 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 10 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|

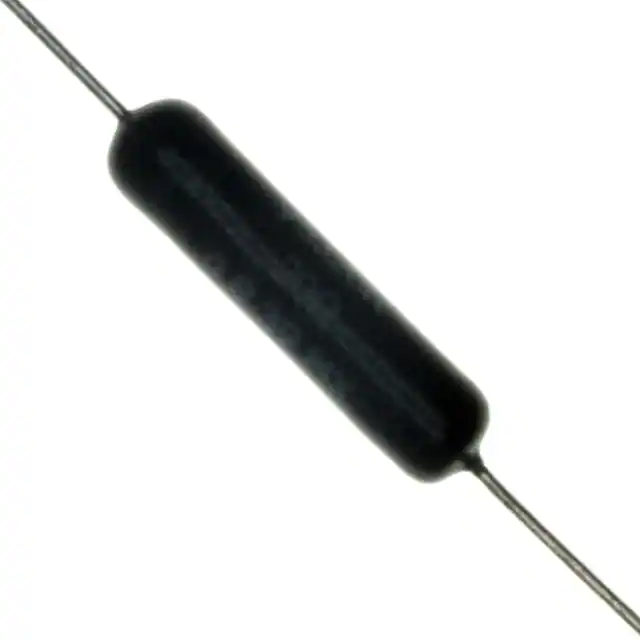

95J20RRES 20 OHM 5% 5W AXIAL Ohmite |
123 |
|
Datasheet |
90 | Bulk | Active | 20 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
TA810PW5R10JERES 5.1 OHM 5% 10W POWERCHIP Ohmite |
122 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 5.1 Ohms | ±5% | 10W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|
TEH100M24R0JERES 24 OHM 5% 100W TO247 Ohmite |
283 |
|
Datasheet |
TEH100 | Tube | Active | 24 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 50ppm/°C | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
TP810PW20R0JERES 20 OHM 5% 10W RADIAL Ohmite |
340 |
|
Datasheet |
TP | Bulk | Active | 20 Ohms | ±5% | 10W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | - | - | 1.000" L x 0.240" W (25.40mm x 6.10mm) | 1.020" (25.91mm) | 2 | - |
|
EY102KERES 1K OHM 10% 2.5W AXIAL Ohmite |
185 |
|
Datasheet |
EY | Bulk | Not For New Designs | 1 kOhms | ±10% | 2.5W | Ceramic | Moisture Resistant | -1500/ -900ppm/°C | -40°C ~ 110°C | - | 0.370" Dia x 1.819" L (9.40mm x 46.20mm) | - | 2 | - |
|
AP101 390R JRES 390 OHM 5% 100W TO247 Ohmite |
686 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 390 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
AP101 4K3 JRES 4.3K OHM 5% 100W TO247 Ohmite |
508 |
|
Datasheet |
ARCOL, AP101 | Tray | Active | 4.3 kOhms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
