Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

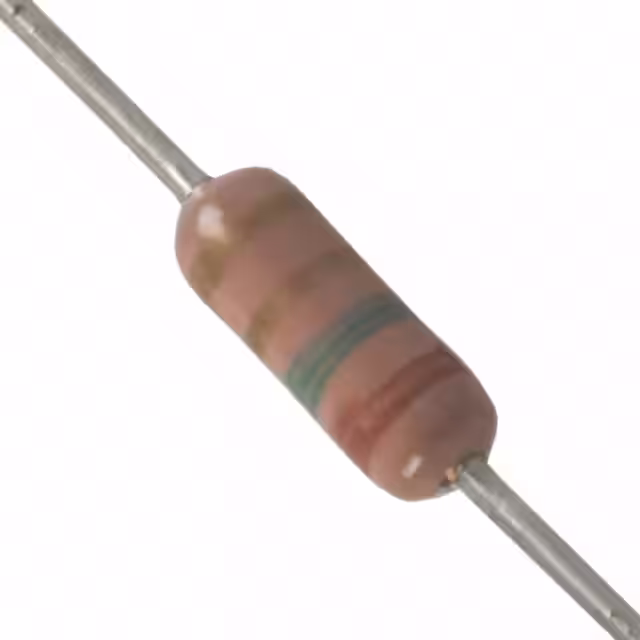

ERD-S1TJ1R5VRES 1.5 OHM 5% 1/2W AXIAL Panasonic Electronic Components |
572 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 1.5 Ohms | ±5% | 0.5W, 1/2W | Carbon Film | - | ±350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

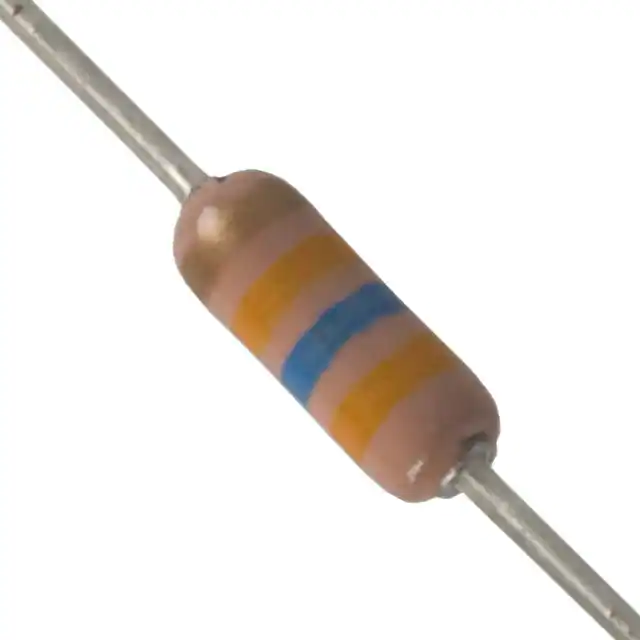

ERD-S1TJ363VRES 36K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
408 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 36 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

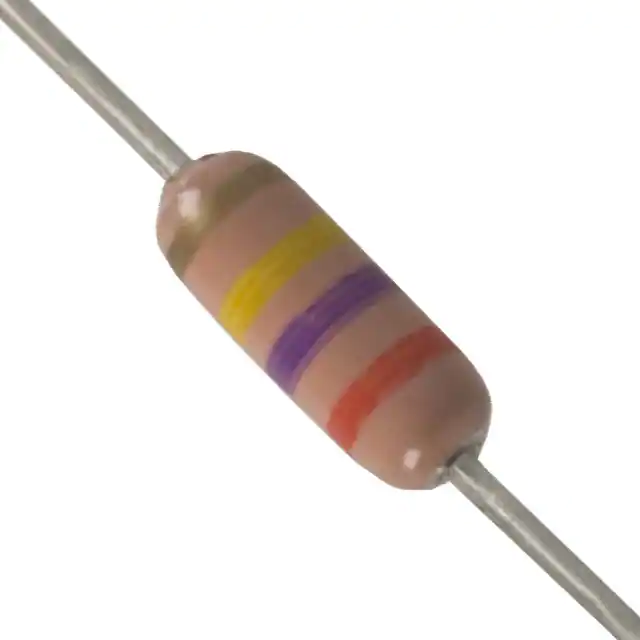

ERD-S1TJ274VRES 270K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
154 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 270 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -500ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|

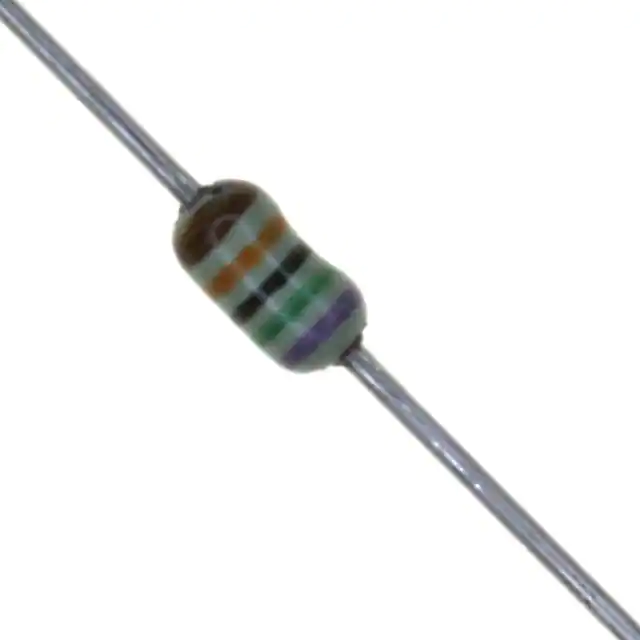

ERO-S2PHF7503RES 750K OHM 1% 1/4W AXIAL Panasonic Electronic Components |
939 |
|
Datasheet |
ERO | Cut Tape (CT) | Obsolete | 750 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

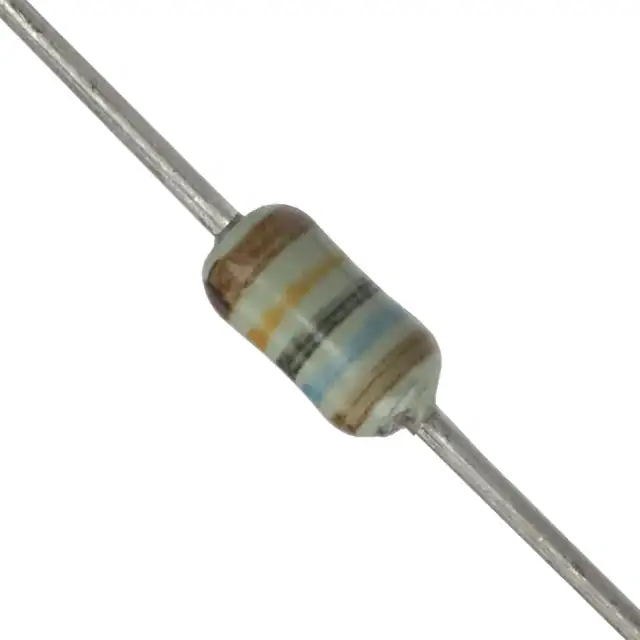

ERO-S2PHF1603RES 160K OHM 1% 1/4W AXIAL Panasonic Electronic Components |
870 |
|
Datasheet |
ERO | Cut Tape (CT) | Obsolete | 160 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

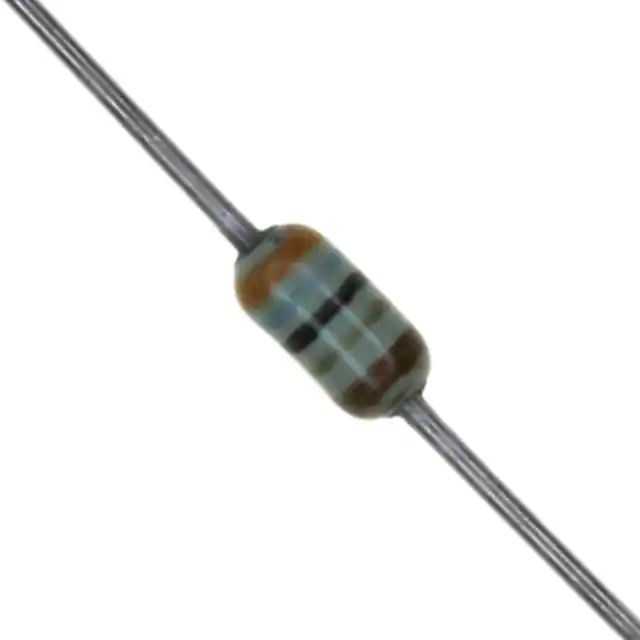

ERO-S2PHF36R0RES 36 OHM 1% 1/4W AXIAL Panasonic Electronic Components |
615 |
|
Datasheet |
ERO | Cut Tape (CT) | Obsolete | 36 Ohms | ±1% | 0.25W, 1/4W | Metal Film | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

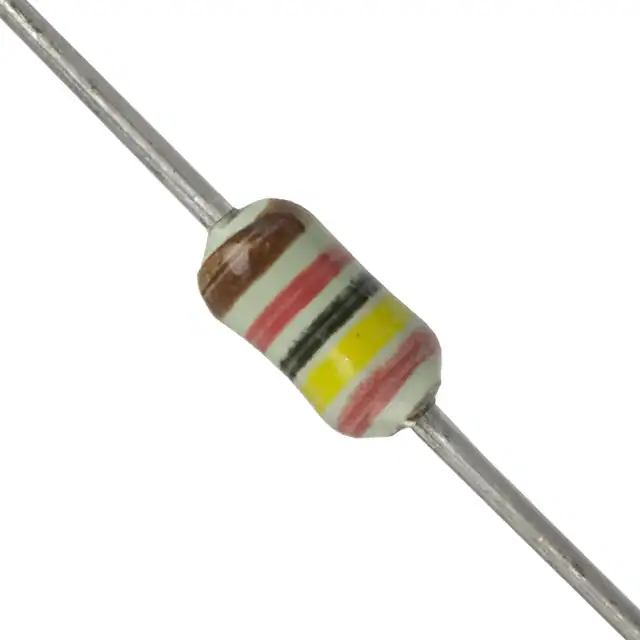

ERO-S2PHF2402RES 24K OHM 1% 1/4W AXIAL Panasonic Electronic Components |
590 |
|
Datasheet |
ERO | Cut Tape (CT) | Obsolete | 24 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

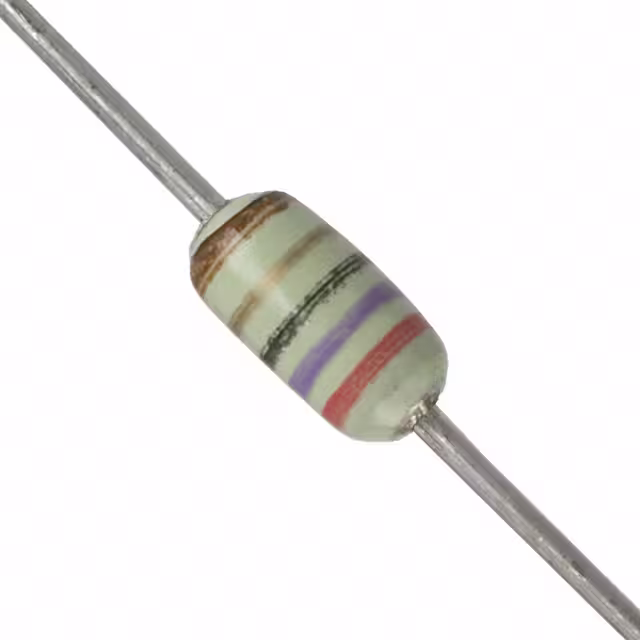

ERO-S2PHF27R0RES 27 OHM 1% 1/4W AXIAL Panasonic Electronic Components |
546 |
|
Datasheet |
ERO | Cut Tape (CT) | Obsolete | 27 Ohms | ±1% | 0.25W, 1/4W | Metal Film | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

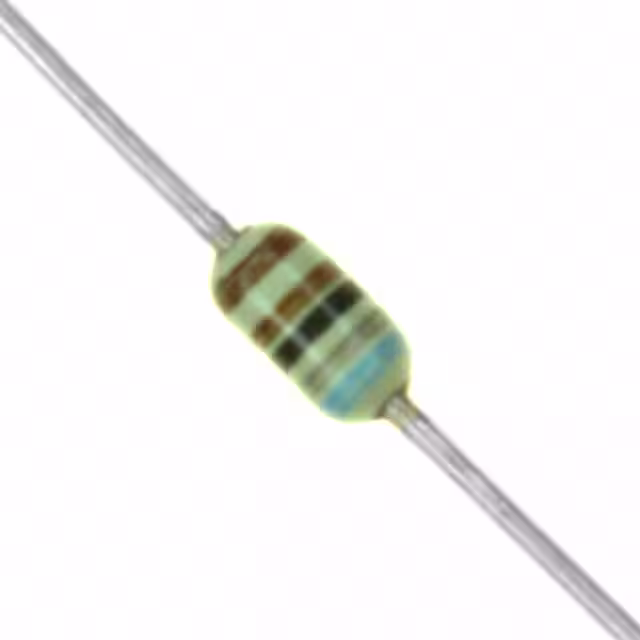

ERO-S2PHF6801RES 6.8K OHM 1% 1/4W AXIAL Panasonic Electronic Components |
518 |
|
Datasheet |
ERO | Cut Tape (CT) | Obsolete | 6.8 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

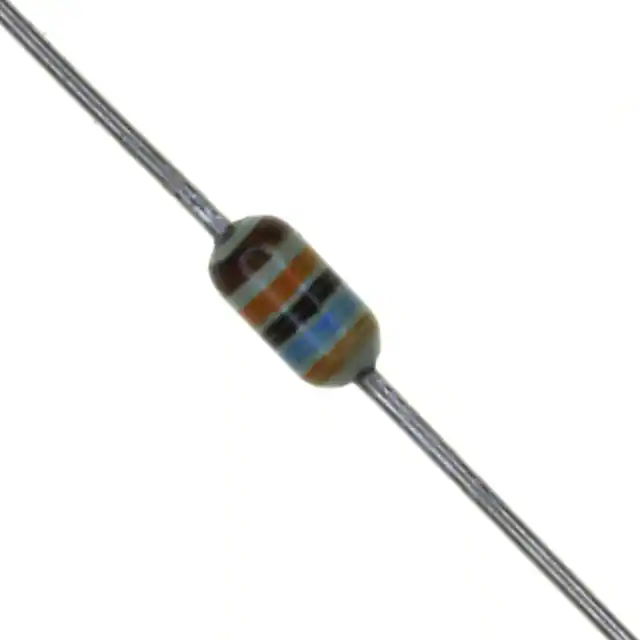

ERO-S2PHF3603RES 360K OHM 1% 1/4W AXIAL Panasonic Electronic Components |
345 |
|
Datasheet |
ERO | Cut Tape (CT) | Obsolete | 360 kOhms | ±1% | 0.25W, 1/4W | Metal Film | - | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
