Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERG-3SJ110RES 11 OHM 5% 3W AXIAL Panasonic Electronic Components |
1,163 |
|
Datasheet |
ERG | Bulk | Obsolete | 11 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ160RES 16 OHM 5% 3W AXIAL Panasonic Electronic Components |
1,047 |
|
Datasheet |
ERG | Bulk | Obsolete | 16 Ohms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
ERX-3SJ2R0RES 2 OHM 5% 3W AXIAL Panasonic Electronic Components |
24,777 |
|
Datasheet |
ERX | Bulk | Obsolete | 2 Ohms | ±5% | 3W | Metal Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ563RES 56K OHM 5% 3W AXIAL Panasonic Electronic Components |
1,587 |
|
Datasheet |
ERG | Bulk | Obsolete | 56 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|
|
ERG-3SJ182RES 1.8K OHM 5% 3W AXIAL Panasonic Electronic Components |
1,439 |
|
Datasheet |
ERG | Bulk | Obsolete | 1.8 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±300ppm/°C | -55°C ~ 235°C | Axial | 0.217" Dia x 0.591" L (5.50mm x 15.00mm) | - | 2 | - |
|

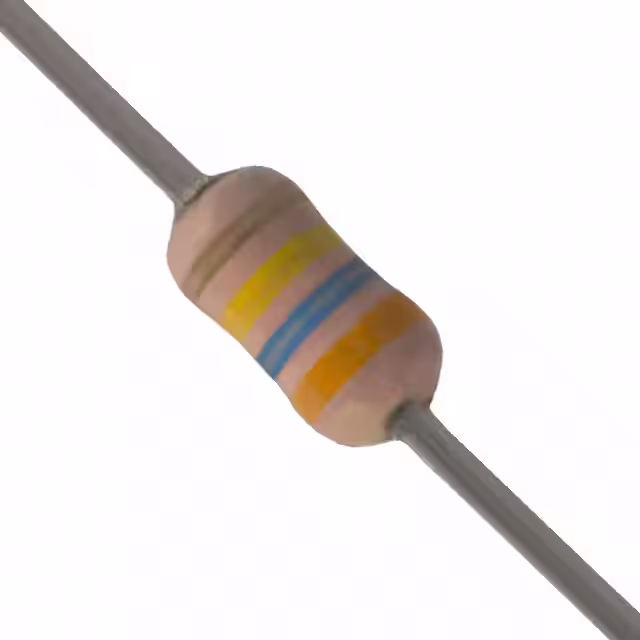

ERD-S2TJ364VRES 360K OHM 5% 1/4W AXIAL Panasonic Electronic Components |
905 |
|
Datasheet |
ERDS2 | Cut Tape (CT) | Obsolete | 360 kOhms | ±5% | 0.25W, 1/4W | Carbon Film | - | -150/ -700ppm/°C | -55°C ~ 155°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

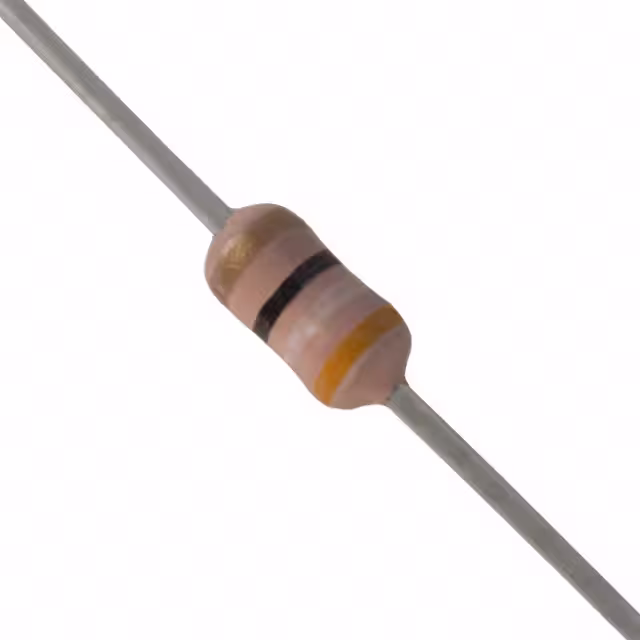

ERD-S2TJ390VRES 39 OHM 5% 1/4W AXIAL Panasonic Electronic Components |
507 |
|
Datasheet |
ERDS2 | Cut Tape (CT) | Obsolete | 39 Ohms | ±5% | 0.25W, 1/4W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

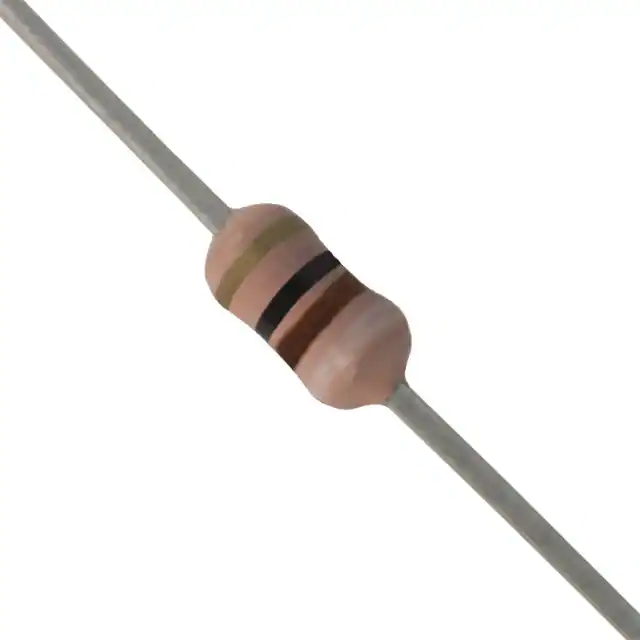

ERD-S2TJ910VRES 91 OHM 5% 1/4W AXIAL Panasonic Electronic Components |
125 |
|
Datasheet |
ERDS2 | Cut Tape (CT) | Obsolete | 91 Ohms | ±5% | 0.25W, 1/4W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.067" Dia x 0.126" L (1.70mm x 3.20mm) | - | 2 | - |
|

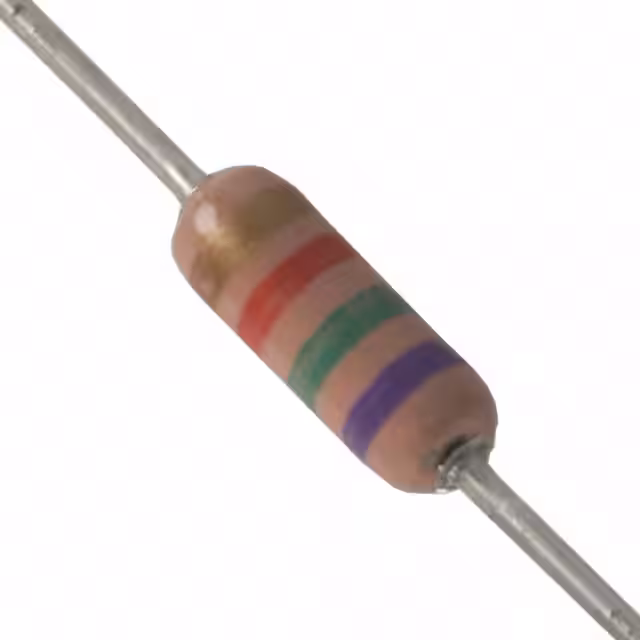

ERD-S1TJ752VRES 7.5K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
875 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 7.5 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
|
ERD-S1TJ242VRES 2.4K OHM 5% 1/2W AXIAL Panasonic Electronic Components |
768 |
|
Datasheet |
ERDS1 | Cut Tape (CT) | Obsolete | 2.4 kOhms | ±5% | 0.5W, 1/2W | Carbon Film | - | -150/ -350ppm/°C | -55°C ~ 155°C | Axial | 0.091" Dia x 0.250" L (2.30mm x 6.35mm) | - | 2 | - |
