Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G3T18APSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
2,549 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.81mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|

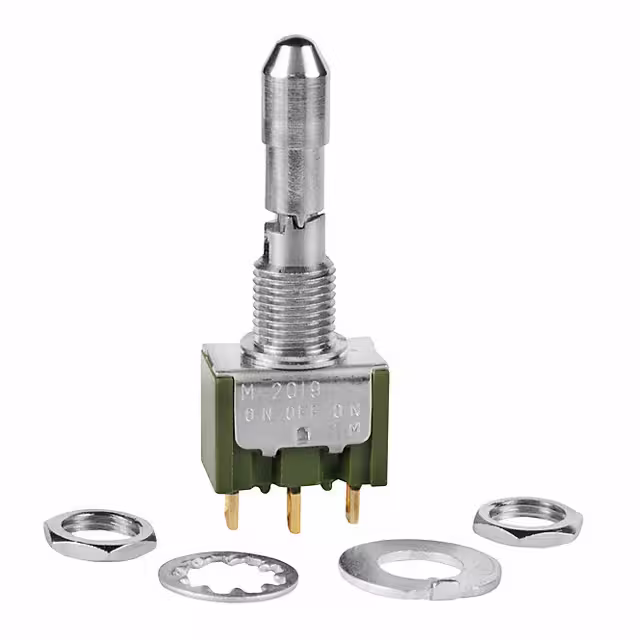

M2019LL1G01SWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,200 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

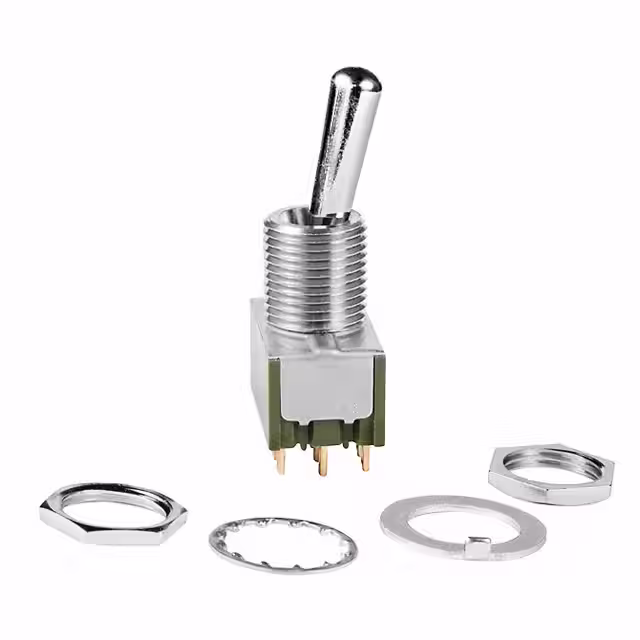

M2042B2B1G01SWITCH TOGGLE 4PDT 0.4VA 28V NKK Switches |
3,185 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22ABSWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
4,579 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2029BB1W01SWITCH TOGGLE DPDT 6A 125V NKK Switches |
1,459 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2024EA2W13SWITCH TOGGLE SP3T 6A 125V NKK Switches |
1,377 |
|
- |
M | Bulk | Obsolete | Through Hole | SP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2018SS1W40SWITCH TOGGLE SPDT 6A 125V NKK Switches |
1,980 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A28KB-BASWITCH TOGGLE DPDT 0.4VA 28V NKK Switches |
4,514 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
|
MN11SD3W01-BASWITCH TOGGLE NKK Switches |
2,979 |
|
- |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN11BB1W03BUSHING MOUNT MINIATURE TOGGLE NKK Switches |
3,665 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
