Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2032SS1A01SWITCH TOGGLE 3PDT 6A 125V NKK Switches |
2,096 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2013SS2W13SWITCH TOGGLE SPDT 6A 125V NKK Switches |
4,784 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A18KPSWITCH TOGGLE SPDT 0.4VA 28V NKK Switches |
4,477 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A24KH-BASWITCH TOGGLE SP3T 0.4VA 28V NKK Switches |
3,033 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2048ES1W01SWITCH TOGGLE 4PDT 6A 125V NKK Switches |
4,734 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

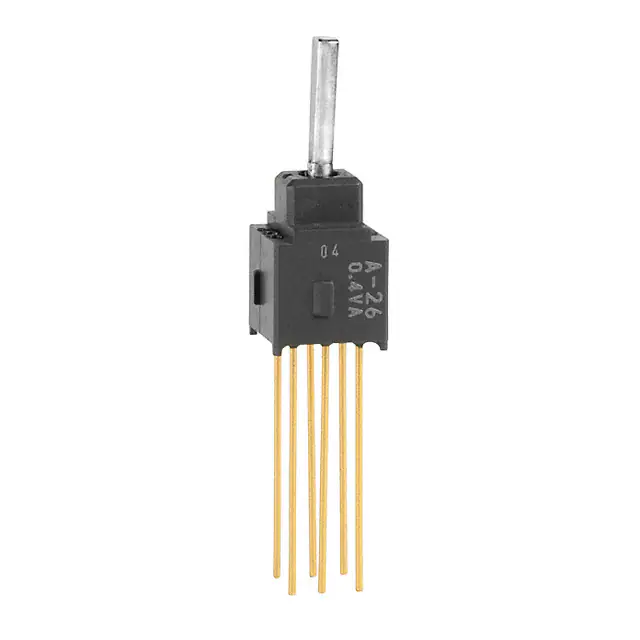

A26EWSWITCH TOGGLE SP3T 0.4VA 28V NKK Switches |
2,710 |
|
Datasheet |
A | Tube | Active | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

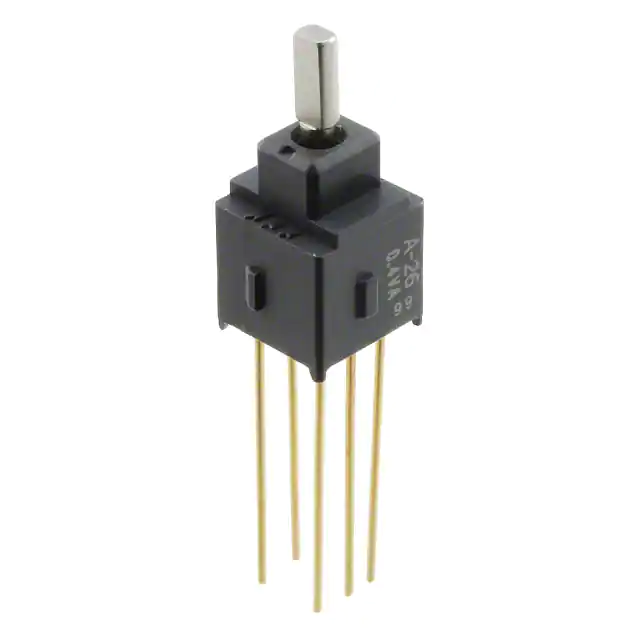

A26HWSWITCH TOGGLE SP3T 0.4VA 28V NKK Switches |
1,898 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

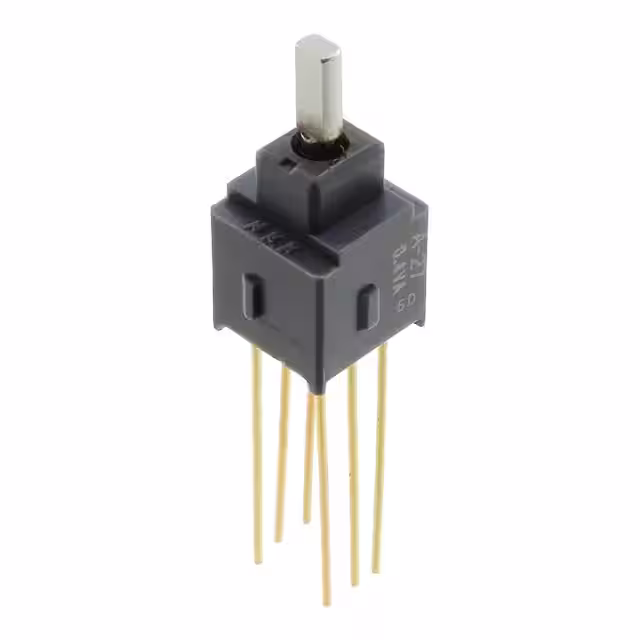

A27HWSWITCH TOGGLE SP3T 0.4VA 28V NKK Switches |
4,359 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | On-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2015SA2G13BRACKET PC MOUNT MINIATURE TOGGL NKK Switches |
2,341 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN12SA2W13-BASWITCH TOGGLE NKK Switches |
1,426 |
|
- |
M | Bulk | Active | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
