Omron Electronics Inc-EMC Div V-15G5-1C25-K
- Part No.:
- V-15G5-1C25-K
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Limit Switches
- Package:
- Datasheet:
-
V-15G5-1C25-K.pdf
- Description:
- SWITCH SNAP ACTION SPDT 15A 250V
- Quantity:
- Payment:
- Shipping:
Inventory:2,786
Please send an inquiry. Send us your inquiry, and we will respond immediately.
- Specifications
- FAQ
- Product Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- V
- Packaging:
- Tray
- Product Status:
- Active
- Circuit:
- SPDT
- Switch Function:
- On-Mom
- Current Rating (Amps):
- 15A (AC), 100mA (DC)
- Voltage Rating - AC:
- 250 V
- Voltage Rating - DC:
- 125 V
- Actuator Type:
- Lever, Roller
- Mounting Type:
- Chassis Mount
- Termination Style:
- Quick Connect - 0.187" (4.7mm)
- Ingress Protection:
- IP40
- Features:
- -
- Operating Force:
- 240gf
- Release Force:
- 50gf
- Operating Position:
- 0.815" (20.7mm)
- Pretravel:
- 0.063" (1.6mm)
- Differential Travel:
- 0.025" (0.6mm)
- Overtravel:
- 0.030" (0.76mm)
- Operating Temperature:
- -25°C ~ 80°C
1. How to order V-15G5-1C25-K on DeepFinds Electronics?
Currently, DeepFinds Electronics only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does DeepFinds Electronics guarantee that V-15G5-1C25-K is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the V-15G5-1C25-K. All suppliers must pass our qualification reviews before they can publish their products including V-15G5-1C25-K on DeepFinds Electronics; we pay more attention to the channels and quality of V-15G5-1C25-K products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the V-15G5-1C25-K price and inventory displayed accurate?
The price and inventory of V-15G5-1C25-K fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of V-15G5-1C25-K?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the V-15G5-1C25-K we delivered, we will accept the replacement or return of the V-15G5-1C25-K only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of V-15G5-1C25-K.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as V-15G5-1C25-K pin diagram, V-15G5-1C25-K datasheet?
If you need any after-sales service, please do not hesitate to contact us.

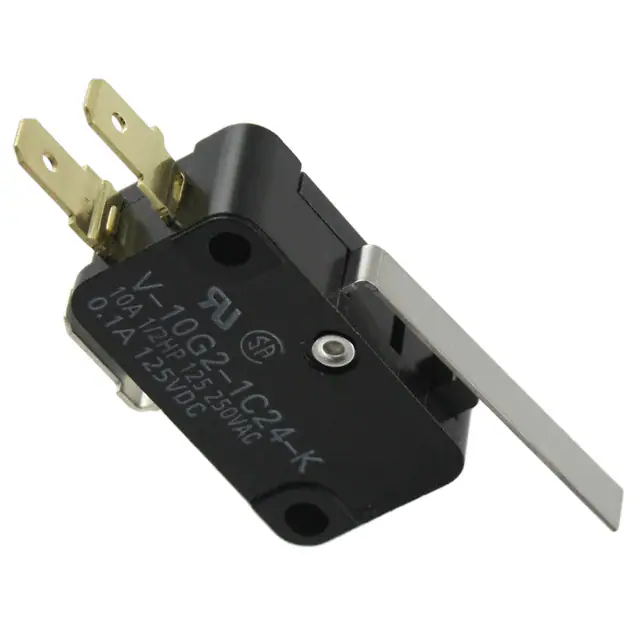

| Image |  |
 |
 |
 |
 |
| Part Number | V-10G2-1C24-K | V-10G-1C24-K | VX-015-1C23 | V-15G5-1C25-K | V-15G-3C26 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | V | V | VX | V | V |
| Packaging | Tray | Tray | Bulk | Tray | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Circuit | SPDT | SPDT | SPDT | SPDT | SPST-NO |
| Switch Function | On-Mom | On-Mom | On-Mom | On-Mom | Off-Mom |
| Current Rating (Amps) | 10A (AC), 100mA (DC) | 10A (AC), 100mA (DC) | 100mA (AC/DC) | 15A (AC), 100mA (DC) | 15A (AC), 100mA (DC) |
| Voltage Rating - AC | 250 V | 250 V | 125 V | 250 V | 250 V |
| Voltage Rating - DC | 125 V | 125 V | 30 V | 125 V | 125 V |
| Actuator Type | Lever, Straight | Round (Pin Plunger) | Lever, Roller | Lever, Roller | Round (Pin Plunger) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP40 | IP40 | IP40 | IP40 | IP40 |
| Features | - | - | - | - | - |
| Operating Force | 60gf | 100gf | 60gf | 240gf | 400gf |
| Release Force | 6.118gf | 20gf | 4.079gf | 50gf | 80gf |
| Operating Position | 0.600" (15.2mm) | 0.579" (14.7mm) | 0.815" (20.7mm) | 0.815" (20.7mm) | 0.579" (14.7mm) |
| Pretravel | 0.157" (4.0mm) | 0.047" (1.2mm) | 0.063" (1.6mm) | 0.063" (1.6mm) | 0.047" (1.2mm) |
| Differential Travel | 0.060" (1.5mm) | 0.016" (0.4mm) | 0.020" (0.5mm) | 0.025" (0.6mm) | 0.016" (0.4mm) |
| Overtravel | 0.062" (1.6mm) | 0.040" (1.0mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | 0.040" (1.0mm) |
| Operating Temperature | -25°C ~ 80°C | -25°C ~ 80°C | -25°C ~ 80°C | -25°C ~ 80°C | -25°C ~ 80°C |
