Current Sense Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2165.040NLCURR SENSE XFMR 1:40 20A SMD Pulse Electronics |
1,641 |
|
Datasheet |
PM2165.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 320 µH | - | 1:40 | - | 0.75mOhm Primary, 1.14Ohm Secondary Max | AEC-Q200 | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
PM2165.060NLCURR SENSE XFMR 1:60 20A SMD Pulse Electronics |
2,960 |
|
Datasheet |
PM2165.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 720 µH | - | 1:60 | - | 0.75mOhm Primary, 2.5Ohm Secondary Max | AEC-Q200 | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
PM2165.030NLCURR SENSE XFMR 1:30 20A SMD Pulse Electronics |
4,878 |
|
Datasheet |
PM2165.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 180 µH | - | 1:30 | - | 0.75mOhm Primary, 870mOhm Secondary Max | AEC-Q200 | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
PA1005.060NLCURR SENSE XFMR 1:60 20A SMD Pulse Electronics |
4,037 |
|
Datasheet |
PA1005.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 720 µH | - | 1:60 | - | 0.75mOhm Primary, 2.5Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.040NLCURR SENSE XFMR 1:40 20A SMD Pulse Electronics |
4,127 |
|
Datasheet |
PA1005.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 320 µH | - | 1:40 | - | 0.75mOhm Primary, 1.14Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
PA1005.030NLCURR SENSE XFMR 1:30 20A SMD Pulse Electronics |
3,526 |
|
Datasheet |
PA1005.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 180 µH | - | 1:30 | - | 0.75mOhm Primary, 870mOhm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|

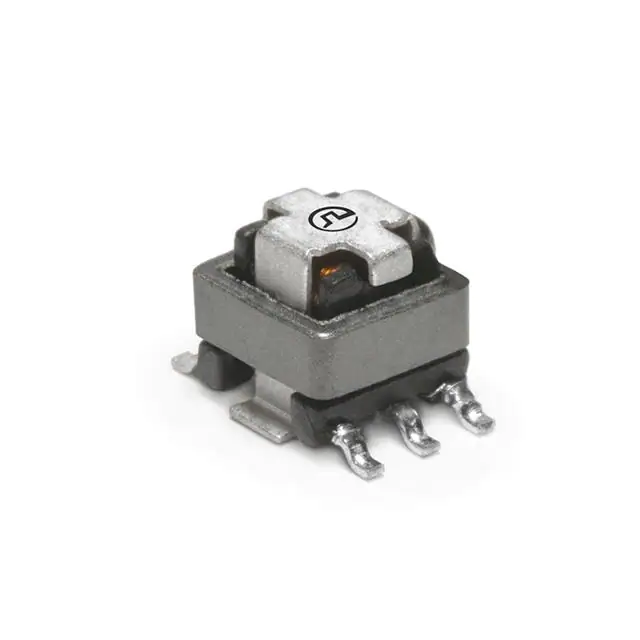

PA1005.020NLCURR SENSE XFMR 1:20 20A SMD Pulse Electronics |
4,250 |
|
Datasheet |
PA1005.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 80 µH | - | 1:20 | - | 0.75mOhm Primary, 550mOhm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
PA1005.040QNLCURR SENSE XFMR 1:40 20A SMD Pulse Electronics |
1,673 |
|
Datasheet |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 320 µH | - | 1:40 | - | 0.75mOhm Primary, 1.14Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
PE-68383NLCURR SENSE XFMR 1:1:200 SMD Pulse Electronics |
4,471 |
|
Datasheet |
PE-68XXXNL | Tube | Active | 50kHz ~ 500kHz | Invasive | - | 59.2 mH | - | 1:1:200 | - | 1.15mOhm Primary, 3.9Ohm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|

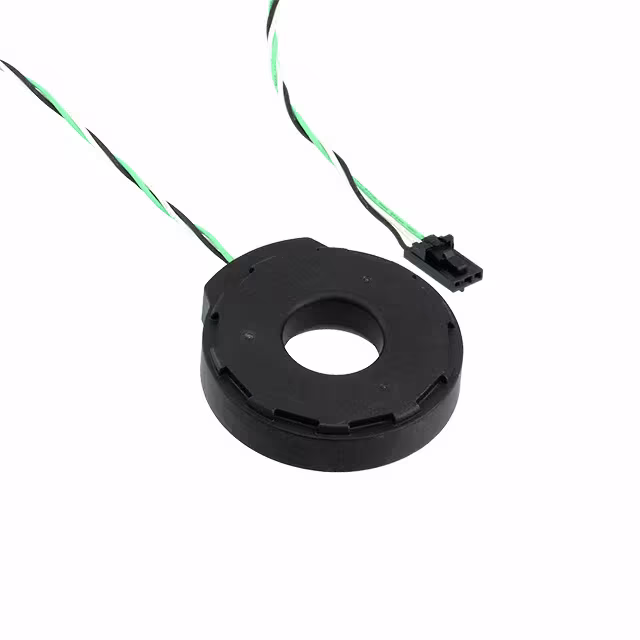

PA3838NLCURR SENSE XFMR 1KA ROGOWSKI Pulse Electronics |
4,645 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
