Current Sense Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

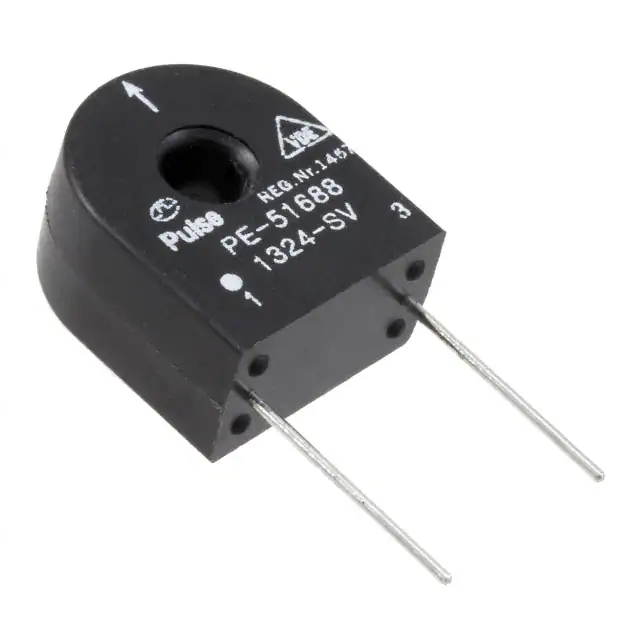

PE-51688FIXED IND 80MH TH Pulse Electronics |
2,656 |
|
Datasheet |
- | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 80 mH | - | - | - | - | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
PE-51718CURR SENSE XFMR 20A T/H Pulse Electronics |
2,554 |
|
Datasheet |
- | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 20 mH | - | - | 100CT:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-51719CURR SENSE XFMR 20A T/H Pulse Electronics |
3,803 |
|
Datasheet |
- | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 80 mH | - | - | 200CT:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63586CURR SENSE XFMR 20A T/H Pulse Electronics |
2,352 |
|
Datasheet |
- | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 5 mH | - | - | 50:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63588CURR SENSE XFMR 20A T/H Pulse Electronics |
3,352 |
|
Datasheet |
- | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 80 mH | - | - | 200:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-67050CURR SENSE XFMR 35A T/H Pulse Electronics |
4,705 |
|
- |
- | Tray | Obsolete | 10kHz ~ 200kHz | Invasive | 35 A | 5 mH | - | - | 50:1 | 700mOhm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
|
PE-67100CURR SENSE XFMR 37A T/H Pulse Electronics |
4,471 |
|
- |
- | Tray | Obsolete | 10kHz ~ 200kHz | Invasive | 37 A | 20 mH | - | - | 100:1 | 1.4Ohm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
|
PE-67200CURR SENSE XFMR 38A T/H Pulse Electronics |
3,239 |
|
Datasheet |
- | Tray | Active | 10kHz ~ 200kHz | Invasive | 38 A | 80 mH | - | - | 200:1 | 4.5Ohm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
PE-68280CURR SENSE XFMR 1:1:100 15A SMD Pulse Electronics |
1,781 |
|
Datasheet |
- | Tube | Active | 50kHz ~ 500kHz | Invasive | 15 A | 14.8 mH | - | 1:1:100 | - | 1.15mOhm Primary, 930mOhm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|

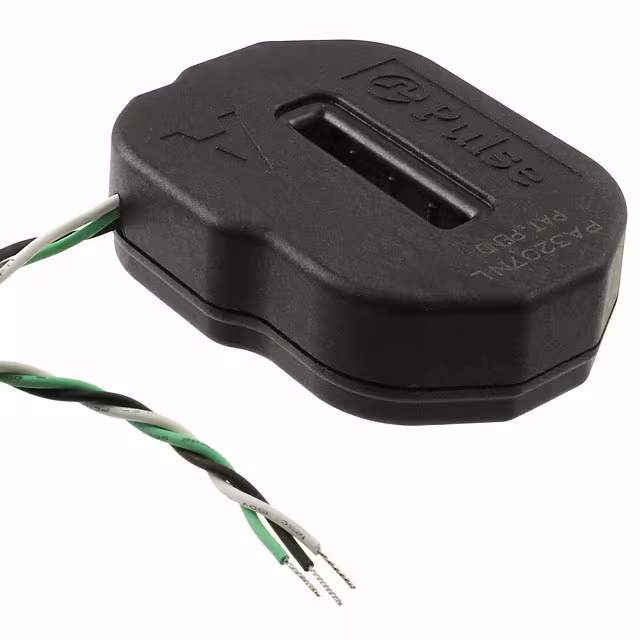

PA3207NLCURR XFMR ROGOWSKI 200A CHAS Pulse Electronics |
2,189 |
|
- |
Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | 1.86 mH | - | Rogowski Coil | - | 66Ohm Max | - | Chassis Mount | 1.437" L x 1.913" W (36.50mm x 48.60mm) | 0.559" (14.20mm) | Wire Leads |
