Current Sense Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMS9494.150NLTXFMR SENSE SMT EE8.5 30A 150:1 Pulse Electronics |
2,753 |
|
Datasheet |
- | Tape & Reel (TR) | Preliminary | 20kHz ~ 1MHz | Invasive | 30 A | 5 mH | - | 1.50:150 | 150:1.50 | 0.35mOhm Primary, 8.2Ohm Secondary | - | Surface Mount | 0.512" L x 0.413" W (13.00mm x 10.50mm) | 0.283" (7.20mm) | Gull Wing |
|
|
PE-63618NLCURR SENSE XFMR 20A T/H Pulse Electronics |
1,490 |
|
Datasheet |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100CT:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63691NLCURR SENSE XFMR 20A T/H Pulse Electronics |
3,428 |
|
Datasheet |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 180 mH | - | - | 300CT:1 | 300Ohm Primary, 11Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63586NLCURR SENSE XFMR 20A T/H Pulse Electronics |
3,672 |
|
Datasheet |
THT | Tray | Obsolete | 20kHz ~ 200kHz | Invasive | 20 A | 5 mH | - | - | 50:1 | 50Ohm Primary, 700mOhm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PB0025NLTCURR SENSE XFMR 50:1 35A SMD Pulse Electronics |
3,077 |
|
Datasheet |
PB002XNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | - | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
|
P8205CURR SENSE XFMR 1:50 SMD Pulse Electronics |
2,614 |
|
Datasheet |
P820X | Tray | Obsolete | 50kHz ~ 1MHz | Invasive | - | - | - | 1:50 | - | 6mOhm | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | - |
|
|
PB0026CURR SENSE XFMR 100:1 35A SMD Pulse Electronics |
1,962 |
|
Datasheet |
- | Tray | Obsolete | 50kHz ~ 500kHz | Invasive | 35 A | 5.6 mH | - | 100:1 | - | 2.8mOhm Primary, 1.4Ohm Secondary | - | Surface Mount | 0.784" L x 0.570" W (19.91mm x 14.48mm) | 0.394" (10.00mm) | Gull Wing |
|

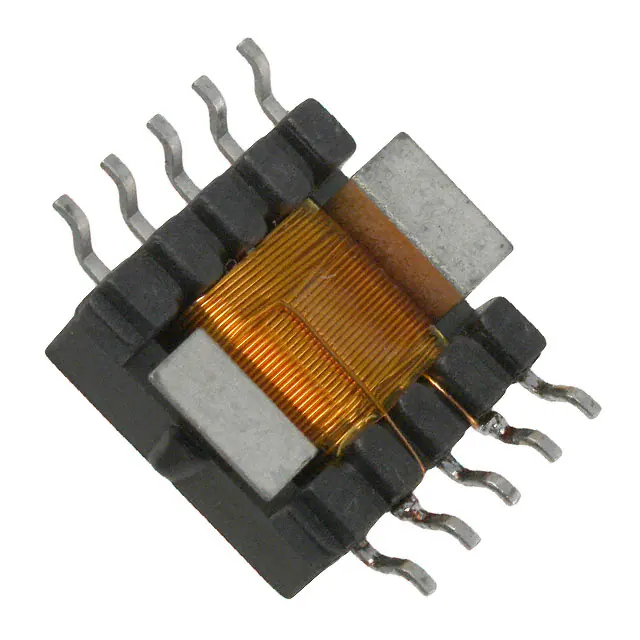

PB0027CURR SENSE XFMR 200:1 35A SMD Pulse Electronics |
4,970 |
|
Datasheet |
- | Tray | Obsolete | 50kHz ~ 500kHz | Invasive | 35 A | 22.4 mH | - | 200:1 | - | 2.8mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.784" L x 0.570" W (19.91mm x 14.48mm) | 0.394" (10.00mm) | Gull Wing |
|
|
PE-51686CURR SENSE XFMR 20A T/H Pulse Electronics |
1,964 |
|
Datasheet |
- | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 5 mH | - | - | 50:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-51687CURR SENSE XFMR 20A T/H Pulse Electronics |
1,909 |
|
Datasheet |
- | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 20 mH | - | - | 100:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
