DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD02FC16H-SSW ROTARY DIP HEX COMP 100MA 5V NKK Switches |
2,839 |
|
Datasheet |
FD02 | Tube | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FR10H-SSWITCH ROTARY DIP BCD 100MA 5V NKK Switches |
1,986 |
|
Datasheet |
FD02 | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FC10H-SSW ROTARY DIP BCD COMP 100MA 5V NKK Switches |
4,412 |
|
Datasheet |
FD02 | Tube | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
ND3FR16H-RSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
3,870 |
|
Datasheet |
ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
FR01FC16PSW ROTARY DIP HEX COMP 0.1A 5V NKK Switches |
1,103 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01KC10PSW ROTARY DIP BCD COMP 0.1A 5V NKK Switches |
2,131 |
|
Datasheet |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01KR16PSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
2,346 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
ND3KR10H-RSWITCH ROTARY DIP BCD 0.1A 5V NKK Switches |
2,377 |
|
Datasheet |
ND3 | Tape & Reel (TR) | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
ND3KR16H-RSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
3,244 |
|
Datasheet |
ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.316" (8.03mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|

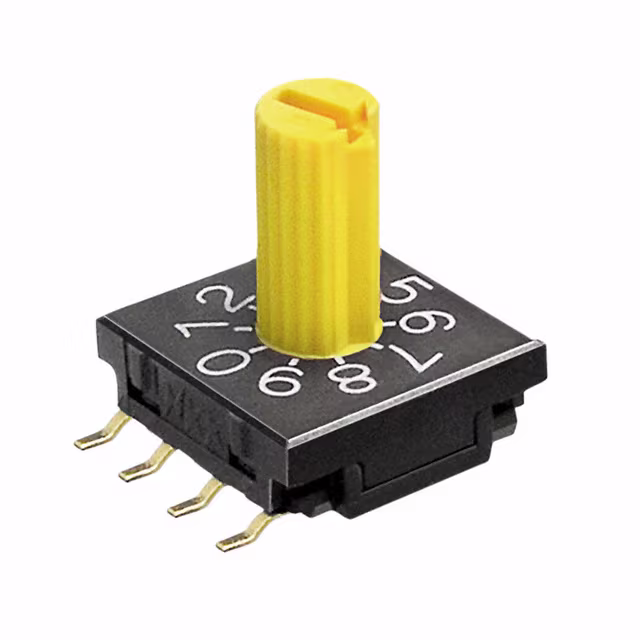

FR02KC10PSW ROTARY DIP BCD COMP 0.1A 5V NKK Switches |
1,756 |
|
Datasheet |
FR02 | Tray | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
