DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD02FC10P-RSW ROTARY DIP BCD COMP 100MA 5V NKK Switches |
1,338 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | - | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FC16P-RSW ROTARY DIP HEX COMP 100MA 5V NKK Switches |
1,741 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | - | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FR16P-RSWITCH ROTARY DIP HEX 100MA 5V NKK Switches |
3,693 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FR10P-RSWITCH ROTARY DIP BCD 100MA 5V NKK Switches |
4,241 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
FR01AR16HB-06XL-W-SSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
4,925 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FR01SR16PSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
2,893 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FD02KR10P-RSWITCH DIP NKK Switches |
4,132 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.283" (7.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02KR16P-RSW ROTARY DIP HEX COMP 100MA 5V NKK Switches |
2,981 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.283" (7.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FR01AC16PB-SSW ROTARY DIP HEX COMP 0.1A 5V NKK Switches |
4,004 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

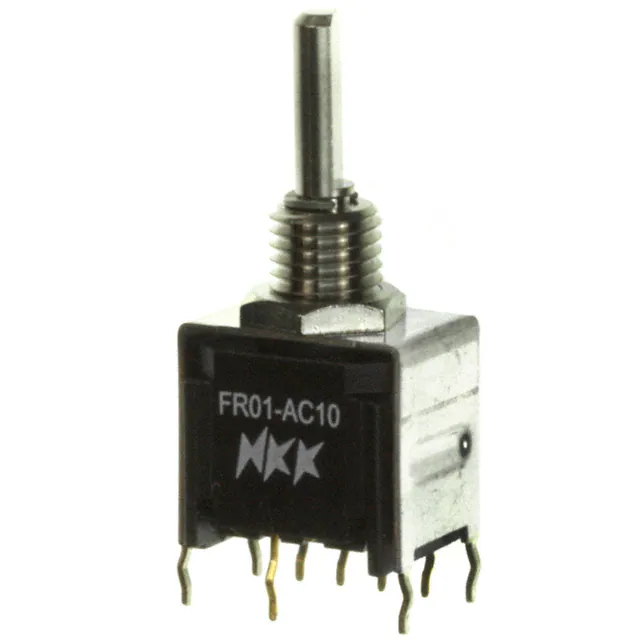

FR01AC10PBSW ROTARY DIP BCD COMP 0.1A 5V NKK Switches |
3,270 |
|
Datasheet |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
