DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FR01AR16HB-06XL-WSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
3,304 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FR01AR16HSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
1,521 |
|
Datasheet |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FD02FR10H-RSWITCH ROTARY DIP BCD 100MA 5V NKK Switches |
1,048 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FC16H-RSW ROTARY DIP HEX COMP 100MA 5V NKK Switches |
4,109 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FR16H-RSWITCH ROTARY DIP HEX 100MA 5V NKK Switches |
4,400 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.126" (3.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
FD02FC10H-RSW ROTARY DIP BCD COMP 100MA 5V NKK Switches |
4,677 |
|
Datasheet |
FD02 | Tape & Reel (TR) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush | Brass | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | - | No | - | -25°C ~ 85°C |
|
|
NDFC10PSW ROTARY DIP BCD COMP 0.1A 5V NKK Switches |
1,049 |
|
Datasheet |
ND | Tray | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.205" (5.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|

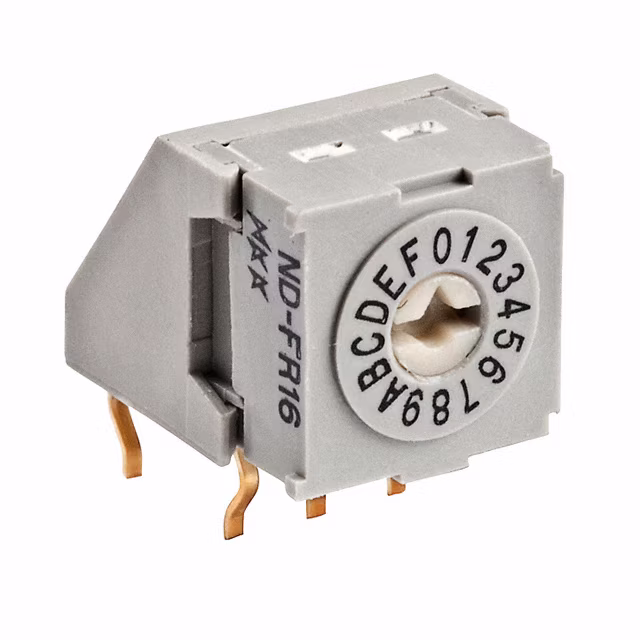

NDFR16HSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
3,490 |
|
Datasheet |
ND | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.312" (7.92mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|

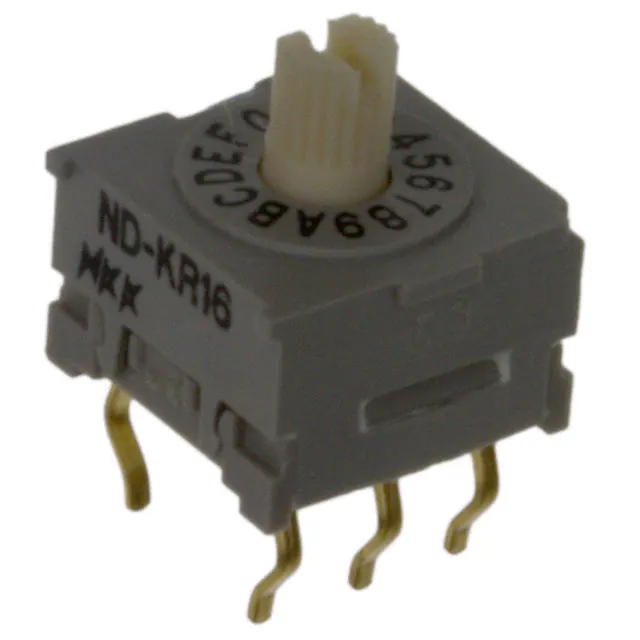

NDKR16PSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
3,243 |
|
Datasheet |
ND | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|

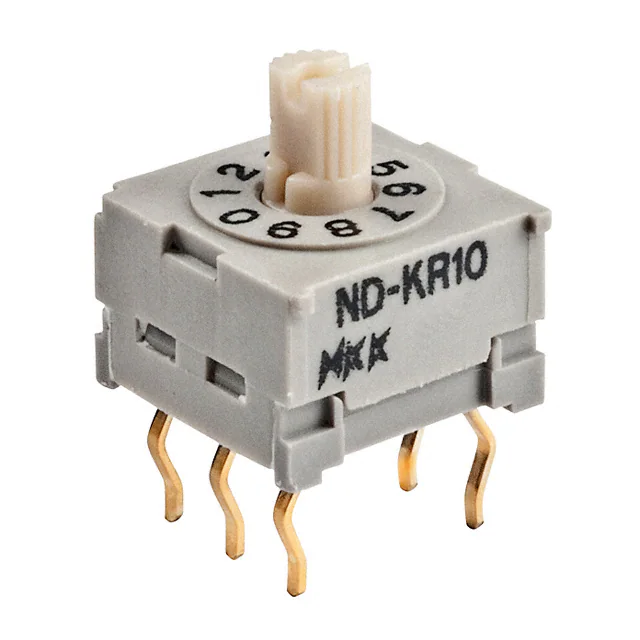

NDKR10PSWITCH ROTARY DIP BCD 0.1A 5V NKK Switches |
1,901 |
|
Datasheet |
ND | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
