DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

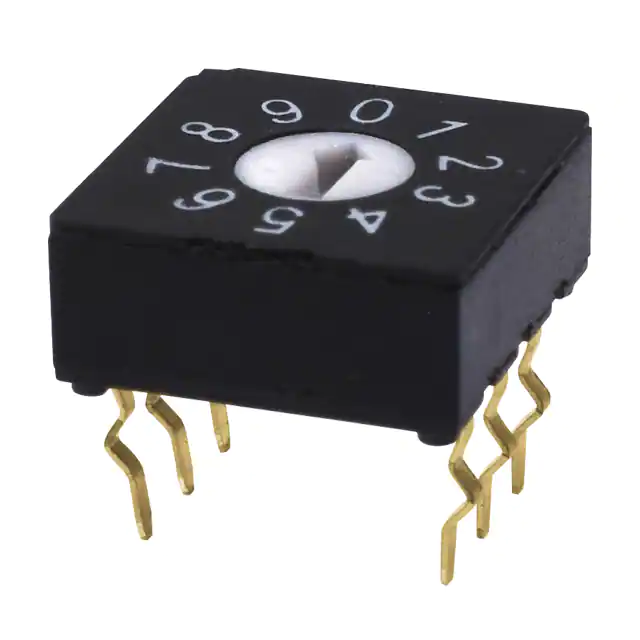

RDS-10S-1045-DSWITCH ROTARY DIP BCD 0.025A 24V Same Sky (Formerly CUI Devices) |
113 |
|
Datasheet |
RDS-1045 | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

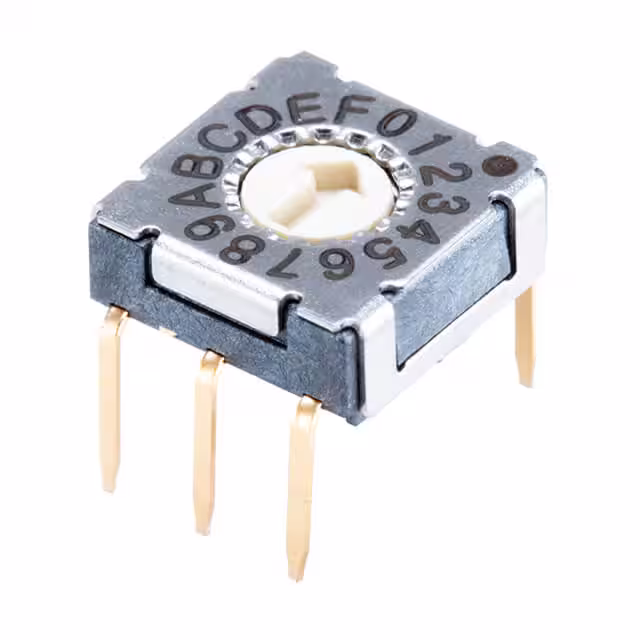

RDS-16S-7229-A-DSWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices) |
488 |
|
Datasheet |
RDS-7229-D | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

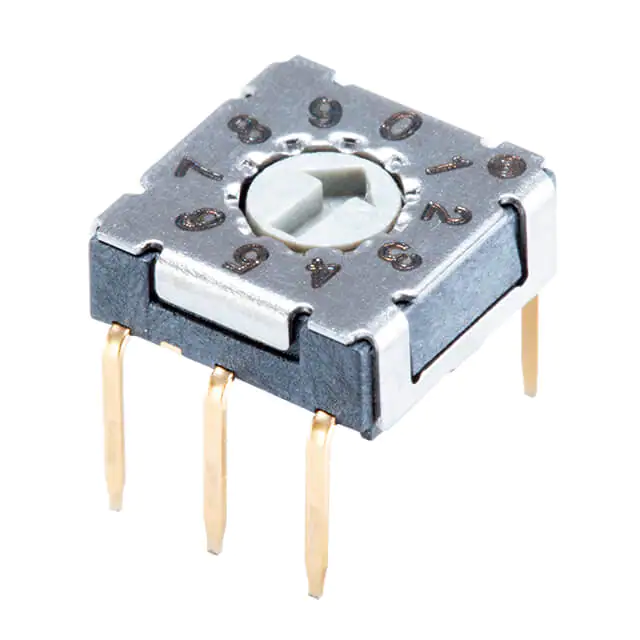

RDS-10S-7229-A-DSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
300 |
|
Datasheet |
RDS-7229-D | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

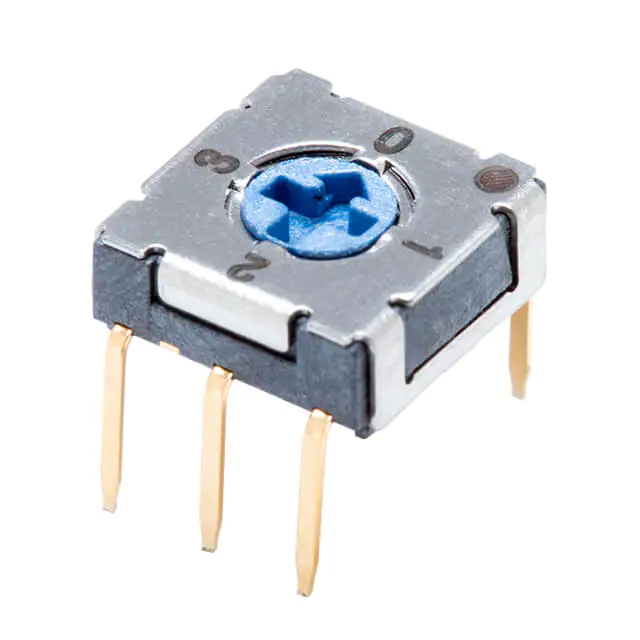

RDS-4S-7229-C-DSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
287 |
|
Datasheet |
RDS-7229-D | Tube | Active | BCD | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

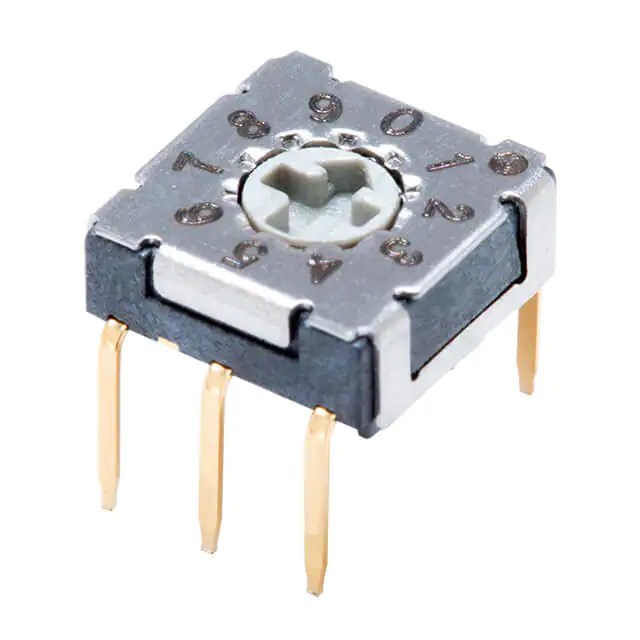

RDS-10S-7229-C-DSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
217 |
|
Datasheet |
RDS-7229-D | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

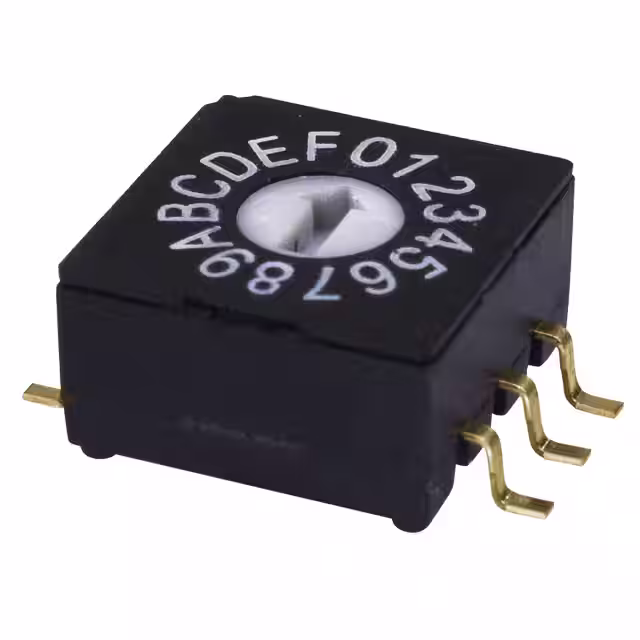

RDS-16S-1045-SMT-TRSWITCH ROTARY DIP HEX 0.025A 24V Same Sky (Formerly CUI Devices) |
832 |
|
Datasheet |
RDS-1045-SMT | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

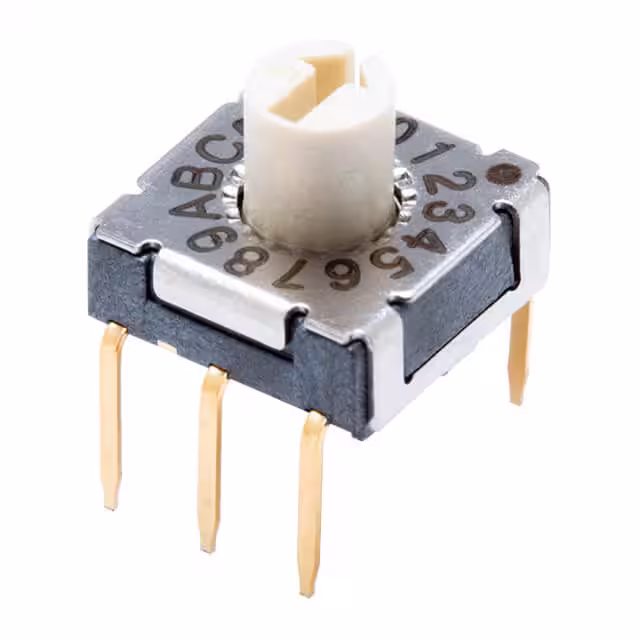

RDS-16S-7229-R-DSWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices) |
207 |
|
Datasheet |
RDS-7229-D | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

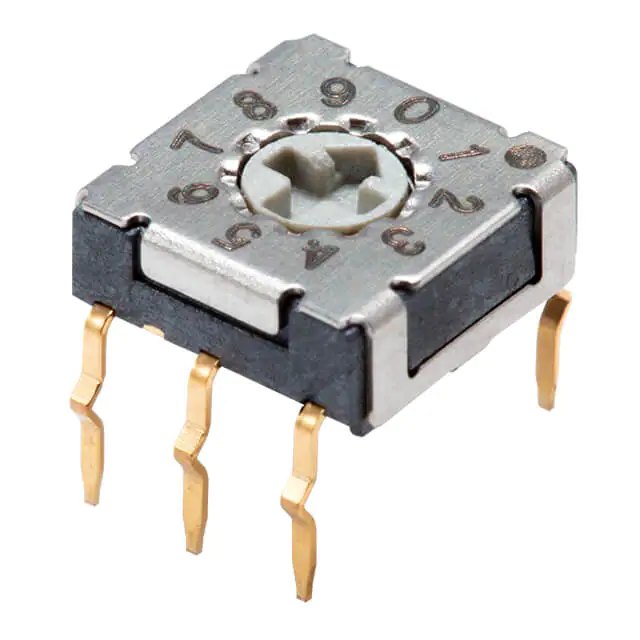

RDS-10S-7229-C-CRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
490 |
|
Datasheet |
RDS-7229-CR | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|

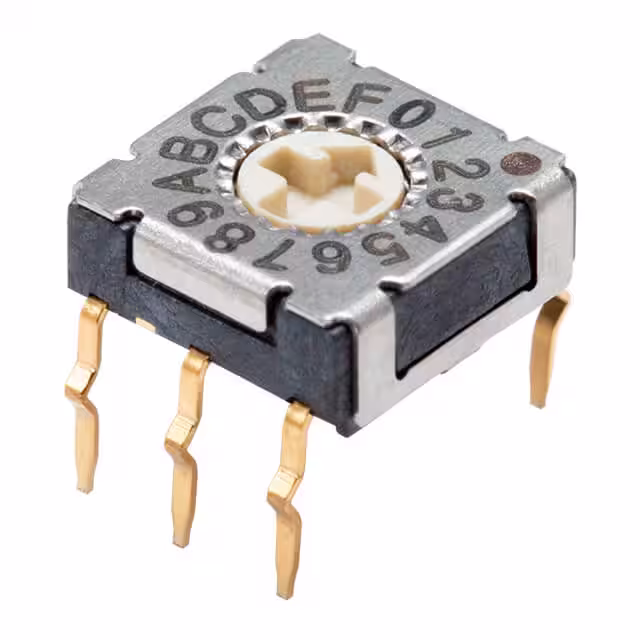

RDS-16S-7229-C-CRSWITCH ROTARY DIP HEX 0.1A 50V Same Sky (Formerly CUI Devices) |
490 |
|
Datasheet |
RDS-7229-CR | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
RDS-10S-7229-A-CRSWITCH ROTARY DIP BCD 0.1A 50V Same Sky (Formerly CUI Devices) |
440 |
|
Datasheet |
RDS-7229-CR | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
