DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

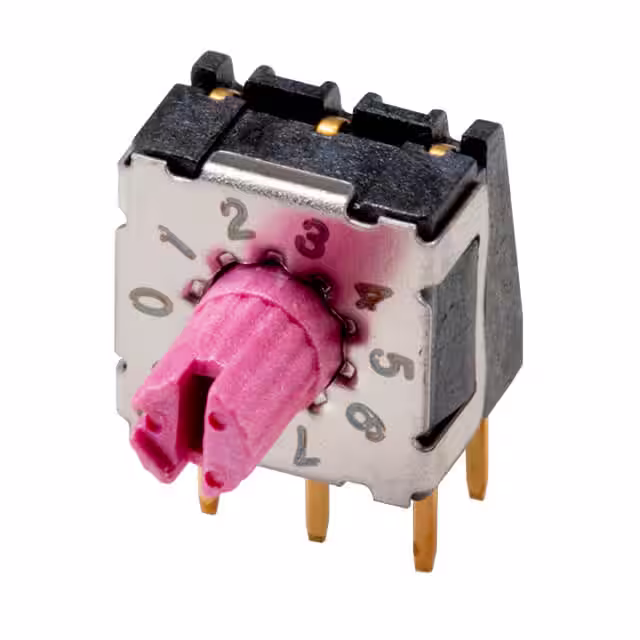

RDS-10S-74R45A-254-DSWITCH ROTARY DIP BCD 0.1A 42V Same Sky (Formerly CUI Devices) |
659 |
|
Datasheet |
RDS-74R45A-254 | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|

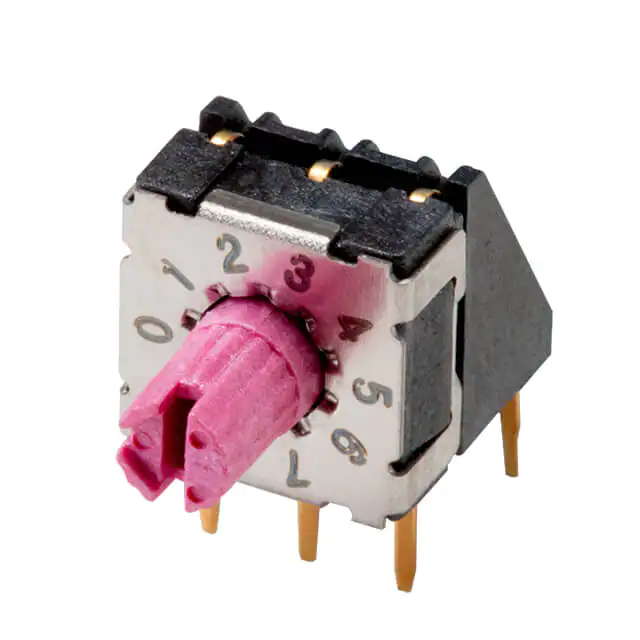

RDS-10S-74R45A-508-DSWITCH ROTARY DIP BCD 0.1A 42V Same Sky (Formerly CUI Devices) |
640 |
|
Datasheet |
RDS-74R45A-508 | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
RDS6-8S-1065-DSWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
500 |
|
Datasheet |
RDS6-1065-D | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-16S-1065-DSWITCH ROTARY DIP HEX 0.15A 42V Same Sky (Formerly CUI Devices) |
500 |
|
Datasheet |
RDS3-1065-D | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS1-8S-1065-D-67SWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
500 |
|
Datasheet |
RDS1-1065-D-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-16S-1065-DSWITCH ROTARY DIP HEX 0.15A 42V Same Sky (Formerly CUI Devices) |
495 |
|
Datasheet |
RDS6-1065-D | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS1-10S-1065-D-67SWITCH ROTARY DIP BCD 0.15A 42V Same Sky (Formerly CUI Devices) |
468 |
|
Datasheet |
RDS1-1065-D-67 | Tube | Active | BCD | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-8S-1065-73-D-67SWITCH ROTARY DIP SPST 0.15A 42V Same Sky (Formerly CUI Devices) |
500 |
|
Datasheet |
RDS7-1065-D-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS7-10S-1065-73-D-67SWITCH ROTARY DIP BCD 0.15A 42V Same Sky (Formerly CUI Devices) |
500 |
|
Datasheet |
RDS7-1065-D-67 | Tube | Active | BCD | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-16S-1065-2-DSWITCH ROTARY DIP HEX 0.15A 42V Same Sky (Formerly CUI Devices) |
200 |
|
Datasheet |
RDS6-1065-D | Tube | Active | Hexadecimal | - | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.626" (15.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
